X Axis Manual Displacement Stage , Optical Sliding Table PT110-50-100CH

PT110-50-100CH X-axis manual displacement stage, the main material of the product is hard aluminum alloy, the surface is oxidized black treatment, high precision, good wear resistance, beautiful appearance. The product uses cross ball guide rail, the use of fine-tuning differential head can carry out small adjustment, with high cost performance. It can be used in a single or multi-dimensional combination.

Product features:

• Use cross roller guide rail, smooth operation.

• The main material is aluminum alloy, the surface is oxidized black treatment, high strength, good wear resistance, beautiful appearance.

• Slightly adjust the micro feed of the measuring table.

• The fine thread pair is placed in the center of the pan table for easy operation.

• Use spring return to eliminate axial clearance.

• Mounting holes with standard spacing on the table and base for easy installation and combination, and more firm.

• Can be combined with other products into a multi-dimensional adjustment table.

Product parameters:

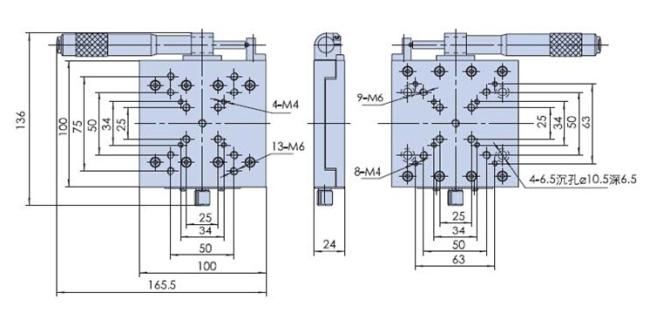

Product Dimension Map

Application scope:

The products are used in optical apparatus, measuring apparatus, inspection apparatus, semiconductor manufacturing apparatus, testing machine, microscope, conveyor, processing machine, medical machine, printing machine and others.
