125mm Travel Manual Linear Stage , Screw Displacement Table PT - SD110

Precision manual translation stage: PT-SD110

Features:

■The guide rail is a dovetail pair, which has a large bearing capacity.

■Displacement adjustment is driven by finely ground screw.

■The fine-grinding screw is placed in the center of the translation table, which is easy to operate.

■The table and base are distributed with mounting holes with standard hole spacing, which is convenient for installation and combination.

■It can be composed of multi-dimensional adjustment frame or multi-dimensional adjustment with other series of products.

Product parameters:

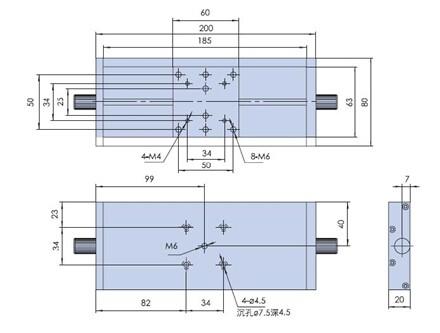

Product Dimension Map

Manual slides can be equipped with plastic handwheels, folding handwheels and aluminum alloy handwheels according to the customer's industry; manual work slides can be equipped with angle rulers, position indicators, revolution counters or gravity indicators through handwheels; The manual work slide is driven by a hand wheel and a single-head, multi-head or left and right split trapezoidal screw. The slide table and base frame can be matched with an indicator ruler and indicator plate to detect the accuracy of the workpiece. The manual module adopts a rolling structure, with low friction and high positioning accuracy, which can be used for a long time.
