R Axis Manual Rotation Stage , Fine Trimming Rotating Platform PT-R38/R60/R80/R100/R125

This manual rotary table is composed of three parts: the guiding mechanism, the feeding mechanism and the locking mechanism, which is convenient for precise positioning adjustment and can be used for inspection, assembly, processing or other fixtures. The guiding mechanism of this product is a double bearing rolling guide, the feeding mechanism is a differential head, and the locking mechanism is fixed on the side of the stop screw. It has good motion characteristics during rotation, and the key indicators such as end jump and radial jump can reach the international level of similar products. The product is suitable for fields with higher requirements for manual angle adjustment.

Features:

Key indicators such as high-precision collar guidance and end jumping have reached the international level;

Ultra-thin structure, compact and exquisite;

Can be used with other series of products;

Table size: Φ38/Φ60/Φ80/Φ100/Φ125 optional;

Micrometer head drive, the coarse adjustment range is 360°, and the fine adjustment range is ±5°;

Load 1~5kgf available;

The weight of 00.09~0.85kg can be selected.

Product parameters:

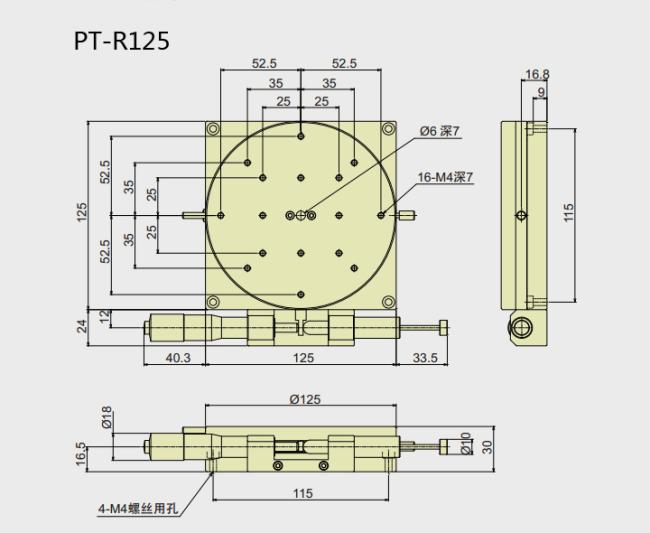

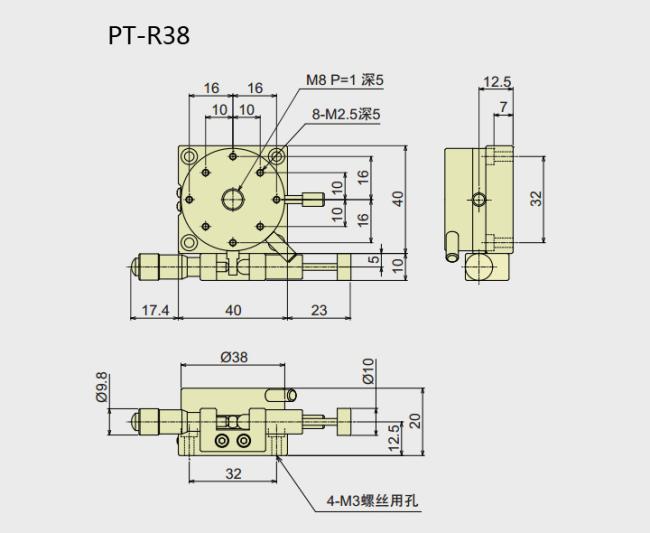

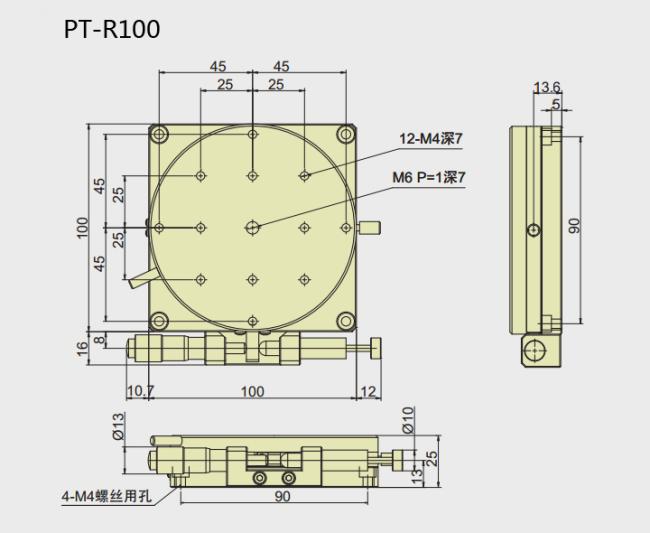

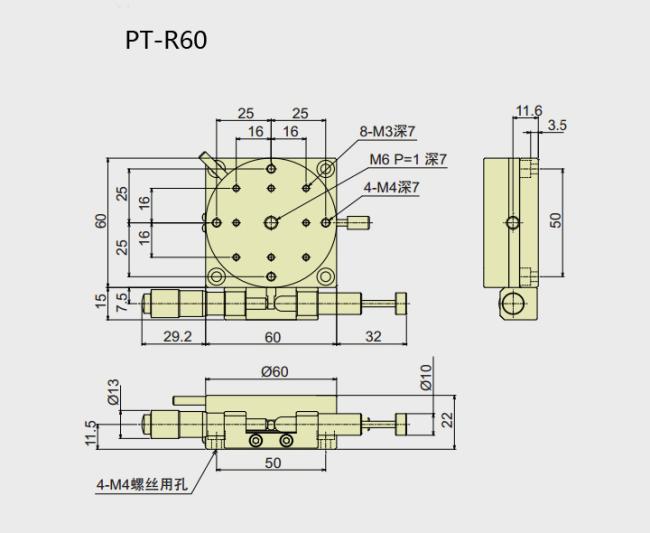

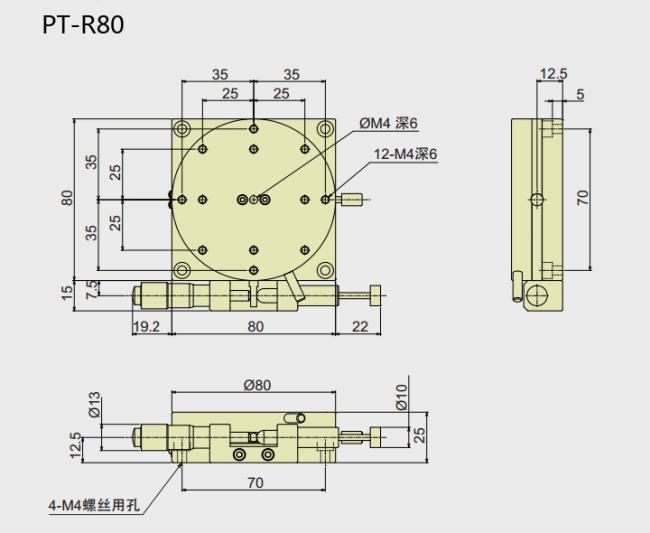

Product Dimension Map:
