Aluminum Lifting Table , Z Axis Adjustment Stage , Manual Lift Stage PT - SD1711M

Product Description:

Aluminum lifting platform is a new type of lifting platform, using 16 arm high stability design, than the original lifting platform has the characteristics of light weight, large bearing capacity, large stroke. At the same time, the problem of easy disconnection of the original lifting platform handwheel is avoided.

Product Specifications:

◆ Item Number: GCM-1711MP

◆ Travel Range: 55mm

◆ Actuator Type: Precision Whet Thread

◆ Platform: 100mm x 140mm

◆ Material – Finish: Aluminum Alloy - Black-Anodized

◆ Load Capacity: 20Kgs

How effective is the use of aluminum lifting platform

The use effect of aluminum lifting platform can be assured many times. There are several reasons for this. The first is that this type of lifting equipment is of excellent quality and suitable for some places with narrow space. Only with better quality can it bring better results in actual use. Secondly, in terms of design, in addition to excellent quality, the appearance of aluminum lifting platform is also very beautiful. Due to the characteristics of aluminum, it is more convenient and easy to operate.

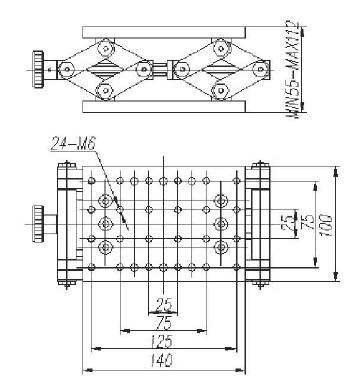

Product Dimension Map:
