10mm Travel Z Axis Manual Scissor Lift Crossed Roller Bearing Differential Head
Z-Axis Manual Lab Jack , Precise Differential Head Lifting Slide Table PT-SD401
Precision manual lifting platform: PT-SD401
Precision cross guide manual lifting platform PT-SD401, the main material of the product is made of high strength aluminum alloy, the surface is oxidized black processing, the cross roller guide displacement structure, differential head drive, has the characteristics of high precision, small, smooth, high rigidity limited linear movement, so it is widely used in microelectronics, optical communication, Colleges and universities, fiber laser and other fields.
Product features:
★ High quality cross roller guide rail, smooth lifting, high precision, large load bearing.
★ Micrometer head indirect drive, reversing mechanism will be horizontal drive into vertical drive, the lifting adjustment becomes more easy to adjust.
★ Lateral clearance adjustment structure to ensure smooth and comfortable movement, so that the yaw, pitch straightness to achieve better.
★ Micrometer head drive, quantitative reading.
★ Lifting platform spring reset, eliminate empty return.
★ The base and the table are connected with standard hole pitch hole, convenient to connect with other high precision displacement table, composed of high precision multi-dimensional adjustment frame.
Product Specifications:
|
Item Number |
PT-SD401 |
|
Travel Range |
10mm |
|
Platform |
40mm x 40mm |
| Actuator Type | Micrometer Head |
|
Travel Guide |
Crossed Roller Bearing |
|
Minimum Readout |
0.01mm |
| Positional Accuracy | 5μm |
| Minimum Adjust Distance | 2μm |
| Parallelism | 50μm |
| Straightness | 3μm |
| Driving Parallelism | 30μm |
|
Material – Finish |
Aluminum Alloy - Black-Anodized |
|
Load Capacity |
10Kgs |
|
Weight |
0.48kgs |

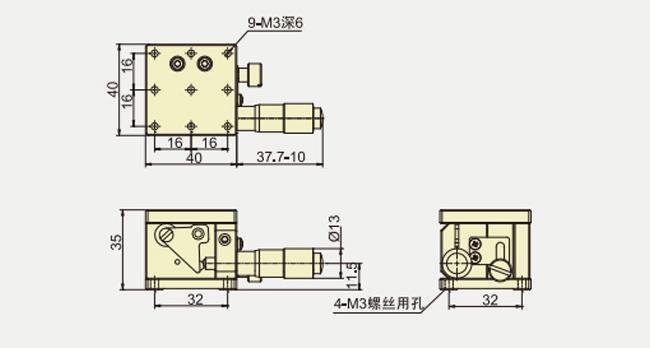

Product Dimension Map:
