Heavy Duty Lifting Platform , Precision Manual Lift SlideTable PT - SD412

In order to meet the different needs of different customers, we adjust the length and size of platform stroke and table, such as a series of products, and the platform can be combined into four dimensional, five dimensional, six dimensional multi-dimensional platform, to meet the adjustment of different directions and different angles.

Product features:

1. Scissor lifting mechanism, compact structure, large stroke, strong load capacity;

2. Using fine grinding screw drive to ensure absolutely smooth and comfortable movement, with locking;

3. The main material is high strength aluminum alloy, surface oxidation black treatment, good durability, beautiful appearance;

4. The upper and lower sides of the porous design, strong applicability, can be used as mounting surface, equipped with locking handwheel, safe and reliable;

5. Both the base and the table are equipped with connecting holes with standard hole spacing, which can be combined with other displacement tables to form multi-dimensional adjustment tables.

Product Specifications:

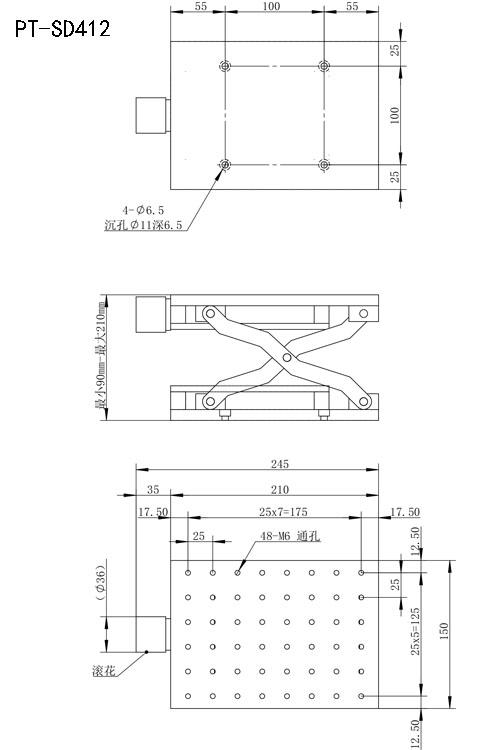

Product Dimension Map:
