320mm×200mm Vertical Translation Stage Fine Grinding Lead Screw Drive
Precision Manual Lifting Table , Lift Slide Table , Manual Lab Jack PT - SD413
Our product design is to stand on the customer's position, according to the use of different customers to design different products, it is very convenient to use.
Our delivery time is shorter, after-sales maintenance is faster, the company has professional after-sales service personnel, quick response, so that you have no worries.
Precision manual lifting table: PT-SD413
Product features:
◆ The main material is made of high strength duralumin, the surface is anodized and blackened.
◆ Using fine grinding screw drive to provide lifting, smooth movement.
◆ Spring reset, eliminate empty return.
Table with standard connection hole, easy to fix connection.
Product Application:
◆ Used for manual adjustment with large stroke and high load.
|
Model |
PT-SD413 |
|
Platform size |
320mm×200mm |
|
Driving mode |
Fine grinding lead screw drive |
|
Lifting stroke |
200mm |
|
Minimum adjustment |
10μ |
|
load bearing |
50kg |
|
Dead weight |
6.7kg |
|
Material Science |
6061 duralumin |
|
Surface treatment |
Anodizing blackening |

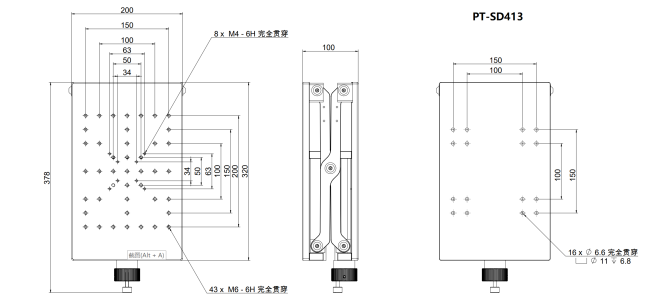

Product Dimension Map:
