65mm×65mm Manual Goniometer Stage
Small Manual Angle Rotation Adjustment Displacement Stage Goniometer PT - SD306
Manual Angle platform is used to rotate the Angle in the process of displacement adjustment. It is used to achieve positioning by moving the rotating guide rail to the specified position.
Product features:
Provide rotation Angle adjustment, compact structure, saving space.
Designed in pairs, the rotation center is the same point after superposition, which can carry out orthogonal combined movement and concentric rotation adjustment of the two axes.
Worm drive, V guide + ball guide, comfortable movement, precision and reliability.
Hand wheel lock, safe and reliable.
The bottom has standard connection hole, can be used in combination with other products.
Application field:
Ultra-precision laser processing, ultra-precision 3D scanning measurement, automatic measuring instruments and testing equipment, industrial automation and other fields.
Product parameters:
|
Model |
PT-SD306 |
|
Platform Size |
65mm×65mm |
|
Angle range |
±10° |
|
Height of turning center |
75 mm |
|
Deviation of turning center |
φ0.05 mm |
|
Driving mode |
Worm drive |
|
Guide form |
V-guide + ball |
|
Driving position |
Central drive |
|
Minimum scale |
1° |
|
Minimum reading |
6′ |
|
Minimum adjustment |
(Reference) 3″/ 10 subdivision |
|
Pendulum |
80″ |
|
tilt |
60″ |
|
Load bearing |
10kg |
|
Dead weight |
0.52kg |
|
Material |
Aluminium alloy |
|
surface treatment |
anodic oxidation |

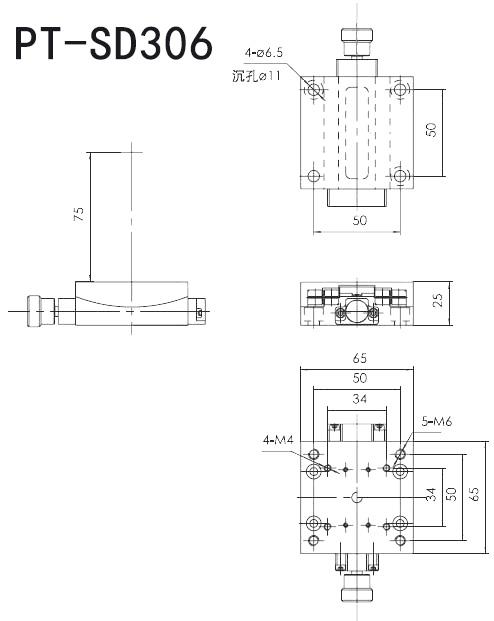

Product Dimension Map:
