Electric Motorized Linear Stage Motorized XYZ Stage Travel Range 50 - 500mm

Price Negotiable

Price: Negotiable

MOQ: 1piece

Delivery Time: 1-2 weeks

Brand: PDV

Product Description

PT-GD140G Series XYZ Electric Displacement Table ,Travel Range 50 - 500mm

Can choose different stroke combination three-dimensional, X Y Z three direction movement.

Product features:

High precise ball screw provides high-performance.

Low bearing capacity and a proper travel range were required for this model because of the type of linear ball bearing.

XY, XZ and XYZ stages can be stacked by 2 or 3 pieces of this model.

Original position and limit switches at both ends which can supply the precision positioning and protection.

Product specification:

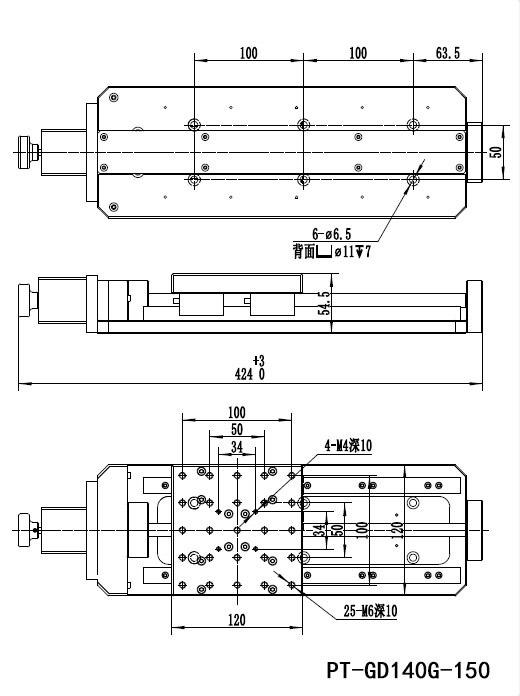

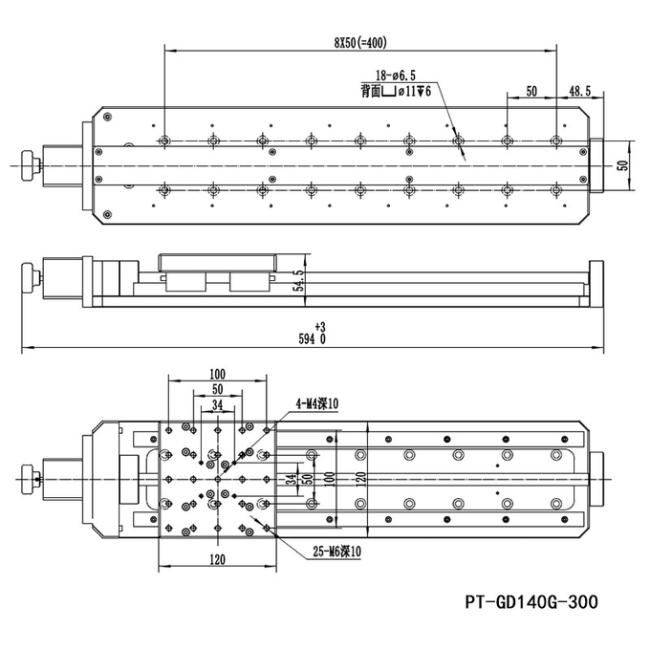

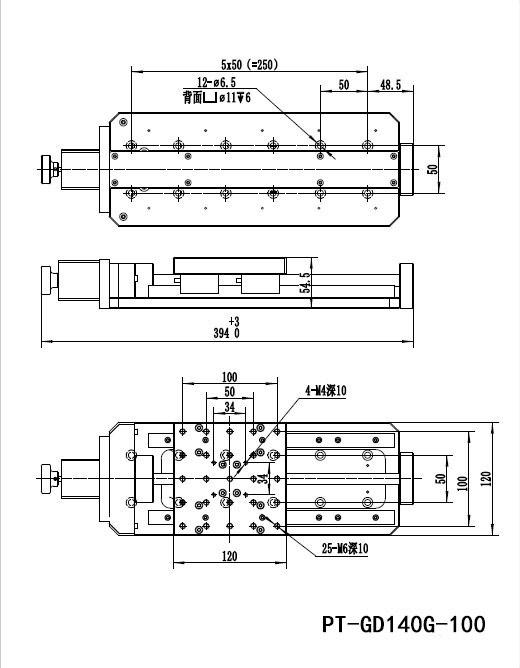

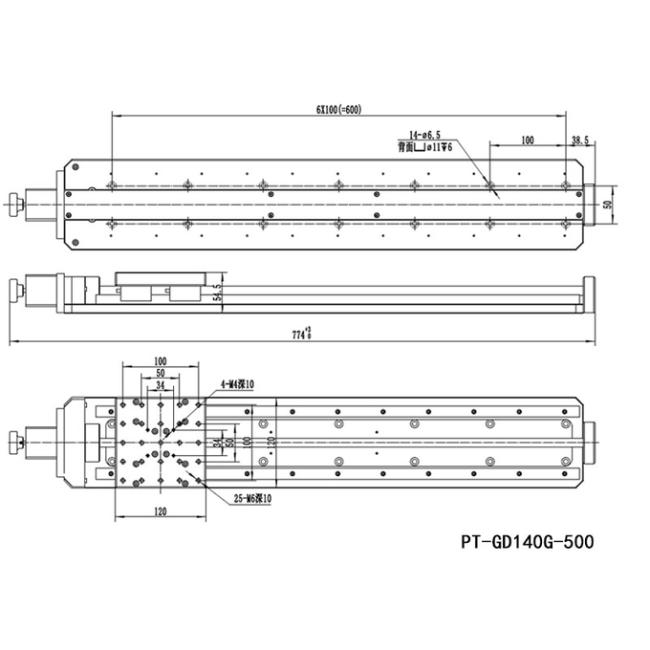

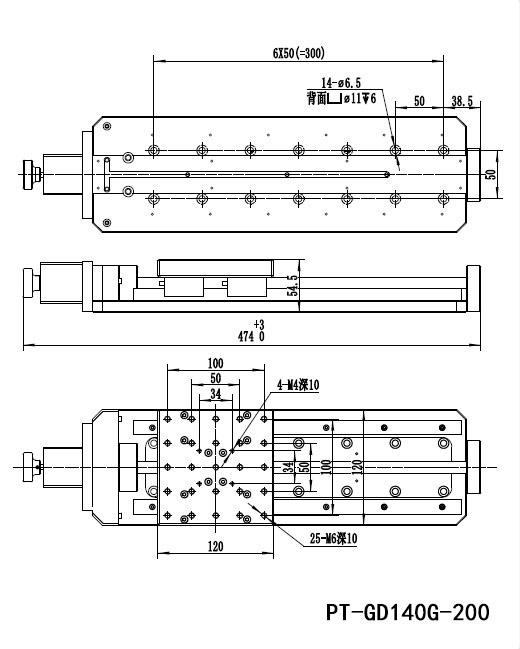

Model Number		PT-GD140G-50	PT-GD140G-100	PT-GD140G-150	PT-GD140G-200	PT-GD140G-300	PT-GD140G-400	PT-GD140G-500
Structure	Travel Range(mm)	50	100	150	200	300	400	500
	Platform(mm)	120x120	120x120	120x120	120x120	120x120	160x160	160x160
	Screw Specifications	Precise Ball Screw (4mm of guide)					Ball Screw (5mm of guide)
	Travel Guide	High Precision Linear Slide Rail
	Stepper Motor	42(1.8°)					57(1.8°)
	Material	Aluminum Alloy
	Surface Preparation	Black-Anodized
	Load Capacity(Kg)	30					50
	Weight(Kg)	2.8	3.4	4.5	5.2	6.3	7.2	8.3
Accuracy	8 Subdivision Resolution(μm)	2.5					3.125
	Max Velocity	20mm/sec			40mm/sec		50mm/sec
	Repeatability(μm)	5
	Absolute Accuracy(μm)	8
	Straightness(μm)	5		6					8
	Moving Parallelism(μm)	10		15					20
	Pitching	25"		50"			60"
	Yawing	20"		25"			30"
	Backlash(μm)	2
	Lost Motion(μm)	3			5
Accessory		Installing Braking Function (Optional)
		Installing Grating Ruler (Optional)
		Reloading Servo Motor (Optional)
		Installing Dirt Shroud (Optional)
