Aluminium Alloy Miniature Precision Motorized Lab Jack Lift Experimental
Experimental Instrument Miniature Precision Lifting Table PT56-15
Product Description:
The micro precision lifting table adopts linear stepping motor driver, high-precision square guide rail guidance, exquisite structure, and realizes ultra-small size, large load, high precision and long life.
The standard installation space can form a spatial multi-dimensional motion control system, which is directly connected with the controller.
Features: high precision and small volume.
Place of use: optical cavity, vacuum environment, small space. Imported high-quality grating ruler with small positioning accuracy.
|
Model |
PT56-15 |
|
Travel(mm) |
15 |
|
Lead screw(mm) |
0.3 |
|
material |
aluminium alloy |
|
surface treatment |
Hard oxidation |
|
guide |
Imported guide rail |
|
Maximum speed (mm/s) |
2 |
|
Resolution (8 subdivisions)(μm) |
0.188 |
|
Repeat positioning accuracy(μm) |
2 |
|
Drive motor |
20 linear stepping motor |
|
Step angle |
1.8° |
|
Center load(kg) |
1 |
|

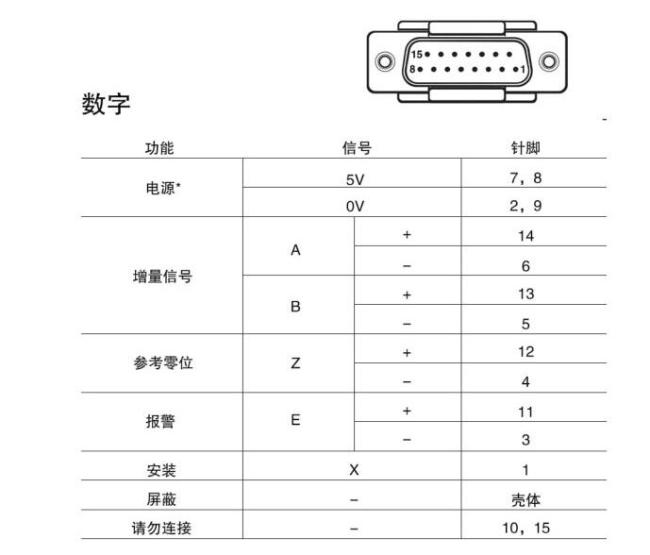

Feedback signal |
—— |
|
Positioning accuracy(μm) |
—— |
|
control mode |
open loop |

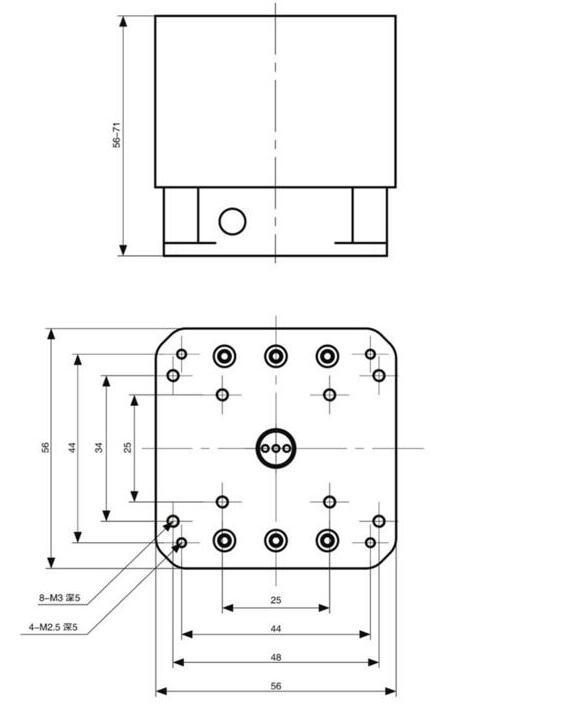

Product Dimension Map:
