30mm Travel Aluminium Alloy Electric Lifting Table Hydraulic Lab Jack Multifunction
20 Linear Stepper Motor Drive Instrument Miniature Precision Lifting Table PT56 - 30
Product Description:
Automatic lifting platform has always been large products, suitable for laboratory use of small or miniature lifting platform, there are many inconvenience in use, our company in line with the purpose of customer service, specially designed a miniature electric lifting platform.
The miniature electric lifting platform uses multiple groups of linear bearings and adopts over-positioning structure to ensure precise and reliable guidance. T type screw lifting structure of worm gear and worm deceleration is used as driving mechanism to ensure that the lifting platform can reliably self-lock at any position and under any circumstances. The size is optional and flexible to meet the needs of different users.
Features: high precision and small volume.
Place of use: optical cavity, vacuum environment, small space. Imported high-quality grating ruler with small positioning accuracy.
|
Model |
PT56-30 |
|
Travel(mm) |
30 |
|
Lead screw(mm) |
0.3 |
|
material |
aluminium alloy |
|
surface treatment |
Hard oxidation |
|
guide |
Imported guide rail |
|
Maximum speed (mm/s) |
2 |
|
Resolution (8 subdivisions)(μm) |
0.188 |
|
Repeat positioning accuracy(μm) |
2 |
|
Drive motor |
20 linear stepping motor |
|
Step angle |
1.8° |
|
Center load(kg) |
1 |
|
Feedback signal |
—— |
|
Positioning accuracy(μm) |
—— |
|
control mode |
open loop |

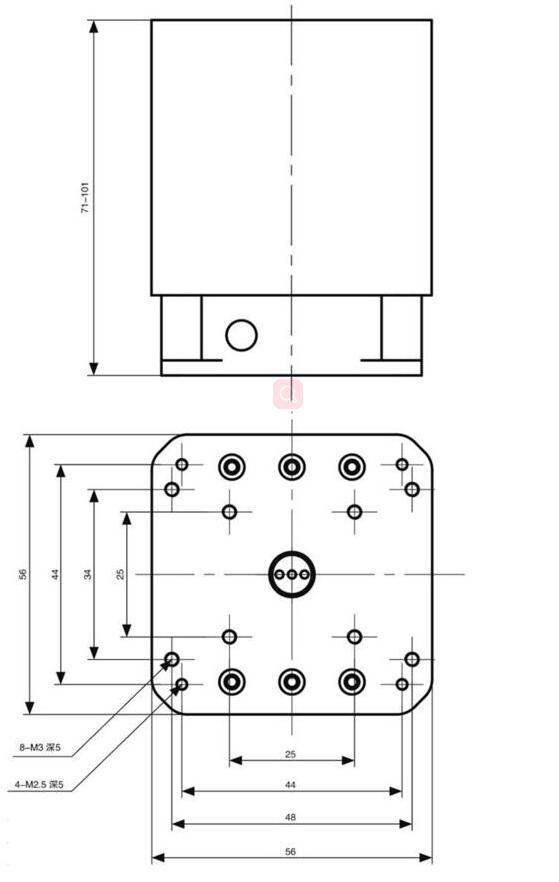

Product Dimension Map:
