Hand Sliding Manual Linear Stage Large Table Top Load 100kg Displacement

Price Negotiable

Price: Negotiable

MOQ: 1piece

Delivery Time: 1-2 weeks

Brand: PDV

Product Description

Hand Sliding Large Table Top Load 100kg Displacement Stage Manual Linear Stage

PDV offers high precision electric platform, high precision manual platform, optical plate, microscope bracket, long working distance objective, microscope lighting source, optical bench products for laboratory light path building.

we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.

Matters needing attention:

We're glad you're working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales, so as to avoid your purchase of products, because the parameters are inconsistent with your use requirements, delay your schedule. We thank you again for your support.

Product specification:

Screw rod specification: guide screw

Lead: 10mm

Smooth bar diameter: 20mm

Repeated positioning accuracy: ± 0.03mm

High precision and heavy load

Model Number	Platform Size	Bottom length	Trip	Load Capacity

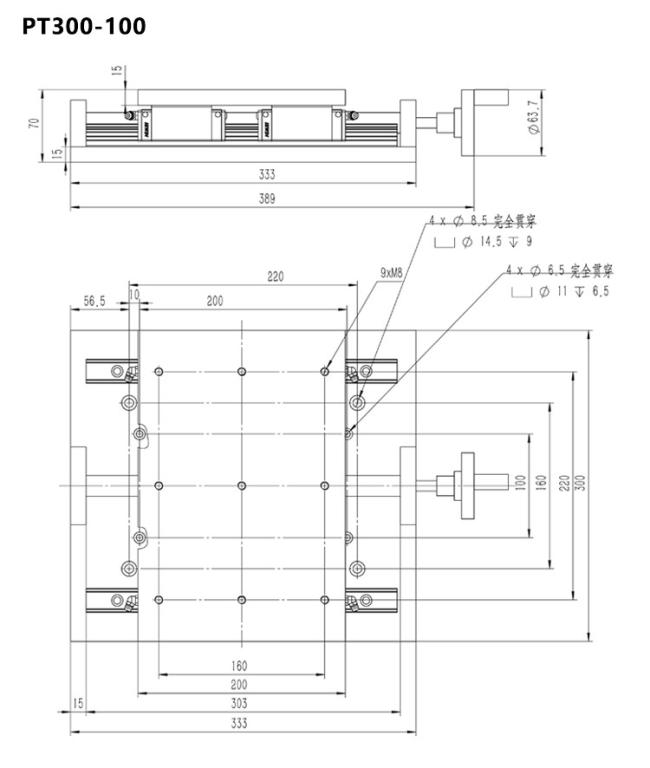

PT300-100	200*300MM	333MM	100MM	80KG

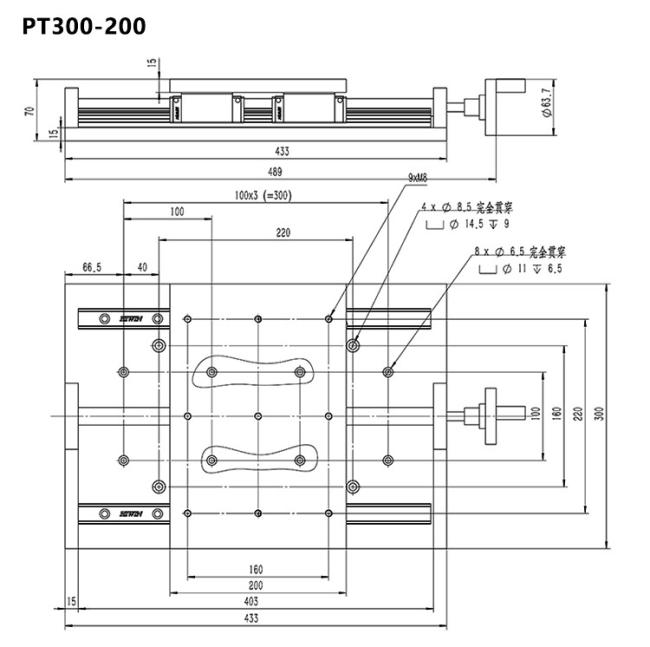

PT300-200	200*300MM	433MM	200MM	100KG
PT300-300	200*300MM	533MM	300MM	120KG

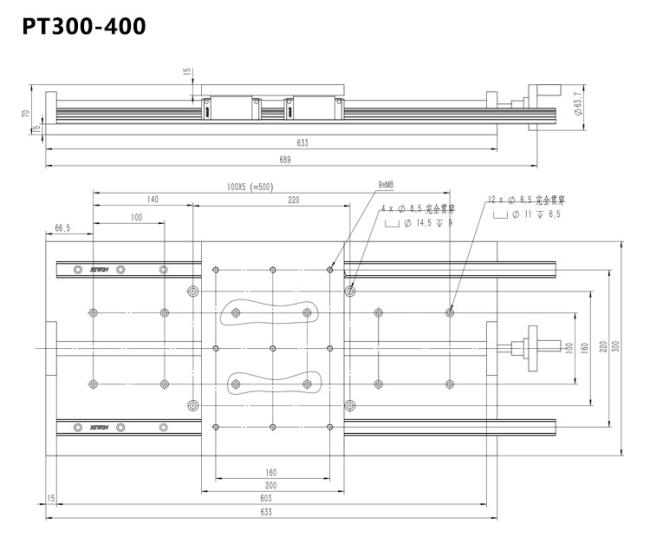

PT300-400	200*300MM	633MM	400MM	140KG

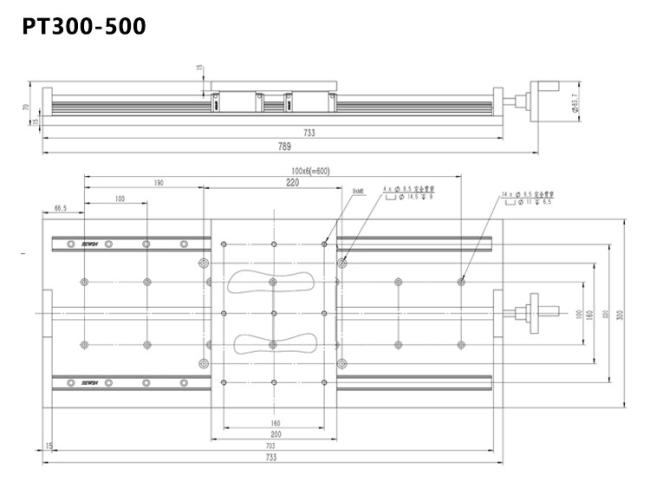

PT300-500	200*300MM	733MM	500MM	150KG

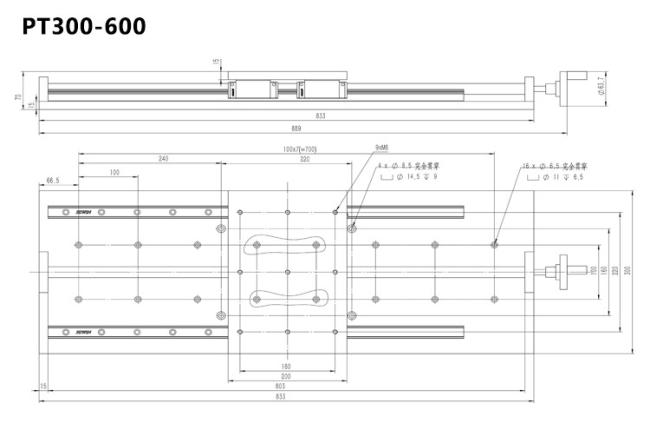

PT300-600	200*300MM	833MM	600MM	150KG

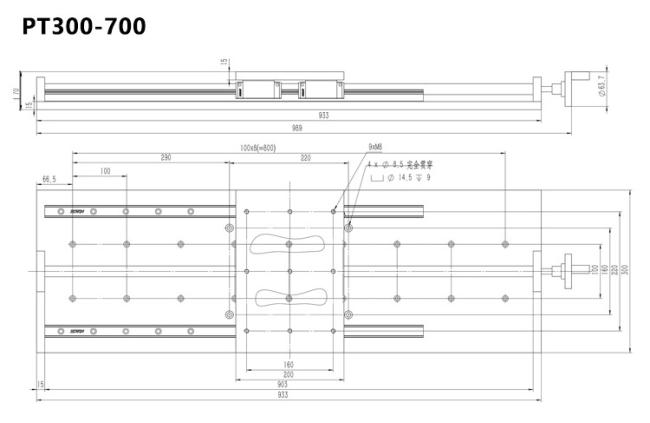

PT300-700	200*300MM	933MM	700MM	150KG

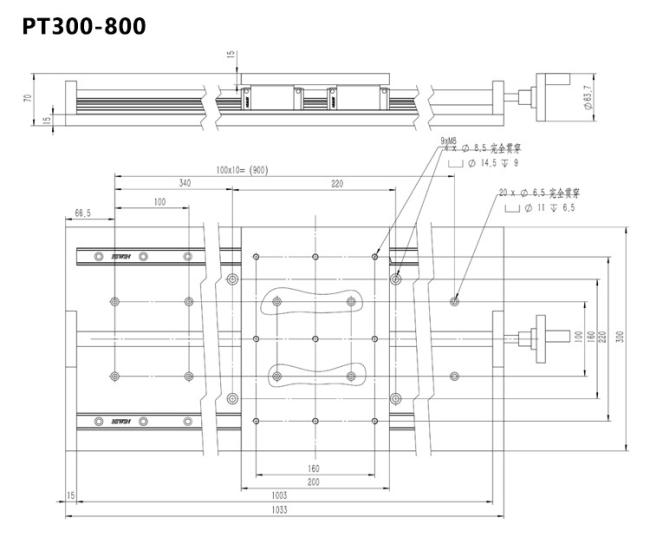

PT300-800	200*300MM	1033MM	800MM	150KG

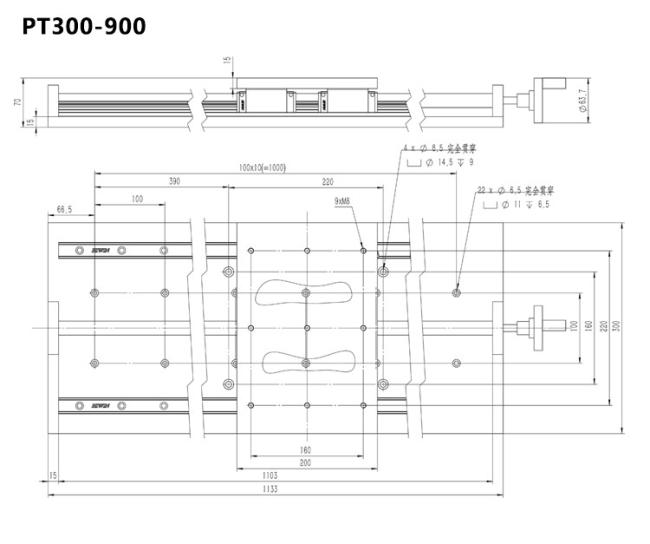

PT300-900	200*300MM	1133MM	900MM	150KG

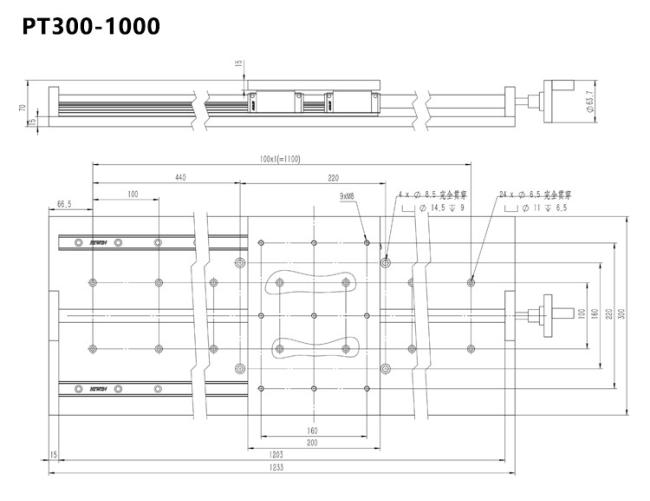

PT300-1000	200*300MM	1233MM	1000MM	150KG

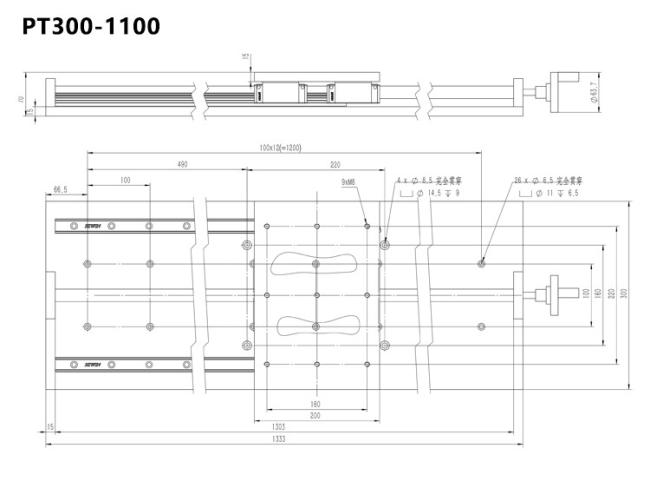

PT300-1100	200*300MM	1333MM	1100MM	150KG

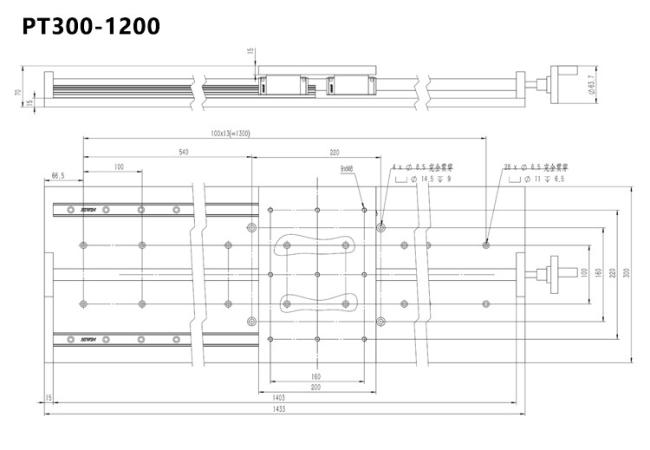

PT300-1200	200*300MM	1433MM	1200MM	150KG

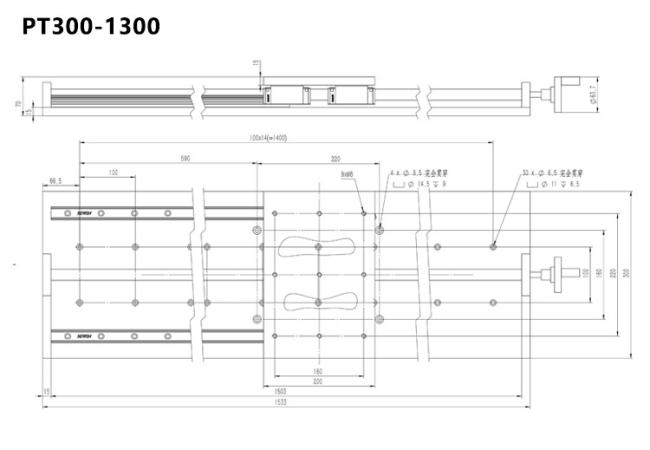

PT300-1300	200*300MM	1533MM	1300MM	150KG

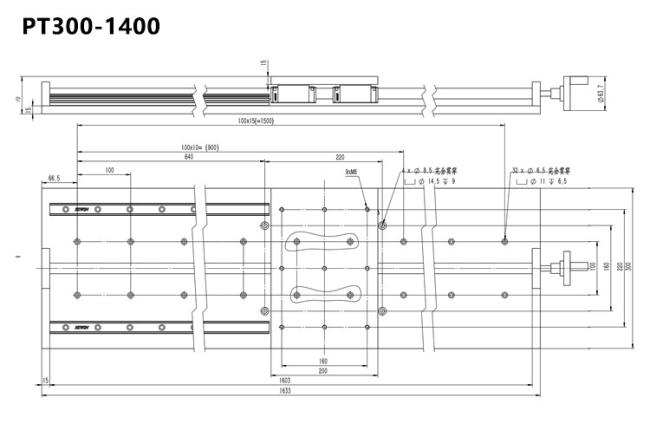

PT300-1400	200*300MM	1633MM	1400MM	150KG

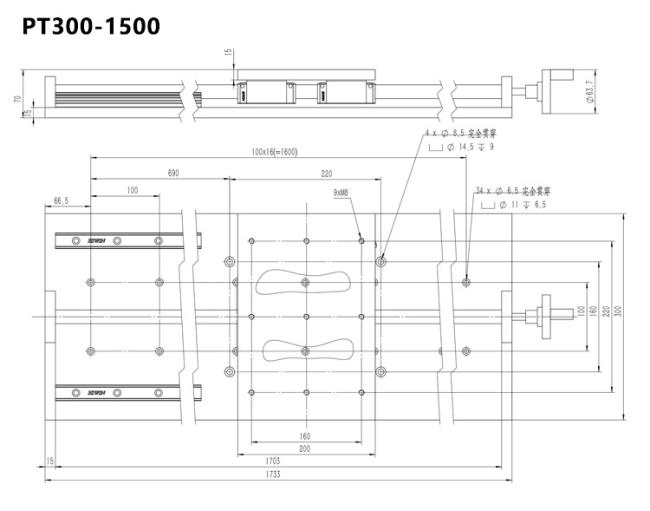

PT300-1500	200*300MM	1733MM	1500MM	150KG

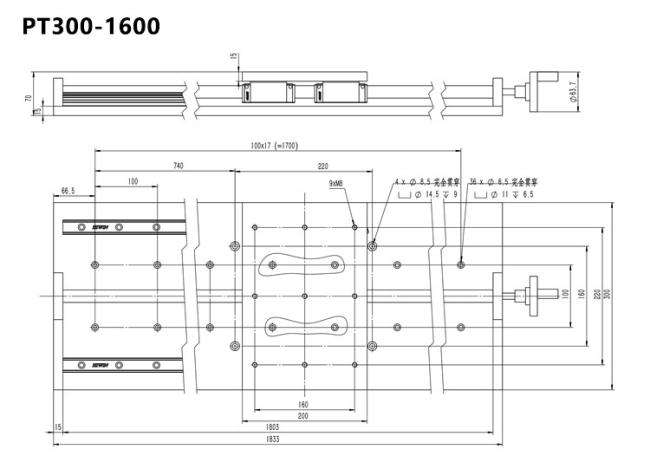

PT300-1600	200*300MM	1833MM	1600MM	150KG

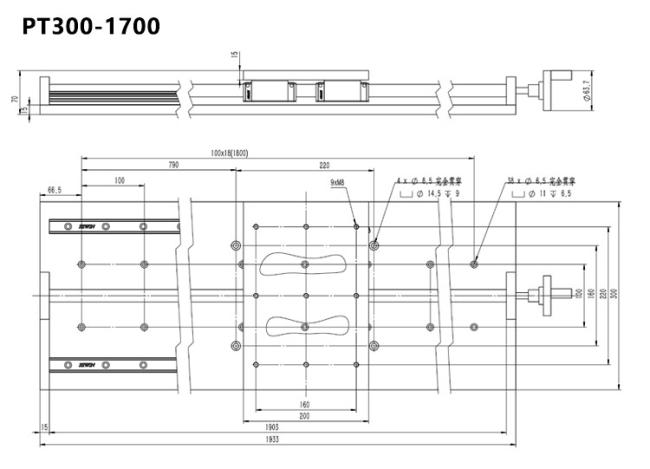

PT300-1700	200*300MM	1933MM	1700MM	150KG

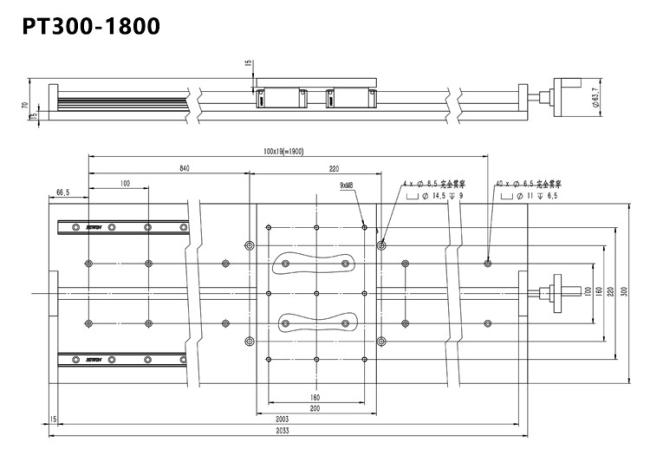

PT300-1800	200*300MM	2033MM	1800MM	150KG

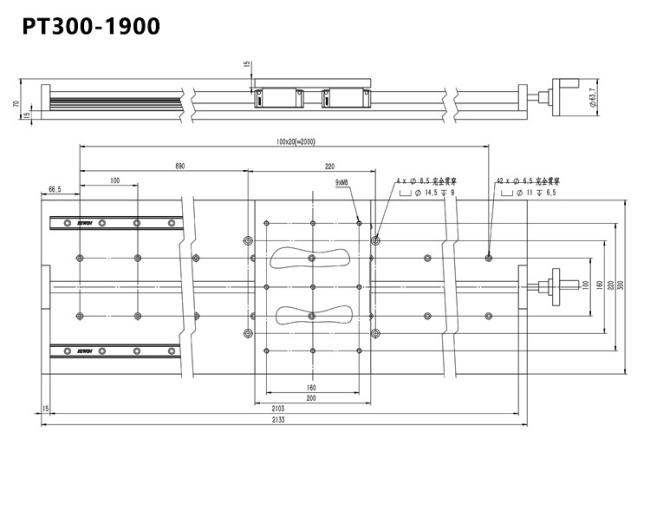

PT300-1900	200*300MM	2133MM	1900MM	150KG
