Manual Stretching X Axis Linear Slide Stage With Platen
Manual Stretching Stage X Axis Linear Slide Stage With Platen
Manual displacement stage includes manual linear stage, manual lab jack, manual rotary stage, manual angle stage, manual tilt stage, optical fiber special platform, standard manual product connecting plate, manual series multi-dimensional translation stage, etc.
Product description:
The main material of the product adopts high-quality alloy aluminum manufactured by special process, and adopts precision grinding lead screw and linear slider guide rail to ensure that the product is used in the application field of complex environment. The product has high serialization, strong universality and convenient combination. It is suitable for the adjustment of low frequency and medium stroke. It is a translation table product with ultra-high cost performance.
Product Parameters:
Lead: 3MM
Lead screw diameter: 14MM
Light bar diameter: 12MM
| Model | PT-ST25 | PT-ST50 | PT-ST100 | PT-ST200 | PT-ST300 | PT-ST400 | PT-ST500 |
| Platform size | 65x65mm | 65x65mm | 80x80mm | 80x80mm | 80x80mm | 80x80mm | 80x80mm |
| Trip | 25mm | 50mm | 100mm | 200mm | 300 | 400 | 500 |
| Lead Screw Pitch | 1.25mm | 1.25mm | 3mm | 3mm | 3mm | 3mm | 3mm |
| Load Bearing | 15KG | 20KG | 20KG | 20KG | 20kg | 20kg | 20kg |
| Dead Weight | 0.8kg | 1kg | 1.8kg | 2.8kg | 3kg | 4kg | 5kg |
| Material Surface Treatment | 6061 Aluminum Alloy - Black Or Anodized | ||||||

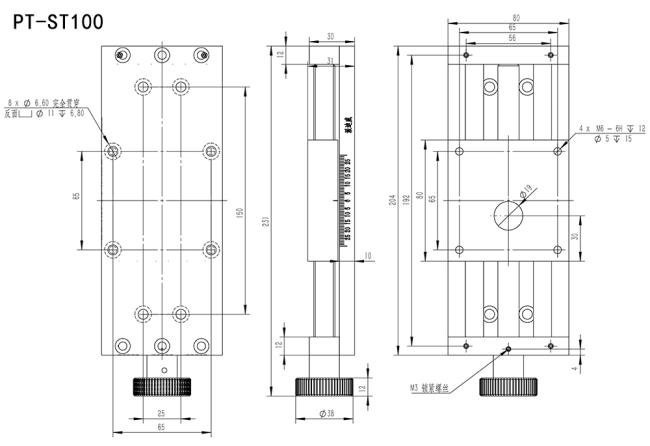

Product dimension drawing:
