Quick Adjustment Manual Rotary Stage Hollow Turntable
Quick Adjustment 360 ° Manual Rotary Stage Fine Tuning Hollow Turntable
Manual Rotation Stage PT-R200
Product Description
Precision manual rotation stage products, using worm gear and worm bearing design, high precision, large bearing capacity. Precise Angle adjustment can be realized by rotating the platform; After turning the table to the approximate position, secure it with coarse and fine adjustment switching screws so that it can be fine-tuned using the differential head.
Product advantages
1. Precision shafting design, shafting clearance is adjustable, good stability.
2. High subdivision and large axial torque of turbowheel.
3. Central aperture, easy to pass light or install and connect other products.
Fine-tuning using fine tooth screw drive, spring return, high resolution, no return.
5. The differential head to the side screw can be pressed against the spring library, and the fine adjustment mechanism can be locked.
Application area
Microelectronics, optical communication, colleges and universities, fiber laser and other fields.
Product Specification
|
Model Number |
PT-R200 |
|
Table Diameter |
200mm |
|
Table Thickness |
35mm |
|
Differential Head Accuracy |
0.01 |
|
Minimum Movement |
0.05° |
|
Load Capacity |
490N(49kgf) |
|
Fixed Mode |
Locking knob |
|
Material Surface |
Aluminum Alloy (Black-Anodized) |
|
Amount Of Movement |
Coarse: 360° Fine: ±5° |

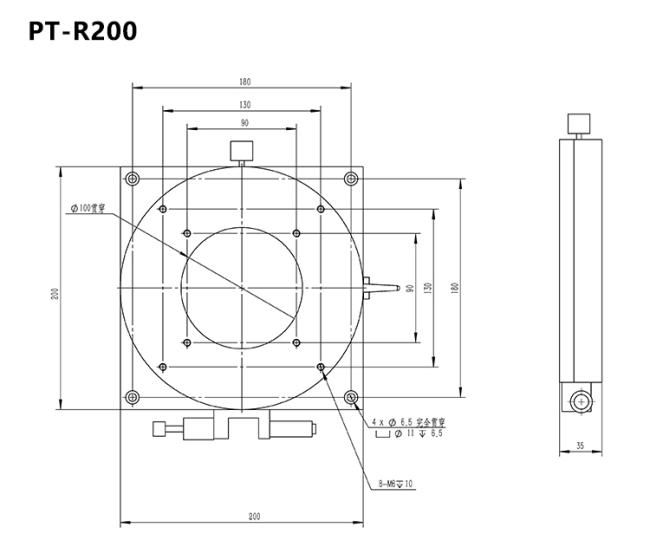

Product dimension drawing
