360 ° Cutiao Rough Adjustment Aluminum Alloy Manual Rotary Sliding Stage

Precision manual Rotation Stage PT-PR40

Manual rotating slide table refers to the table around the axis to do rotation movement (θZ axis) manual slide table, is an important part of the manual slide table, PDV can provide a variety of series of manual rotating slide table specifications.

High performance rotary tables are compatible with our wide range of linear displacement tables and tilt & pitch platforms. They can be combined to provide multi-axial motion and can be easily adapted to the needs of a particular system.

Product features

■ Table can rotate 360° coarse adjustment.

■ Fine tooth screw drive, spring reset.

■ Precision shafting design, shafting clearance adjustable, stable.

360° laser marking, easy reading.

■ Central aperture, easy to connect or install other products.

■ The upper and lower parts are connected with standard hole spacing holes, convenient to connect with other displacement table, forming a multidimensional mobile table.

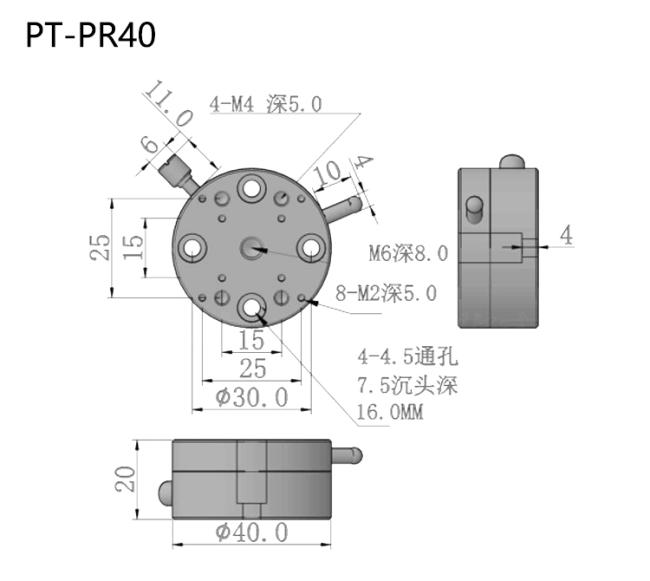

Product specification
