Xyr Angle Motorized Rotation Stage Left And Right Adjustment Xy Axis Travel 100mm
XYR Angle Stage Left And Right Adjustment Stage XY Axis Travel 100mm, 360 ° Rotation
Product description
This XYR electric three-dimensional table is composed of PX110-200 electric rotary table and PT-XY100 electric left and right adjustment table. The rotary table can rotate 360 ° continuously, and the XY axis stroke of the electric left and right adjustment table is 100mm.
PDV is an independent high-tech R & D enterprise integrating optics, precision machinery and automatic control technology. Since the establishment of the company, we have been serving scientific research institutes and universities. We have developed hardware and software systems (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. After long-term unremitting efforts, we have provided good services to customers in the construction of optical path control system. We have grown into a reputable manufacturer in scientific research, colleges and universities, mechanical automation and other fields.
Product parameters:
| Model Number | PT-XY100 | Model Number | PX110-200 | ||
| Structure | Travel Range(mm) | 100mm |
Structure
|
Rotation Range | 360° |
| Platform Size | 300mm x 300mm | Platform Size | φ200mm | ||
| Screw Guide | 4 | Worm Gear Ratio | 180 : 1or 90:1or 45:1(Choose one of the three) | ||
| Travel Guide | Precise Crossed Roller Bearing | Drive Mechanism | Worm Gear | ||
| Stepper Motor | 42(1.8°) | Guide rail form | Bearing | ||
| Material | Aluminum Alloy | Stepper Motor (1.8°): | 57BYG | ||
| Surface Preparation | Black-Anodized | Material | Aluminum Alloy | ||
| Load Capacity(kg) | 50 | Surface Preparation | Black-Anodized | ||
| Weight(kg) | 8.3 | Load Capacity | 55kg | ||
| Accuracy | Resolution(μm) | 20(Non MS), 2.5(8 MS) | Weight | 7.9kg | |
| Max Velocity | 40mm/sec |
Accuracy
|
Resolution |
0.01°=36″(Non MS), 0.0005°=1.8″(20MS) |
|
| Repeatability(μm) | 2 | Max Velocity | 25°/sec | ||
| Absolute Accuracy(μm) | 3 | Repeatability | 0.005°=18″ | ||
| Straightness(μm) | 5 | Absolute Accuracy | 0.01°=36″ | ||
| Moving Parallelism(μm) | 15 | End jump accuracy | 15μ | ||
| Pitching | 50" | Empty return | 0.005°=18″ | ||
| Yawing | 25" | eccentric | 20μ | ||
| Backlash(μm) | 2 | Lose step | 0.005°=18″ | ||
| Lost Motion(μm) | 2 | Parallelism | 100μ | ||
| Accessory | Installing Grating Ruler (Optional) | ||||
| Reloading Servo Motor (Optional) | |||||

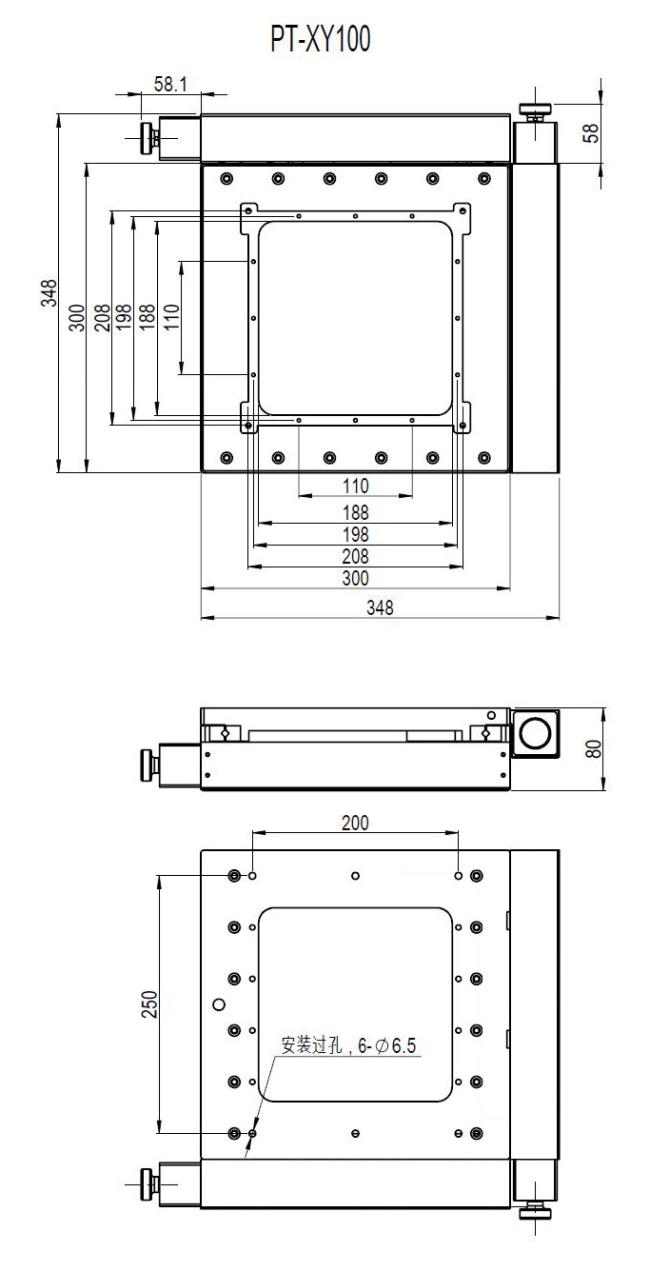

Product dimension drawing:
PT-XY100
PX110-200
