Precision Displacement Stage Motorized Goniometer Stage Rotary Table

Product description

This product is composed of PX110-200 motorized rotary stage and PT-GD304 motorized Goniometer Stage.

Motorized Rotary Stage PX110-200

Product features:

※ the standard 9-pin interface of stepping motor can be controlled automatically by the company's motion controller.

※ the rotating shaft system is precision machined by multi-channel technology, with high fitting accuracy, large bearing capacity and long service life.

※ the worm gear and worm structure with precise research is adopted, which is comfortable in motion, can rotate in the forward and reverse directions at will, and has small air return.

※ the ingeniously designed air return structure can adjust the air return gap caused by long-term use.

※ the special structural design ensures the low end jump and eccentricity of the rotating table, making the rotating motion more stable.

※ there are strict coaxiality requirements between the central through hole of the rotary table and the rotary center, and the central aperture of the rotary table has strict matching tolerance limits, which is convenient for customers to do precise positioning.

※ the scale circle on the periphery of the table is a laser scribed ruler, which can rotate relative to the table to facilitate initial positioning and reading.

※ the stepping motor and worm are connected through high-quality elastic coupling, with synchronous transmission, good depolarization performance, reduced eccentric disturbance and low noise.

Product parameters:

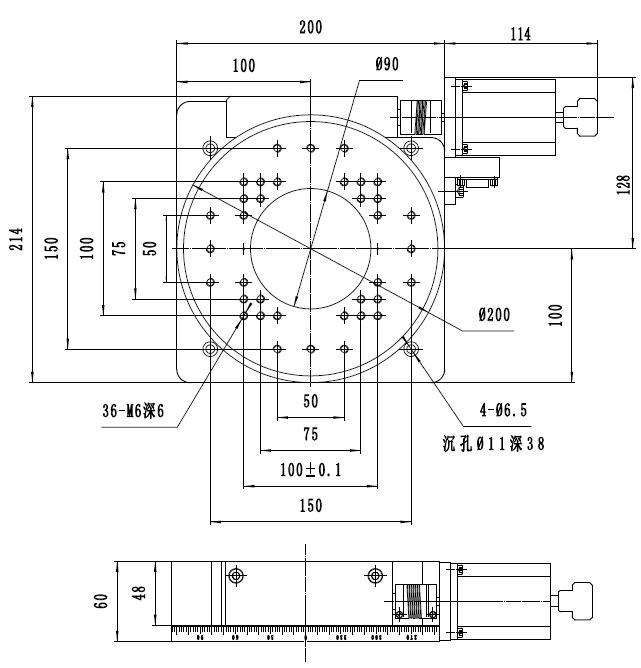

PX110-200 Product dimension drawing:

Precision motorized goniometer stage (worm gear): PT-GD304

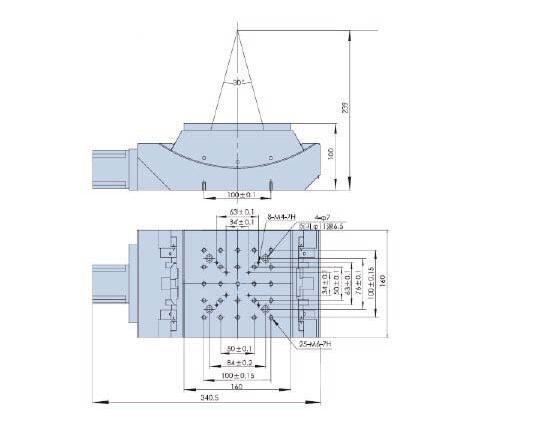

PT-GD304 Product dimension drawing:
