High Load Precision Stepping Motorized Goniometer Stages 20 Degree Angle Adjustment
PT-GD307 High Load Precision Stepping Motorized Goniometer Stage 20 Degree Angle Adjustment
The electric Angle table can make the fixed optical device tilt adjustment, wear-resisting arc ball guide rail, finishing worm gear and worm drive, high precision, large driving force. It can be used flat or upright.
PT-GD307 motorized moniometer stage, ± 20 ° angle adjustment, bearing 100kg
Product Advantages:
The scale circle on the periphery of the table is a laser marking scale, which can be rotated relative to the table for initial positioning and reading.
The worm gear and worm structure with precision is adopted, the driving force is large, the movement is comfortable, and the forward and reverse rotation can be arbitrary and the empty return is very small.
Adopt high precision arc guide rail, high strength, strong load capacity, good durability.
The special structure design ensures the low deflection and tilt of the corner table, so that the movement is more stable.
Application Area:
Ultra precision laser processing, ultra precision 3D scanning measurement, automatic measuring instruments and testing equipment, industrial automation and other fields.
Product specification:
| Item Number | PT-GD307 |
| Angle Range | ±20° |
| Platform Size | 210×210mm |
| Rotation Center Height | 380 |
| Drive Mechanism | Worm Gear |
| Guide | Crossed Roller Bearing |
| Stepper Motor (1.8°) | 86BYG |
| Main material | Aluminum Alloy |
| surface treatment | Black-Anodized |
| Load Capacity | 100kg |
| Design Resolution | ≈0.007°≈25″(Non-MS Driver)≈1.3″(20MS Drive) |
| Rotation Center Deflection Accuracy | 0.03 mm |
| Max Velocity | 10°/sec |
| Repeatability | 0.1 |
| Backlash | ±3″ |
| Lost Motion | 2″ |
PT-GD307 Motorized Angle Stage

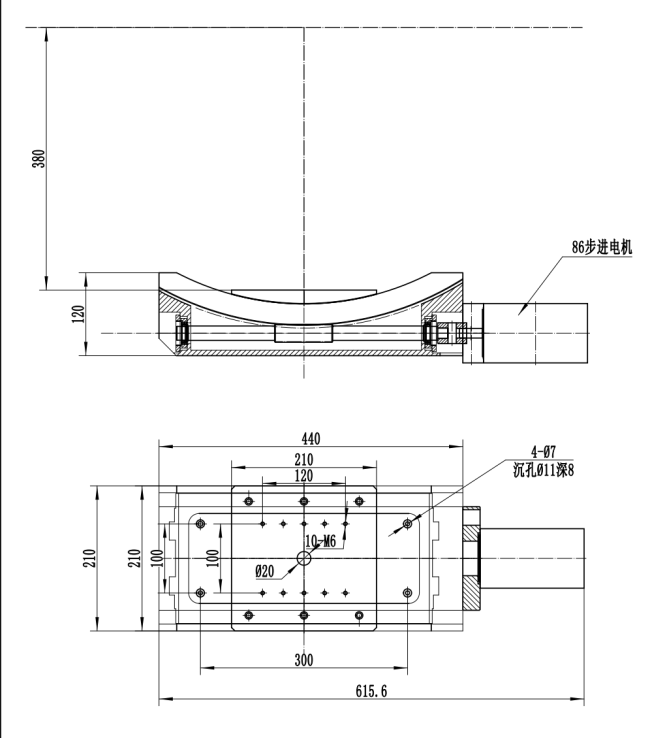

Product dimension drawing:
