VGSE60 52mm Dual Output Shaft Planetary Reducer Gearbox 12Nm-40Nm

VGSE60 52mm Dual Output Shaft Planetary Reducer Gearbox Features:


● High precision: Planetary gears take drum-shaped teeth which has been carburizing roll cutting and grinding hardly to ensure accuracy grade up to JIS2
● High rigidity: Output end bearing adopts round nut adjustment to ensure rigidity
● High performance: The design scheme carefully considers and understands the customer's working conditions. The product has excellent working conditions adaptability

● Low vibration: The output angular contact bearing is matched with the cage-type planetary carrier to greatly improve the stability of the product, and the end face runout is better

● Low noise: Output flange and the ring gear are as a whole, to ensre concentricity requirements of parts to realize the low nosie environment.

● Variable size for your reference:

Dual Shaft-Round Type:

These are our new developed planetary gearboxes type, including more sizes and appearances

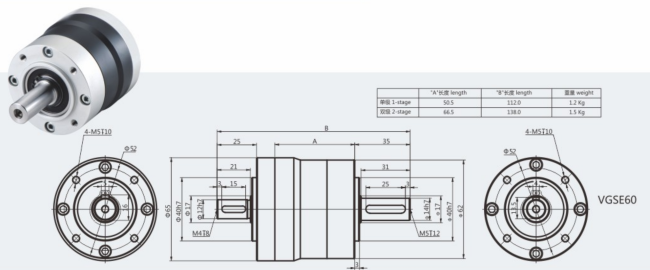

  VGSE60 Planetary Speed reducer Drawings & Dimensions:

 CHE Planetary Speed Reducer Selection Instructions:

Model~if you know the specific model, that would be wonderful.
Torque:
Gear Ratio:
Reducer size or motor power:
Output method:
Connection Method:
Helical or Spur Gear:
Quantity:
What machine you use for:
Pls provide as much as you can so that we can help you more quickly!
Thanks a lot!


 Working Shop

Revolutionary Technology

CHE launched the high-speed gear end of the supoort and the integration process, to achieve better concentricity requirements to meet the low noise requirements; increasing the reducer adjustment ring, adjust the internal axial clearance, ran achievement minimization; reducer output end of the tapered roller bearing load, the force to meet the greater demand and absolute stability after loading.
