1000Kg 3500Kg Push Back Pallet Racking

1000 To 3500kg Heavy Duty Storage Factory Pallet Racking Racks Cold Steel Surface

Contact us, we can provide you with design drawings and quotations!

Product Description
High Quality Industrial Heavy Duty Metal Pallet Stack Storage

Rack With Adjustable 50mm&75mm&76.2mm Pitch

1). Pallet racking is also called beam pallet racking which is of cut-in composite structure; the upright

made by continuous punching and rolling; the frame is assembled by upright,bracing and beams are

fixed to uprights by hooks.

2). There are safety locks fix beams and uprights tightly, protecting beams from dropping when loading

goods with forklifts.

3). The height of each layer can be adjusted by 50mm, 75mm or 76.2mm freely, the capacity of each

layer can be up to 4000kg.

4). It's convenient to load and unload pallets with goods on by using forklifts; Such as front-move forklift ,

balance-weight forklift and common forklift can be used to load and unload goods.

5). Steel panels, wooden panels and decking are also available for putting on beams instead of pallets.

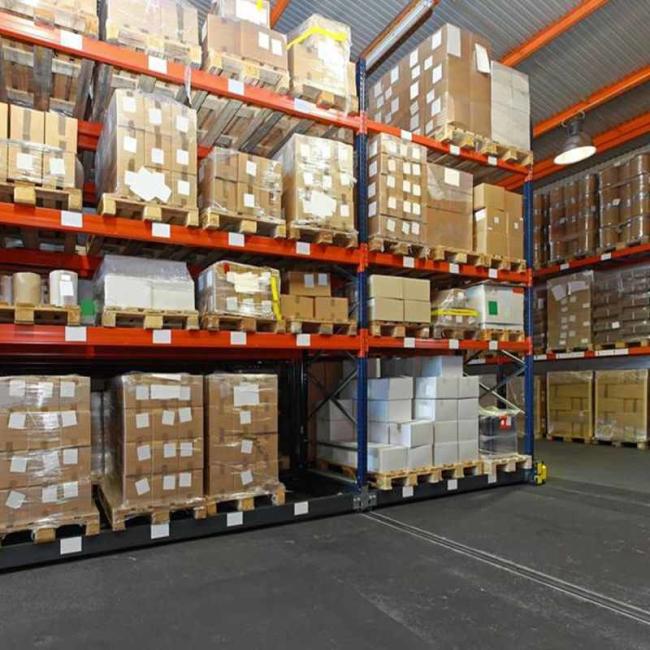

6). Pallet racking is the most common storage system which is used in fields of manufacturing industry,

the third part logistics,distribution centers,supermarket and so on.

Upright Profile
Upright profiles in different sizes, with both Straight Flange and Returned Flange, are rollformed from

high quality steel coils to cater for
wide range of frame load requirements. Hole patterns with Pitch Height 50mm, 75mm, and 76.2mm

(3") are available.

Surface Finish:
- Pre-Galvanised (Pregal), or
- Powder coated RAL 5015

- Footplate

- Box Beam and Beam Connector
A wide range of Box Beam sizes are available with customized lengths to meet varied pallet sizes and

load rating requirements. Several types of beam connector/bracket brand as shown in the table below

are also available to meet different market needs.
