Stainless Steel Cartridge Filters For Water Treatment 0.1 Micron

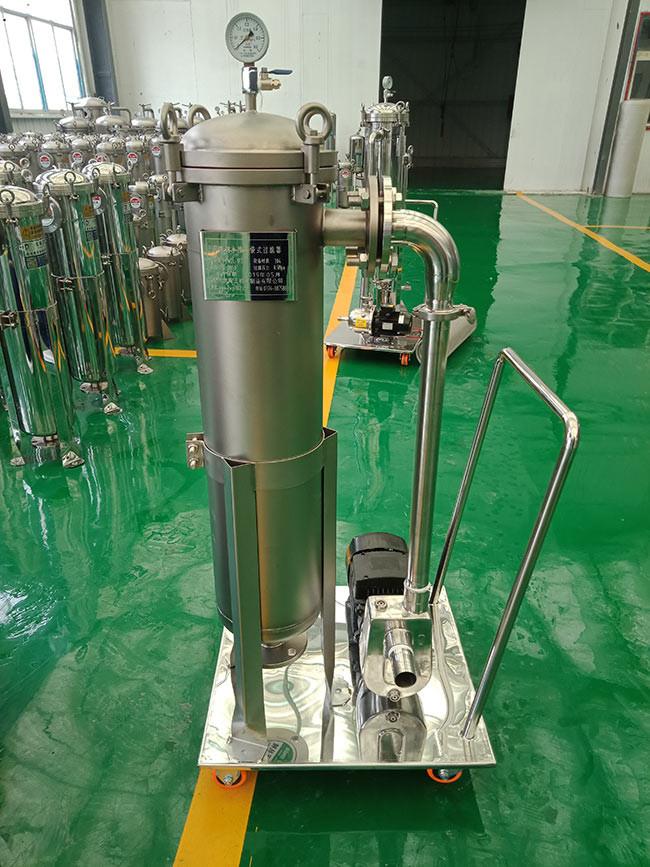

Yuwei Automatic Stainless-steel Cartridge Filter 0.1 Micron
Introduction
Yuwei cartridge filter consists of housing and cartridge. Normally the housing is made of stainless steel. The media of filtration is the cartridge, which is made from various materials. Usually, it includes polypropylene cartridge, string wound cartridge, PP folded cartridge etc. Which kind of cartridge should be selected depends on the liquid. The precision of filtration ranges from 0.1 to 60μm. The size of the cartridge includes 10 inches,20 inches,30 inches,40 inches. The liquid enters the housing from the inlet, going through the filter cartridge. Then the liquid is evenly filtered by the cartridge under the pressure from the pump. The impurities will be trapped inside the cartridge. And the filtration process is completed.
Specification
| Filter capacity T/H: | 0.05-20 |
| Filter working pressure mpa: | 0.1-0.6 |
Filter specification core number: |
1,3,5,7,9,11,13,15 |
| Filter operating temperature °C: | 5-55 |
| Filtration accuracy (um): | 0.1, 0.2, 0.45, 1-60 |
| Filter capacity (t/h): | 0.5-100 |
| Filter element length (m/m): | 250-1000 |
| Working pressure (Mpa): | 0.1-0.6 |
| Filter aperture: | 0.1um, 0.22um, 0.45um, 1um, 3um, 5um, 10um, etc. |
| The filter cartridge has 1 core, 3 cores, 5 cores, 7 cores, 9 cores, 11 cores, 13 cores, 15 cores, 21 cores, 32 cores | |
| The length of the pleated filter element is 10, 20, 30, 40 | |
