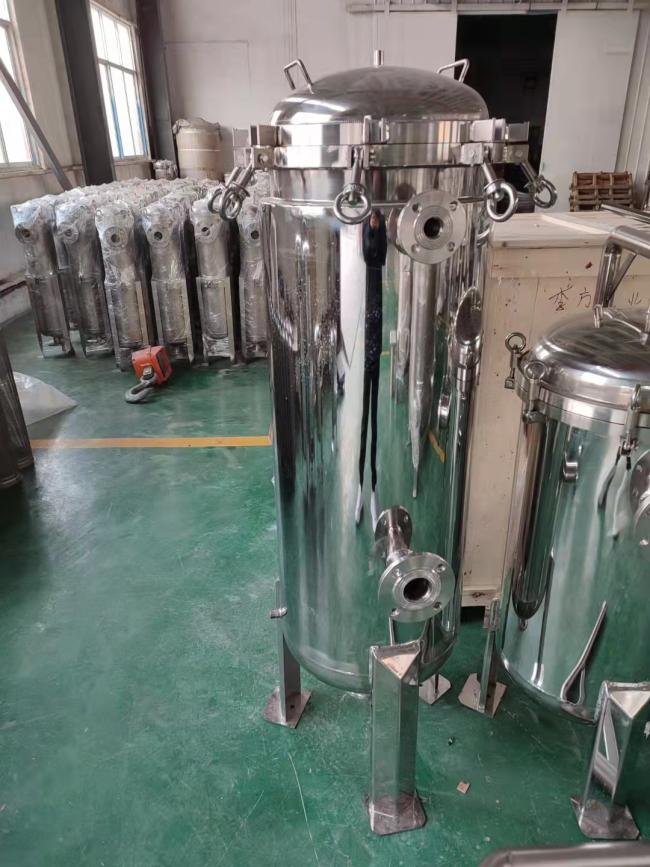

Sanitary cartridge filter with housing for water treatment Stainless Steel 316L
Sanitary Liquid Filters with Cartridge Housing Stainless Steel 316L
Working principle
Precision filtration is to adopt the molding of filtration material, under the action of the pressure filtration material, make prefiltration through, stay in wall, phosphate-contained residue filtrate through filtering material flow, so as to achieve the purpose of filter.
Filtration material molding of filter cloth and filter are: , filter slice, sintering filter tubes, wire wound filter, melt-spurt filter core, etc. Because of the different filtration material, filtration aperture is not identical also. Precision filtration was between sand filter (coarse filter) and ultrafiltration between filtering, filtration aperture in commonly 0.5 ~ 120 mu m range. The same form of filtration material, press envelop dimensions can be divided into different specifications.
Specification
| Theoretical flow | Filter Cartridge | Inlet/Outlet | ConnrctionType | Dimension(mm) | |||||
| T/H | QTY | Length | A | B | C | D | E | ||
| 0.3-0.5 | 1 | 10" | DN20 | Fast Assembly/Flange | 600 | 400 | 80 | 100 | 220 |
| 0.6-1 | 20" | DN20 | 800 | 650 | |||||
| 1-1.5 | 30" | DN20 | 1050 | 900 | |||||
| 1-1.5 | 3 | 10" | DN25 | 650 | 450 | 120 | 200 | 320 | |
| 1.5-3 | 20" | DN25 | 900 | 700 | |||||
| 3-4.5 | 30" | DN32 | 1150 | 950 | |||||
| 1.5-2.5 | 5 | 10" | DN32 | 650 | 450 | 120 | 220 | 350 | |
| 3-5 | 20" | DN32 | 900 | 700 | |||||
| 5-7 | 30" | DN40 | 1150 | 950 | |||||
| 2-3.5 | 7 | 10" | DN40 | 950 | 700 | 150 | 250 | 400 | |
| 4-7 | 20" | DN50 | 1200 | 950 | |||||
| 7-10 | 30" | DN50 | 1450 | 1200 | |||||
| 6-8 | 9 | 20" | DN50 | 1000 | 700 | 150 | 300 | 450 | |
| 8-12 | 30" | DN50 | 1250 | 950 | |||||
| 12-15 | 40" | DN50 | 1500 | 1200 | |||||
| 6-12 | 12 | 20" | DN50 | Flange | 1100 | 800 | 200 | 350 | 500 |
| 12-18 | 30" | DN65 | 1350 | 1050 | |||||
| 16-24 | 40" | DN65 | 1600 | 1300 | |||||
| 8-15 | 15 | 20" | DN50 | 1100 | 800 | 200 | 400 | 550 | |
| 18-25 | 30" | DN65 | 1350 | 1050 | |||||
| 20-30 | 40" | DN80 | 1600 | 1300 | |||||
| 12-21 | 21 | 20" | DN65 | 1150 | 800 | 200 | 450 | 600 | |
| 21-31 | 30" | DN80 | 1400 | 1100 | |||||
| 27-42 | 40" | DN100 | 1650 | 1300 | |||||
