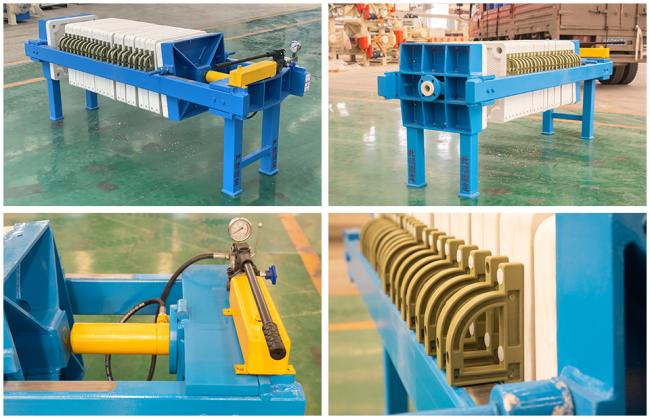

Manual filter press series is a kind of intermittent solid-liquid separation equipment.

Then, the feed liquid is sent to each filter chamber, and the solid and liquid are separated through filter cloth filtration. Widely used in chemicals, dyes, petroleum, ceramics, pharmaceuticals, sugar, food crystal, starch, smelting sugar, paint, slime, metallurgy sewage treatment in various industries, etc. Product specifications are 380, 520, 710, 800, 920, 1000, 1250, 1500, 1600, 2000, and the filter area is from 0.5m2 to 2000m²;

The temperature is -20°C- 120°C, and the filtrate outflow methods include open flow, dark flow, washable and non-washable. Filtration pressure from 0.2Mpa -2.0Mpa. Yalong filter press can be divided into cast iron, reinforced polypropylene, Glass fiber high temperature resistant polypropylene, aluminum alloy, stainless steel, rubber plate and frame filter presses are available for selection.

1. Inverter motor pull plate;
2. Automatic control system: The control adopts three major brands, Omron, Siemens and Schneider products to realize automatic control of the whole process;
3. The hydraulic system runs smoothly and reliably: the hydraulic components are made of high-quality products; the integrated block is processed by the machining center; the fuel tank is produced by the manufacturing process;
4. The main beam adopts H-shaped box structure, which has good structure and anti-side bending, which completely solves the problem of bending of the main beam. Diaphragm pressing, which is as large as 25kg, reduces the moisture content of the filter cake after pressing to less than 20%; the thickness of the filter cake is 45mm , increasing the volume of the filter chamber and the processing capacity of a single unit.

It is widely used in the production process of various industrial industries such as chemical, petroleum, pharmaceutical, sugar, metallurgy, food, ceramics, starch, etc. and the purification of various industrial wastewater and domestic sewage.
