stainless steel single cartridge filter housing styrene acrylonitrile 3/4 in npt

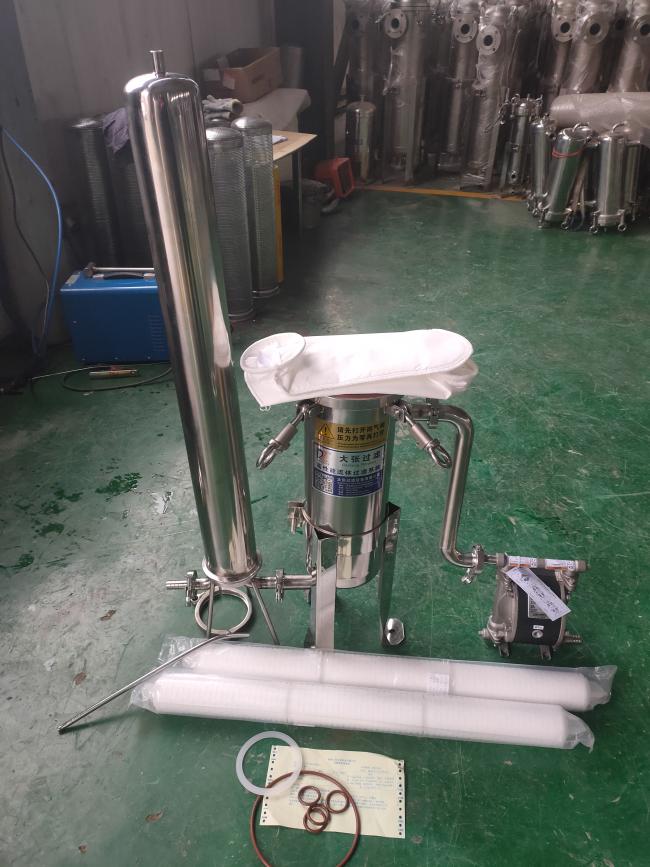

Yuwei SS 304 / 316L Material Cartridge Filter With 0.1-200 Micron Single Cartridge
PP filter element is also called PP melt-blown filter element. The melt-blown filter element is made of polypropylene ultrafine fibers by thermal fusion entanglement. The fibers randomly form a three-dimensional microporous structure in space. , fine and fine filtration in one, can intercept impurities of different particle sizes. The accuracy of the filter element ranges from 0.5 to 100 μm, and its flux is more than 1.5 times that of the same precision peak room filter element. Different types of end cap joints can be configured to meet the needs of various engineering installations.
Features and Benefits
- Mirror Surface Finish Complete Stainless Steel Constructiona).:Reduces bacterial/particle adhesion and no dead space;Excellent corrosion resistance;
- Easy To Install Design With Sanitary Connections, Easy to Clean.:Available in tri-clamp, flanged and thread connections;Rrequires minimum floor space and quickly dismantles for easy cleaning;
- Housings Accommodate From One (1) to Many 10", 20", 30" or 40" Cartridgesa). :Suitable for small to large batch sizes and flow rates;High pressure & high temperature designs are available;
Specification
| Filter capacity T/H: | 0.05-20 |
| Filter working pressure mpa: | 0.1-0.6 |
Filter specification core number: |
1,3,5,7,9,11,13,15 |
| Filter operating temperature °C: | 5-55 |
| Filtration accuracy (um): | 0.1, 0.2, 0.45, 1-60 |
| Filter capacity (t/h): | 0.5-100 |
| Filter element length (m/m): | 250-1000 |
| Working pressure (Mpa): | 0.1-0.6 |
| Filter aperture: | 0.1um, 0.22um, 0.45um, 1um, 3um, 5um, 10um, etc. |
| The filter cartridge has 1 core, 3 cores, 5 cores, 7 cores, 9 cores, 11 cores, 13 cores, 15 cores, 21 cores, 32 cores | |
| The length of the pleated filter element is 10, 20, 30, 40 | |
