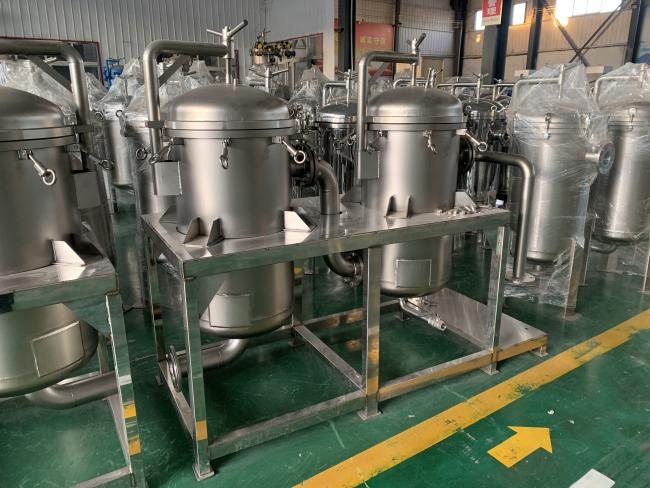

Round Stainless Steel Multi Cartridge Filter Housing Tandem

Price Negotiable
Price: USD+500-10000+set
MOQ: 1
Delivery Time: 5-8 days
Brand: Yuwei
Product Description

Yuwei Stainless-Steel Tandem Housing Cartridge Filter With PP Material Cartridge For High Precision Water Filtration​



Compared with the traditional filter, the dual-stage filter has higher filtration accuracy, adopts a unique high-pressure backwashing function, does not need to replace the filter element, and realizes the microfiltration product that can quickly restore the flux without interrupting the water production. . The unique patented technology is adopted, and new filtering products are created by virtue of the unique patented technology. Whether it is product quality or market competitiveness, the dual-stage filter has a very good performance. Because the dual-stage filter uses more precise filter elements, ultra-high precision can achieve a real high filtration effect, and in terms of maintaining system performance, it is the first time to create a microfiltration product using metal materials as filter elements, as a field in this field. The breakthrough also fills the gap in the field.



Industry:



1. Weak corrosive materials in chemical and petrochemical production, such as: water, ammonia, oil, hydrocarbons, etc.

2. Corrosive materials in chemical production, such as: caustic soda, concentrated dilute sulfuric acid, carbonic acid, acetic acid, acid, etc.
3. Low temperature materials in refrigeration, such as: liquid methane, liquid ammonia, liquid oxygen and various refrigerants.
4. Light industrial food, materials with hygiene requirements in pharmaceutical production, such as: beer, beverages, dairy products, grain, pulp and medical supplies, etc.





Specification



Theoretical flow Filter Cartridge Inlet/Outlet ConnrctionType Dimension(mm)
T/H QTY Length A B C D E
0.3-0.5 1 10" DN20 Fast Assembly/Flange 600 400 80 100 220
0.6-1 20" DN20 800 650
1-1.5 30" DN20 1050 900
1-1.5 3 10" DN25 650 450 120 200 320
1.5-3 20" DN25 900 700
3-4.5 30" DN32 1150 950
1.5-2.5 5 10" DN32 650 450 120 220 350
3-5 20" DN32 900 700
5-7 30" DN40 1150 950
2-3.5 7 10" DN40 950 700 150 250 400
4-7 20" DN50 1200 950
7-10 30" DN50 1450 1200
6-8 9 20" DN50 1000 700 150 300 450
8-12 30" DN50 1250 950
12-15 40" DN50 1500 1200
6-12 12 20" DN50 Flange 1100 800 200 350 500
12-18 30" DN65 1350 1050
16-24 40" DN65 1600 1300
8-15 15 20" DN50 1100 800 200 400 550
18-25 30" DN65 1350 1050
20-30 40" DN80 1600 1300
12-21 21 20" DN65 1150 800 200 450 600
21-31 30" DN80 1400 1100
27-42 40" DN100 1650 1300
