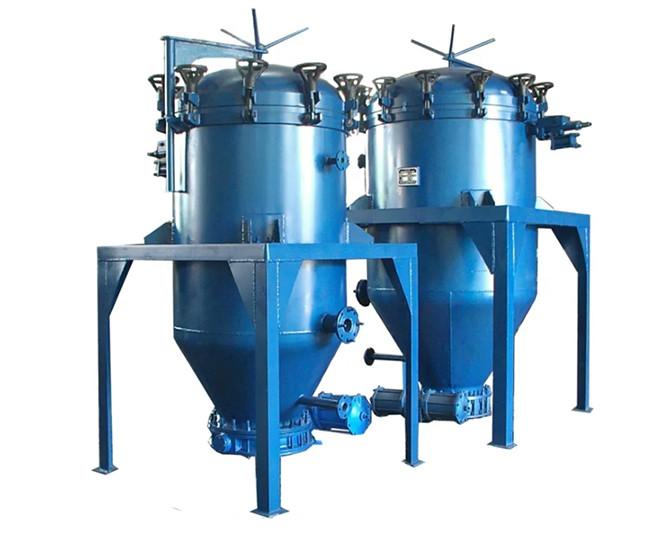

Vertical Metal Leaf Filter Plate Sealed Carbon Steel Oil Industry 0.1-0.4 Mpa
Price:
USD+3000-40000+set
MOQ:
1
Delivery Time:
15 days
Brand:
Yuwei
Product Description
0.1-0.4 Working Pressure High Efficient Plate Sealed Filter For Oil Industry
Product Description
The main body of the filter is made up of vessel, filter gauzes lifting structure and automatic discharging device. Filter gauzes are made by material of multilayer stainless steel which installed at center liquid pipe and cleaned up conveniently.
In the process of filtration ,the unfiltered liquid with filter aid come into the body through transmission system(pump or other tools.)After a stable filter cake formed on the filter gauze flakes, the filtrate are filtered through the micropores of filter cake.
| Filter cake volume(L) | Processing power(t/h) | Workpressure(Mpa) | Filtering cylinder volume(L) | I/O Connection | Discharging outlet | Cylinder diameter(mm) | Cylinder height(mm) | Filter spacing(mm) | Weight(Kg) | |||
| Grease | Resin | Drinks | ||||||||||
| YWBL-2 | 30 | 0.4-0.6 | 1-1.5 | 1-2 | 0.1-0.4 | 120 | DN25 | DN100 | 400*3 | 1280 | 50 | 150 |
| YWBL-4 | 60 | 0.8-1.2 | 2-3 | 2-4 | 250 | DN40 | DN125 | 500*3 | 1520 | 50 | 180 | |
| YWBL-7 | 105 | 1.4-2 | 3-5 | 4-8 | 420 | DN40 | DN150 | 600*3 | 1920 | 50 | 326 | |
| YWBL-10 | 150 | 2-3 | 5-8 | 5-10 | 890 | DN50 | DN200 | 800*4 | 2120 | 70 | 474 | |
| YWBL-12 | 240 | 2.4-3.6 | 6-9 | 6-12 | 1190 | DN50 | DN250 | 900*4 | 2220 | 70 | 554 | |
| YWBL-15 | 300 | 3-5 | 7-12 | 8-16 | 1580 | DN50 | DN250 | 1000*5 | 2370 | 70 | 815 | |
| YWBL-20 | 400 | 4-6 | 10-15 | 10-20 | 1770 | DN65 | DN250 | 1000*5 | 2670 | 70 | 910 | |
| YWBL-25 | 500 | 5-7 | 12-18 | 12-24 | 2200 | DN65 | DN300 | 1100*6 | 2740 | 70 | 1024 | |
| YWBL-30 | 600 | 6-9 | 14-22 | 15-30 | 2770 | DN65 | DN300 | 1200*6 | 2870 | 70 | 1165 | |
| YWBL-36 | 720 | 7-10 | 16-24 | 18-36 | 2870 | DN80 | DN300 | 1200*6 | 2970 | 70 | 1202 | |
| YWBL-40 | 800 | 8-12 | 20-30 | 20-40 | 3500 | DN80 | DN350 | 1300*6 | 3070 | 70 | 1342 | |
| YWBL-45 | 900 | 9-13 | 22-32 | 22-44 | 3630 | DN100 | DN350 | 1300*6 | 3270 | 70 | 1422 | |
| YWBL-52 | 1040 | 10-15 | 25-40 | 26-52 | 4380 | DN100 | DN350 | 1400*6 | 3370 | 75 | 1900 | |
| YWBL-60 | 1200 | 12-18 | 38-42 | 30-60 | 5100 | DN100 | DN400 | 1500*8 | 3530 | 75 | 2114 | |
| YWBL-70 | 1400 | 14-20 | 35-50 | 35-70 | 6940 | DN125 | DN400 | 1600*8 | 4220 | 80 | 2662 | |
| YWBL-80 | 1600 | 16-24 | 40-60 | 40-80 | 8300 | DN125 | DN400 | 1800*8 | 4220 | 80 | 3882 | |
