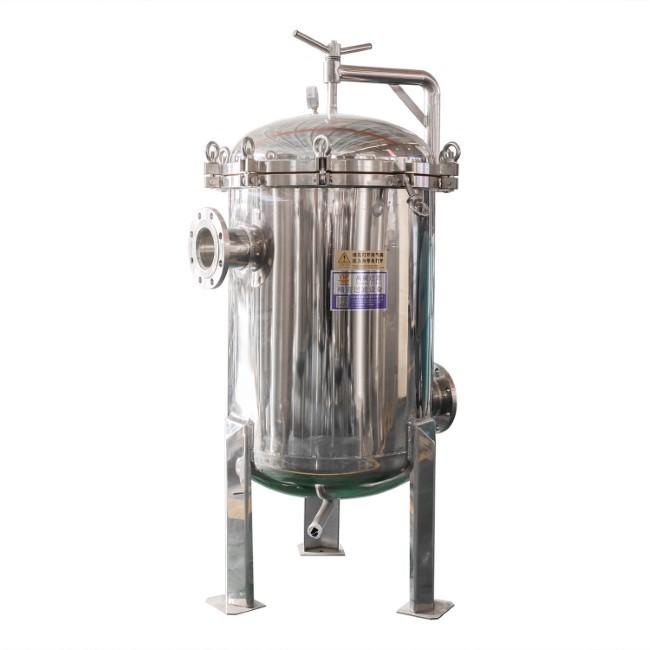

Liquid Bag Filter Housing Assembly Sugar Industry Lifting Lug Flange Type
Brief introduction
1. Bag Filter, with filter bags as the filter element, is capable of liquid precision filtration, it can remove the tiny impurities from liquid. Compared to cartridge filter, it has advantages of large flow rate, convenient operation and economical filter media consumption, especially capable of viscous liquid filtration.
3. Multi-bag Filter is all designed referring to steel pressure vessel standard, made of high quality pure stainless steel (304/316L) material, and fabricated according to strict quality standards. It is safe and reliable, has excellent corrosion resistance, good sealing, durable and well-made. BTM Series Multi-bag Filter can meet various filtration requirements.

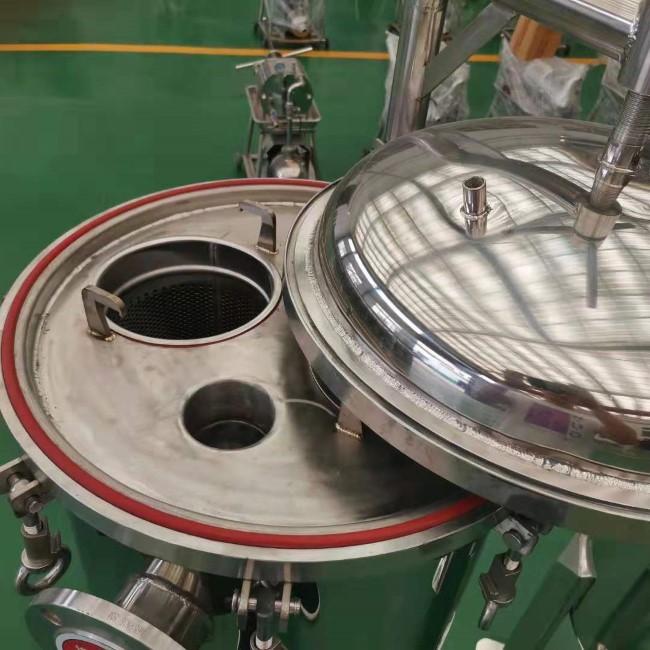

4. Bag Filter: quick-opening multi-bag filter takes only 20 seconds to open and close. It applies to large flow-rate occasions with frequent replacement of filter bags.
5. Bag Filter: multi-bag filter applies to large flow rate conditions without frequent replacement of filter bags.

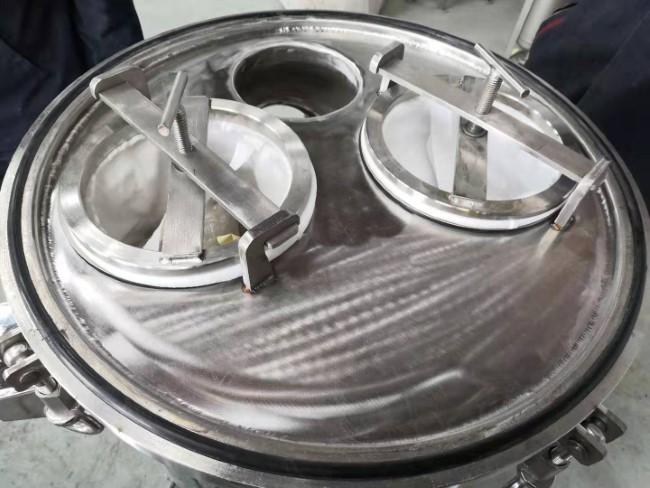

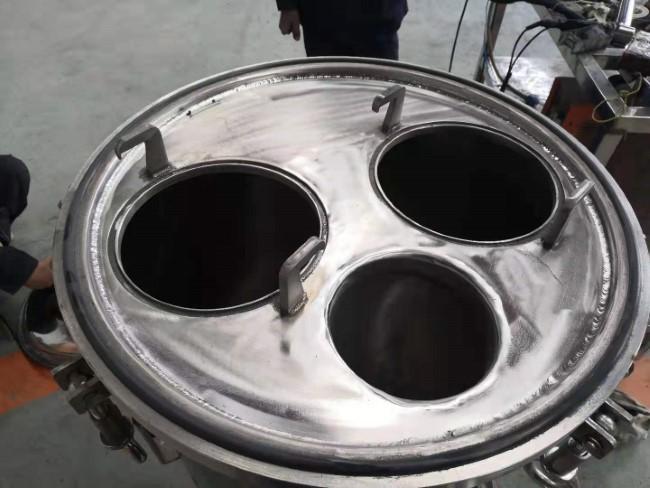

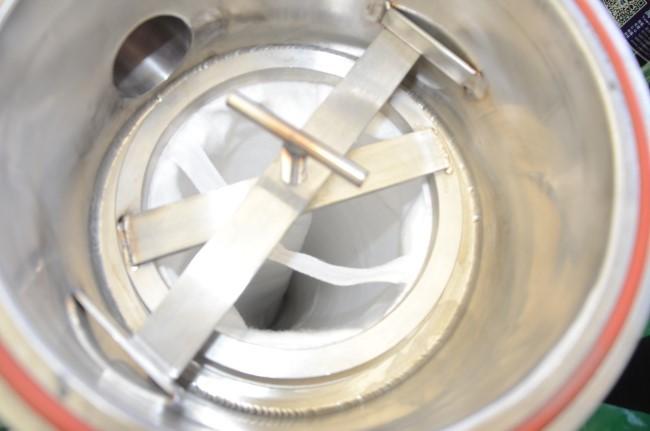

Product Details Show
Specification
| Models | No. of filter bags | Filtration Area(m2) | Flow rate (m³/h) | I/O Connections | Max pressure (Mpa) | Housing Diameter(mm) | Total Height(mm) | Housing Height(mm) |
| DL-2P2S | 2 | 1 | 70 | DN50 | 0.5 | 456 | 1572 | 1144 |
| DL-3P2S | 3 | 1.5 | 105 | DN80 | 0.5 | 508 | 1592 | 1190 |
| DL-4P2S | 4 | 2 | 140 | DN100 | 0.5 | 558 | 1632 | 1244 |
| DL-5P2S | 5 | 2.5 | 175 | DN150 | 0.5 | 608 | 1788 | 1254 |
| DL-6P2S | 6 | 3 | 210 | DN150 | 0.5 | 658 | 1854 | 1300 |
| DL-7P2S | 7 | 3.5 | 215 | DN150 | 0.5 | 710 | 1875 | 1340 |
| DL-8P2S | 8 | 4 | 280 | DN150 | 0.5 | 760 | 1922 | 1404 |
| DL-10P2S | 10 | 5 | 350 | DN200 | 0.5 | 910 | 2004 | 1430 |
| DL-12P2S | 12 | 6 | 420 | DN200 | 0.5 | 962 | 2064 | 1460 |
| DL-14P2S | 14 | 7 | 490 | DN200 | 0.5 | 1012 | 2124 | 1490 |
| DL-16P2S | 16 | 8 | 560 | DN250 | 0.5 | 1112 | 2146 | 1512 |
| DL-18P2S | 18 | 9 | 630 | DN250 | 0.5 | 1162 | 2225 | 1595 |
| DL-20P2S | 20 | 10 | 700 | DN250 | 0.5 | 1212 | 2280 | 1640 |
| DL-22P2S | 22 | 11 | 770 | DN250 | 0.5 | 1366 | 2320 | 1694 |
| DL-24P2S | 24 | 12 | 840 | DN300 | 0.5 | 1416 | 2358 | 1748 |
Technical features and advantages
1. Compact structure, reasonable size. Simple to install and operate, convenient, small occupation.
2. High filtration accuracy, for any fine particles or suspended matter, Range from 0.5 to 1,000 microns.
3. Unit filter area is large, a smaller filtration resistance, high filtration efficiency.
4. It can be used for coarse filtration, medium filter or fine filter.
6. The liquid bag filter is free of cleaning, convenient, efficient, and time-saving.
7. Various specifications are available: top-entry, side-entry, vertical, horizontal, multi-bag, etc.
Applicable liquids: Extremely wide applicability scope; applicable to various fluids containing micro amount of impurities.
Main filtration function: Removing various sizes of particles, purifying water and protecting key equipment.
Filter type: Filtration of particles; regular manual replacement of filter bag.
