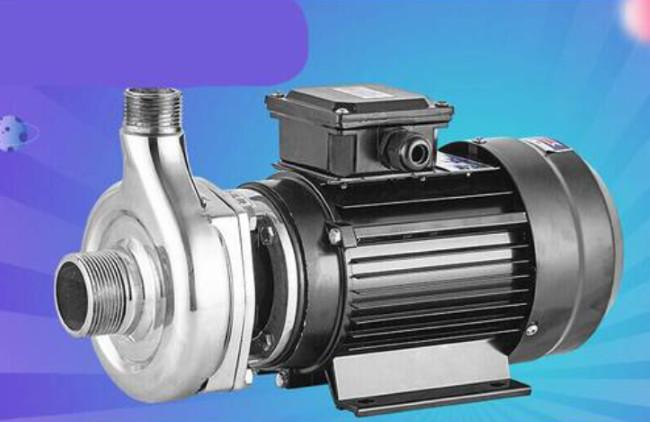

Horizontal Centrifugal Pump Stainless Steel Pipeline Circulating Booster Pump
Horizontal centrifugal pump stainless steel pipeline circulating booster pump
Horizontal centrifugal pump stainless steel pipeline circulating booster pump is a stainless steel corrosion-resistant centrifugal micro centrifugal pump. The impeller of the pump adopts semi open structure. Because the product integrates excellent structure, performance and shape, and the overflow parts and connecting frame are made of high-quality stainless steel.
Specification
| Model | Flow(m³/h) | Lift(m) | Power(kw) | Voltage(V) | Inlet/Outlet dia(mm) |
| WBS3-8 | 3 | 8 | 0.25 | 220/380 | 25-20 |
| WBS3-10 | 3 | 10 | 0.37 | 220/380 | 25-20 |
| WBS6-18 | 6 | 18 | 0.55 | 220/380 | 45-20 |
| WBS8-18 | 8 | 18 | 0.75 | 220/380 | 45-20 |
| WBS10-18 | 13 | 18 | 1.1 | 220/380 | 50-40 |
| WBS10-20 | 13 | 20 | 1.5 | 380 | 50-40 |
| WBS13.5-22 | 13.5 | 22 | 2.2 | 380 | 50-40 |
| WBS15-22 | 15 | 22 | 3 | 380 | 50-40 |
Main features of stainless steel centrifugal pump
1.Stable operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation without vibration.
2.Convenient maintenance: easy and convenient to replace seals and bearings.
3. More economical land occupation: the exit can be left, right and up to facilitate the layout and installation of pipelines and save space.
