Slurry Chamber Filter Press Equipment Sludge Automatic Drawing Plate And Frame

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 10-20 work days

Brand: Yuwei

Product Description

Automatic Drawing Plate And Frame Filter Press Slurry Treatment System Treatment Equipment Small Sludge Filter Press

he structure and working principle of the equipment are similar to the plate and frame filter press, the difference is that the two sides of the filter plate are recessed, and every two filter plates are combined into a box-shaped filter chamber, eliminating the need for the filter frame, and there is a circular hole in the center of the filter plate for suspension. This flows into each filter chamber. This filter is suitable for suspensions that need to be filtered at higher pressure and the filter residue does not need to be washed. The way the filtrate flows out is divided into clear flow filtration and undercurrent filtration.

Yuwei filter press advantages:
1. Lower filter cake moisture
2. Feeding pressure 0.6-1.2MPa
3. Hydraulic compressing, automatic maintaining pressure
4. Welded steel structure
5. Automatic cake discharging
6. Frame and beam made of Q345 high quality carbon steel
7. Plate made of reinforced polypropylene
8. Relay control system
9. ABB MotorABB
10. Siemens PLC
11. Schneider Electric components

Technical Features

Inverter motor pull plate;
Automatic control system: The control adopts three major brands, Omron, Siemens and Schneider products to realize automatic control of the whole process;
The hydraulic system runs smoothly and reliably: the hydraulic components are made of high-quality products; the integrated block is processed by the machining center; the fuel tank is produced by the manufacturing process;
The main beam adopts H-shaped box structure, which has good structure and anti-side bending, which completely solves the problem of bending of the main beam. Diaphragm pressing, which is as large as 25kg, reduces the moisture content of the filter cake after pressing to less than 20%; the thickness of the filter cake is 45mm , increasing the volume of the filter chamber and the processing capacity of a single unit.

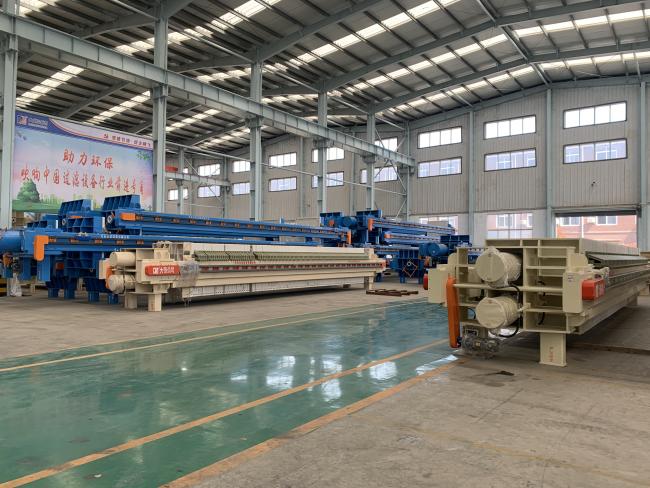

Application Fields and onsite pictures:

Mining
Chemical
Pharmaceutical
Waste water treatment

Model	Filter Area	Plate size	Cake thickness	Filter chamber volume	Plate NO	Filtration pressure	Motor power	Weight	Dimensions LWH(mm)	Foundation Size(mm)
Model	Filter Area	Plate size	Cake thickness	Filter chamber volume	Plate NO	Filtration pressure	Motor power	Weight	Dimensions LWH(mm)	L	B	D	H
X_M^AZ30/870−30U_K^B	30	870*870	30	460	23	0.6	2.2	2680	318014001230	2360	700	1380	785
X_M^AZ40/870−30U_K^B	40			595	30			3050	357014001230	2750
X_M^AZ50/870−30U_K^B	50			748	38			3456	411014001230	3290
X_M^AZ60/870−30U_K^B	60			902	46			4003	455014001230	3730
X_M^AZ70/870−30U_K^B	70			1056	54			4584	499014001230	4170
X_M^AZ80/870−30U_K^B	80			1210	62			5082	543014001230	4610
X_M^AZ50/870−30U_K^B	50	1000*1000	30	736	28	≥0.6	4	4128	404015001400	3120	780	1480	870
X_M^AZ60/870−30U_K^B	60			889	34			4636	446015001400	3480
X_M^AZ70/870−30U_K^B	70			1041	40			5143	476015001400	3840
X_M^AZ80/870−30U_K^B	80			1193	46			5651	512015001400	4200
X_M^AZ100/870−30U_K^B	100			1475	57			6628	578015001400	4860
X_M^AZ120/870−30U_K^B	120			1777	69			7644	650015001400	5580
X_M^AZ100/1250−30U_K^B	100	1250*1250	30	1468	36	≥0.6	4	8307	502018001600	3970	850	1740	995
X_M^AZ120/1250−30U_K^B	120			1746	43			9308	547018001600	4430
X_M^AZ140/1250−30U_K^B	140			2063	51			10455	599018001600	4950
X_M^AZ160/1250−30U_K^B	160			2341	58			11492	645018001600	5400
X_M^AZ180/1250−30U_K^B	180			2619	65			12494	690518001600	5860
X_M^AZ200/1250−30U_K^B	200			2896	72			13504	736018001600	6310
X_M^AZ220/1250−30U_K^B	220			3214	80			14652	788018001600	6830
X_M^AZ250/1250−30U_K^B	250			3650	91			16227	860018001600	7550
X_M^AZ200/1500−35U_K^B	200	1500*1500	35	2998	49	≥0.6	7.5	20030	640022001900	5250	1170	1990	1070
X_M^AZ250/1500−35U_K^B	250			3594	61			22978	722522001900	6090
X_M^AZ300/1500−35U_K^B	300			4347	74			26026	813022001900	6990
X_M^AZ350/1500−35U_K^B	350			5043	86			29220	895022001900	7840
X_M^AZ400/1500−35U_K^B	400			5796	99			32574	988022001900	8750
X_M^AZ450/1500−35U_K^B	450			6492	111			35586	1069022001900	9590
X_M^AZ500/1500−35U_K^B	500			7187	123			38606	1156022001900	10430
X_M^AZ600/2000−40U_K^B	600	2000*2000	40	8926	85	≥0.6	15	49000	1110030002500	9200	1660	2000	1050
X_M^AZ700/2000−40U_K^B	700			10380	99			53000	1220030002500	10300
X_M^AZ800/2000−40U_K^B	800			11210	107			57000	1335030002500	11450
X_M^AZ900/2000−40U_K^B	900			13290	127			61000	1450030002500	12600
X_M^AZ1000/2000−40U_K^B	1000			14740	141			65000	1560030002500	15600
