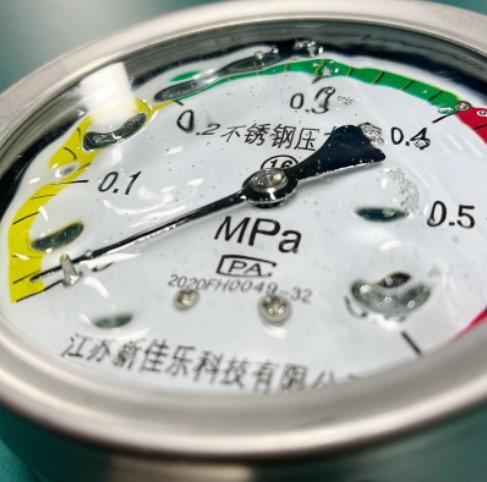

Explosive Filter Press Quality YXCHK100 Induction Switch Electric Contact Pressure Gauge 40MPA Precision 16 Grade 24V​

1. The size of the upper limit of the measurement of the pressure gauge is designed according to the size, stiffness and nonlinear conditions of the spring tube. The upper limit of the measurement is 1×10n, 1.6×10n, 2.5×10n, 4×10n, 6×10n Five series, n is a positive integer, a negative integer or zero.

2. Pressure range of digital pressure gauge: -100kPa ~ 2kPa ~ 260MPa.

3. The accuracy of the pressure gauge is lower than 1/3 of the range and should not be used. When selecting the upper limit of measurement, in order to ensure the safe and reliable operation of the pressure gauge and maintain its service life, it should generally be greater than 1/3 of the maximum operating pressure.

4. When selecting the range of use, according to the versatility of the load condition, it is appropriate to select 1/3 to 2/3 of the full range, because this range of use has high accuracy and can be used under both stable and fluctuating loads. use. The maximum range of use shall not exceed 3/4 of the full scale of the dial.
