SUS304 Stainless Steel Filter Press Machine Plate And Frame Liquid Precision
SUS304 Stainless Steel Plate And Frame Filter Plate And Frame Filter Liquid Precision Filter Plate And Frame Filter Pres

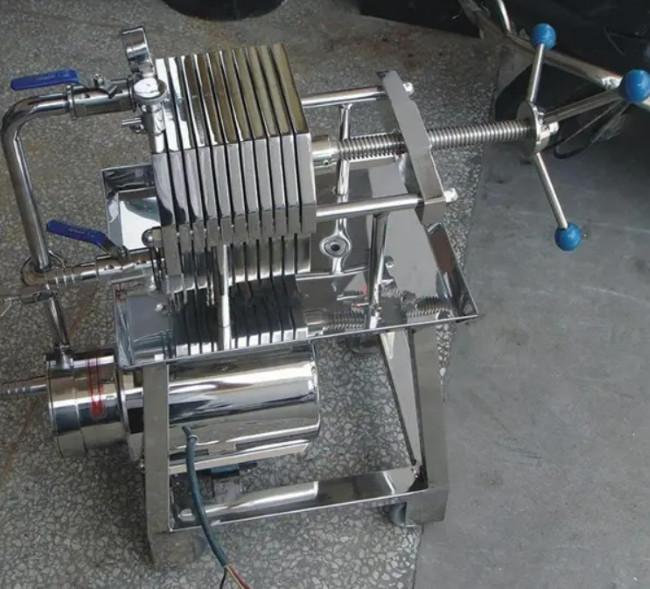

The stainless steel plate and frame filter is made of SUS 304 or sus 316L high-quality stainless steel, which is corrosion-resistant and durable. The filter plate of the machine adopts threaded disc wire structure to effectively protect the service life of the filter medium.
Product features
1. In addition to the motor, other parts of the machine are made of 304 or 316L high-quality corrosion-resistant stainless steel, which is suitable for filtering various pH acid-base solutions.
2. This machine applies pressurized closed filtration, with less filtrate loss, good filtration quality and high efficiency.
3. The filtering part is composed of ten layers of filter plates, with large filtering area and large circulation.
4. According to the requirements of different production processes of the filtered solution (primary filtration, de activated carbon, particle removal, semi fine filtration and fine filtration), different filter membranes can be replaced, and the number of filter plate layers can be appropriately reduced or increased according to the user's production flow, so as to meet the needs of production. Therefore, this machine has the characteristics of one machine with multiple functions and wide application range.
5. The filter plate adopts flat thread mesh shape, with advanced structure, no deformation and easy cleaning, which can effectively increase the service life of various filter membranes, so as to reduce and save production costs.
6. The stainless steel infusion pump equipped with this machine has small motor and low power consumption. A rubber wheel is installed under the base, which is convenient to operate and flexible to move.
Application
The machine can be used in pharmaceutical, food, beverage, water treatment, brewing, petroleum, chemical, anti-corrosion, environmental protection and other industries. It is an equipment for filtering, clarifying, purifying and treating all kinds of liquids.
| Model | Layer Qty | Filter area(m²) | Plate Size(mm) | Filtering Precision(um) | Designed Pressure | Water flow(t/h) | Feeding Pump Power | Dimensions |
| YWCR-100 | 10 | 0.08 | φ100 | 0.22-100 | 0.3 | 0.2 | 0.37 | 600x300x600 |
| YWCR-150 | 10 | 0.18 | φ150 | 0.22-100 | 0.3 | 0.45 | 0.37 | 650x380x650 |
| YWCR-200 | 10 | 0.31 | φ200 | 0.22-100 | 0.3 | 0.8 | 0.37 | 650x400x700 |
| YWCR-300 | 10 | 0.7 | φ300 | 0.22-100 | 0.3 | 1.8 | 0.55 | 700x500x800 |
| YWCR-400 | 10 | 1.25 | φ400 | 0.22-100 | 0.3 | 3.2 | 0.75 | 900x600x1000 |
| YWCR-400 | 16 | 2 | φ400 | 0.22-100 | 0.3 | 5 | 1.1 | 1000x600x1000 |
| YWCR-400 | 20 | 2.5 | φ400 | 0.22-100 | 0.3 | 6.3 | 1.1 | 1100x600x1000 |
| YWCR-400 | 32 | 4 | φ400 | 0.22-100 | 0.3 | 10 | 1.5 | 1320x600x1000 |
| YWF-200 | 10 | 0.4 | 200*200 | 0.22-100 | 0.3 | 1 | 55 | 650x380x650 |
| YWF-300 | 10 | 0.9 | 300*300 | 0.22-100 | 0.3 | 2.2 | 0.55 | 700x500x800 |
| YWF-400 | 10 | 1.6 | 400*400 | 0.22-100 | 0.3 | 4 | 0.75 | 900x600x1000 |
| YWF-400 | 20 | 3 | 400*400 | 0.22-100 | 0.3 | 8 | 1.5 | 1100x600x1000 |
| YWF-400 | 26 | 4 | 400*400 | 0.22-100 | 0.3 | 10 | 1.5 | 1150x600x1000 |
| YWF-400 | 32 | 5 | 400*400 | 0.22-100 | 0.3 | 12.8 | 2.2 | 1200x600x1000 |
| YWF-400 | 38 | 6 | 400*400 | 0.22-100 | 0.3 | 15.2 | 3 | 1300x600x1000 |
| YWF-400 | 44 | 7 | 400*400 | 0.22-100 | 0.3 | 17.6 | 3 | 1350x600x1000 |
