Handled Type 3.0 Inch Display Visual Laryngoscope for ICU Emergency Clinical Airway Intubtion
Handled Type 3.0 Inch Display Visual Laryngoscope for ICU Emergency Clinical Airway Intubtion
HAIYE MEDICAL EQUIPMENT has been devoted to the R&D and production of products in the video medical field, and has developed successively many kinds of products: direct laryngoscopes, video laryngoscopes, video rigid endoscopes, disposable hysteroscopes, video flexible endoscopes, disposable uroscopes...
Choose HAIYE, Choose Professional!

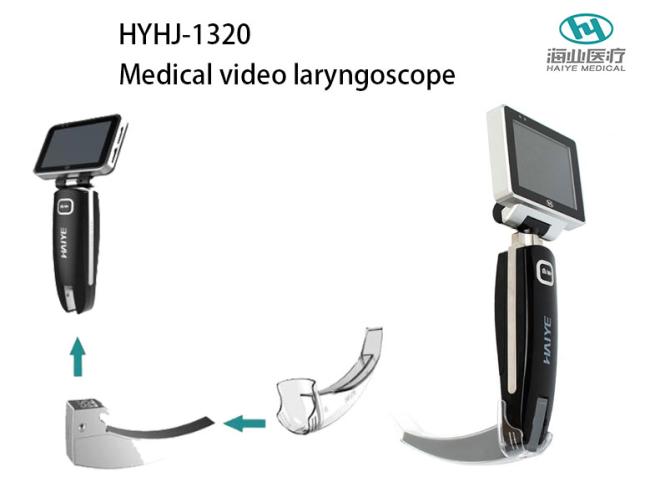

Main Product Display-HYHJ-1320 Video laryngoscope
Large Display Screen over 6hs Battery Life Suitable for Different Size Blades CMOS Double anti-fog Carema

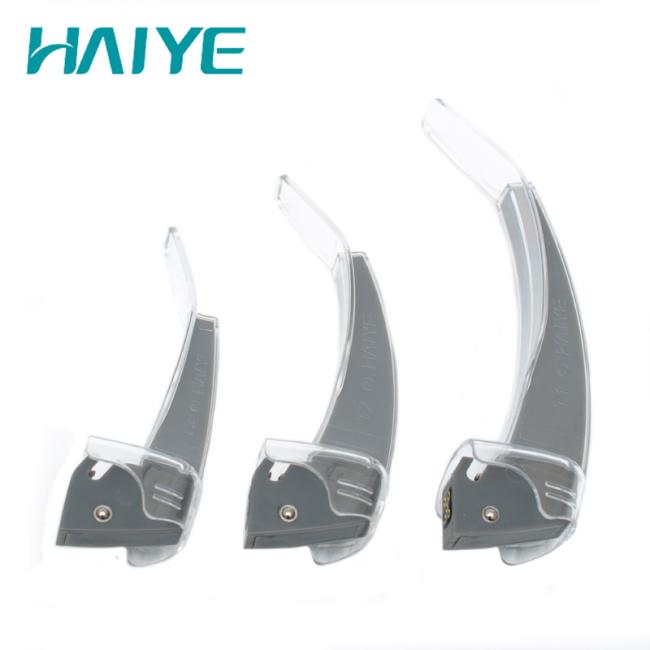

Disposable Aseotic Packagin Blades reduce Cross Infection One Key Boot Without Pre Heating
technical parameter of HAIYE video laryngoscope 1320
◆ Resolution: 960×480 Pixels: 2 million Effective depth of field: 3～100mm
◆ Field of view: 70±2º Battery life: ≥6h Charging time: ≤4h
◆ Battery life: cycle charging > 800 times Display: 3"TFT color display
◆ Built-in high-power waterproof LED light source, illuminance: ≥3000lux
◆ The rotation angle of the display back and forth: 0º～135º Left and right rotation angle: 0º～275º
Hd output, data storage, large capacity export and other functions, the product has photography, freeze frame, video
Technical Feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Carema Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Roatate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 3 Disposable blades, aseptic packaging for single use | |
|
Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continous use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
-
Welcome to inquiry if you have any interests!
OEM order is acceptable.
