Medical Surgical Endoscope Digital Laryngoscope 2 million Pixels Laryngoscope
Medical Surgical Endoscope Digital Laryngoscope 2 million Pixels Laryngoscope
Product Description
HYHJ-1330 Medical Visual Laryngoscope
◆The video laryngoscope is made of stainless steel, the shell is reinforced by the production process of the whole mold, and the body is more durable
◆Imported large-capacity lithium battery video laryngoscope can support more than 350 minutes of continuous use
◆Compared with the traditional fiberoptic laryngoscope, the video laryngoscope is more powerful and can take photos, videos, freeze frames, and store the captured images and images.
◆The video laryngoscope camera system has an anti-fog function for up to 3 minutes, and a large angle of rotation, which can achieve no blind spot intubation

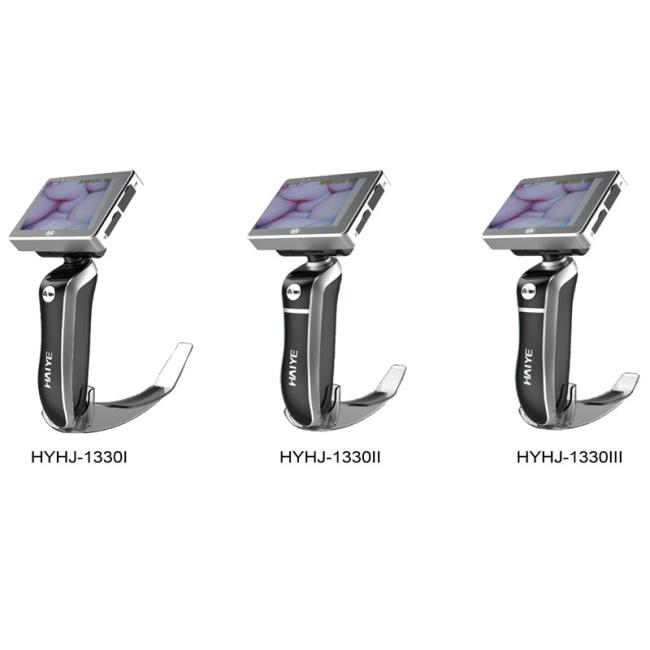

◆This video laryngoscope is available in three different sizes for adults, children and neonates.
◆ Resolution:960×480 and Pixel:2 millon, video laryngoscope can give you clearer view
◆ Effective depth of field:3～100mm
◆ Field angle:70±2º
◆ Charging time:≤4h Battery endurance:≥6h
◆ Battery life: Cyclic charging＞800 times
◆ Display: 3 "TFT color display screen
◆ Light source with high power waterproof LED light source, light illuminance: ≥3000lux
◆ Rotation Angle: before and after :0º～135º; Left and right :0º～275º
Work Environment:
◆ Humidity:≤80%
◆ Temperature:5℃～40℃
◆ Charger input:100～240V,50/60Hz,0.35A
◆ Atmospheric pressure:860hpa～1060hpa
◆ Charger output:5V,2000mA
Technical Feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Carema Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Roatate angle | front to back: 135 º, left to right: 275 º | |

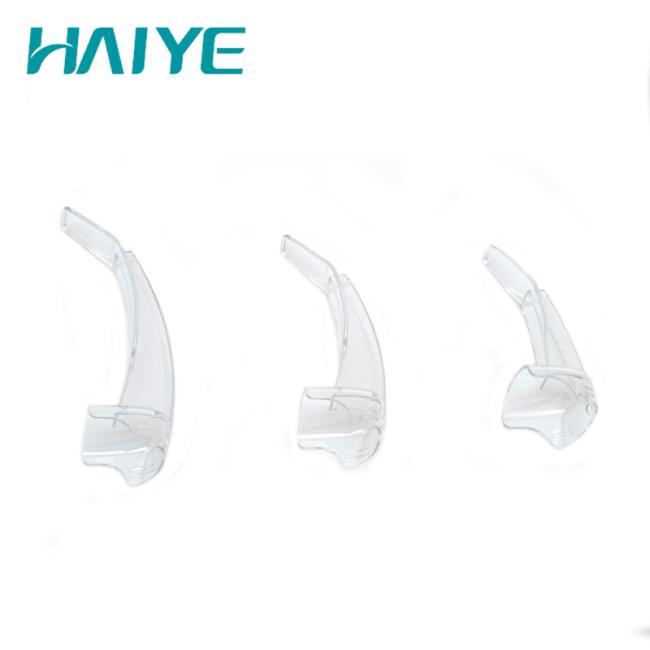

| laryngoscope | 3 Disposable blades, aseptic packaging for single use | |
|
Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continous use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Welcome to inquiry if you have any interests!
OEM order is acceptable.
