Laboratory Electric Power Testing Equipment Astm B-117 Saline Water Test Machine Salt Spray Chamber
Laboratory Electric Power Testing Equipment Astm B-117 Saline Water Test Machine Salt Spray Chamber
Description
Salt spray testing machine is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding, and rust-proof of greasing.
Salt spray corrosion machine have been thought as the most cost-effective corrosion test solution in the market which makes your in-house tests affordable.
Specification
| Internal Dimension W*H*D(mm) | 1200*1000*500mm |
| External Dimension W*H*D(mm) | 2050*1250*1400mm |
| Lab Capacity(L) | 108 |
| Saline Capacity(L) | 15 |
| Enter./Inter.Material | P.V.C&P.P |
| Compressed Air Pressure(kgf) | 1.0-6.0 |
| Weight(kg) | 68 |
| Power Source |
220V 60/50HZ |
Structure:

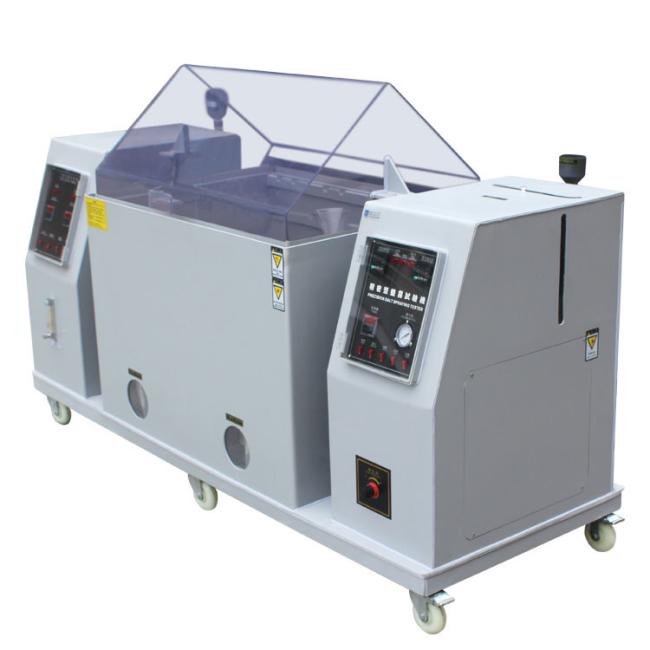

1. The Salt Spray and Salt Fog Corrosion Test Chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
Features
2. Reservoirs with mixing system on stand.
3. Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4. Exposure zone lined with corrosion-resistant PVC sheets.
5. Clear cover allows viewing of test conditions.
6. Peaked cover prevents dripping of condensation onto samples.
7. Water seal and water level protection system.
8. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9. Automatic DI water fills to humidifying tower.
10. Digital temperature control.
11. Integral over-protection on heaters.
12. Low water cut-off protection on humidifying tower.
Use Requirements
1.The distance between the test chamber and the test chamber shall be sixty centimeters or more.
2. ISO salt spray test machine temperature of the equipment should be stable between fifteen and thirty degrees Celsius.
3. Do not be exposed to sunlight or other strong light sources.
4. Avoid strong gas flow. If it cannot be avoided completely, there should be no airflow directly to the box. High concentrations of dust and corrosive substances are not allowed in the environment.
Details Images
1.What are the different types of salt spray test machine?
2.What is a salt spray tester chamber?
3.What is a salt spray cabinet?
4.What is a salt spray corrosion test?
