Environmental Corrosion Salt Spray Test Chamber for Nss Cass Test Machine Multifunction Hot-sale Products
Environmental Corrosion Salt Spray Test Chamber for Nss Cass Test Machine Multifunction Hot-sale Products
Information:
The SAO series salt spray test chamber produced by our company is designed to test the corrosiveness of products after corrosion treatment of various material surfaces such as electroplating, anodizing, painting, oiling and rust removal; thus analyzing and evaluating the samples under specific environmental conditions.
Specification
| Dimensions: | 108L, 270L, 600L, 1440L |
| External Dimension W*H*D(mm) | 2050*1250*1400mm |
| Lab Capacity(L) | 108 |
| Saline Capacity(L) | 15 |
| Temperature Range | 35°C~55°C |
| Compressed Air Pressure(kgf) | 1.0-6.0 |
| Product name: | Environmental Salt Spray Test Chamber Corrosion Test Machine Multifunction Hot-sale Products |
| Power Source |
AC220/380V 50HZ |

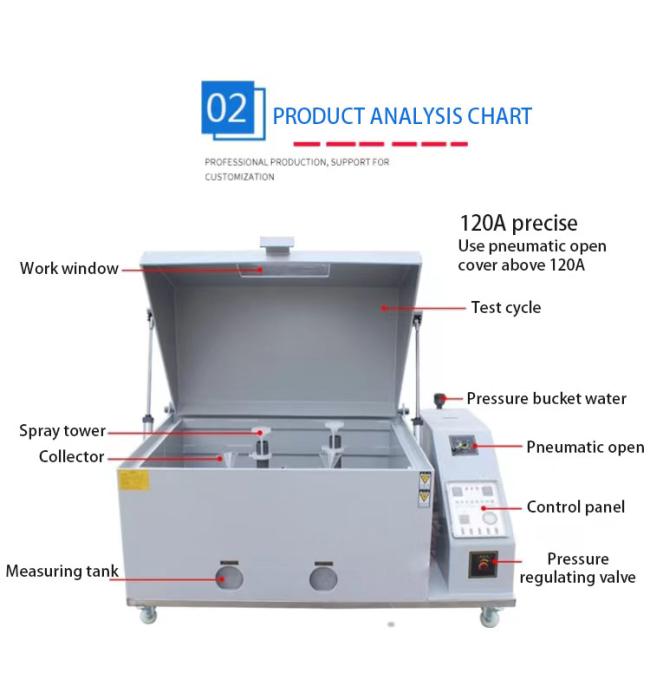

Structure:
1. The Salt Spray and Salt Fog Corrosion Test Chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
Features
2. Reservoirs with mixing system on stand.
3. Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4. Exposure zone lined with corrosion-resistant PVC sheets.
5. Clear cover allows viewing of test conditions.
6. Peaked cover prevents dripping of condensation onto samples.
7. Water seal and water level protection system.

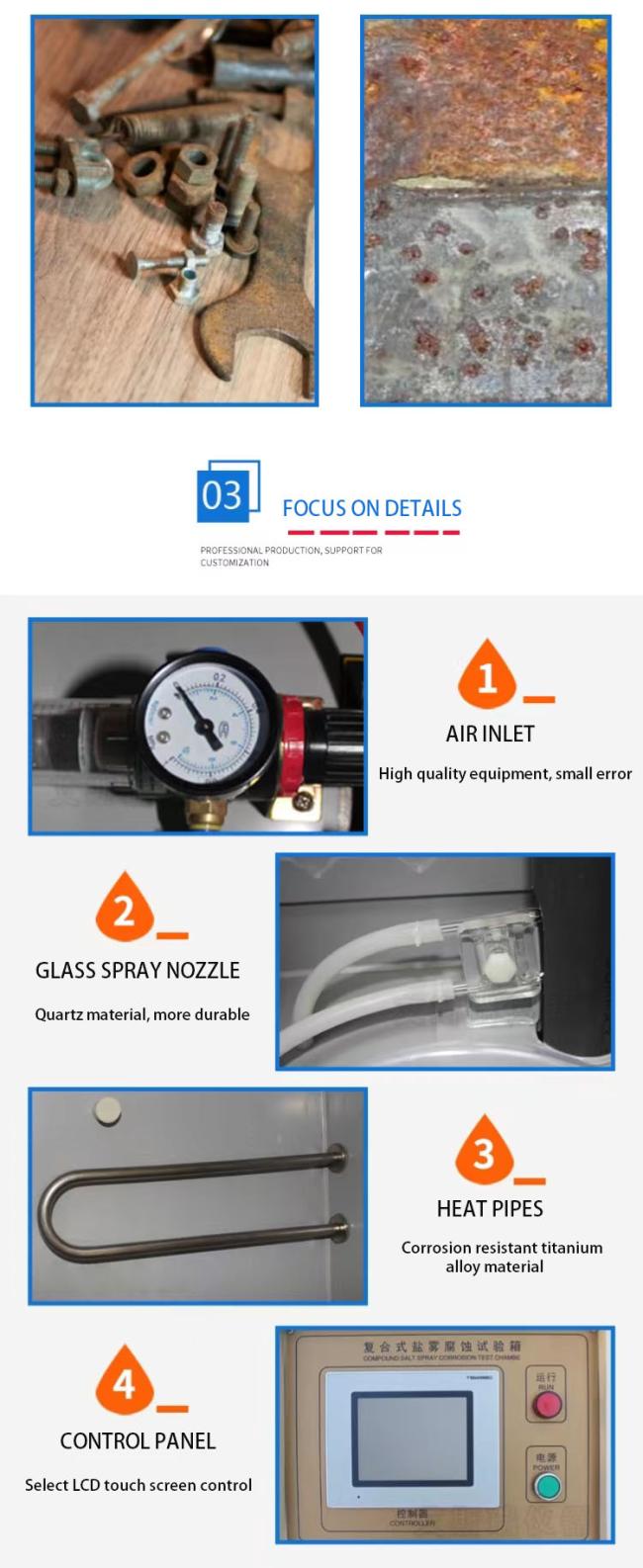

8. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9. Automatic DI water fills to humidifying tower.
10. Digital temperature control.
11. Integral over-protection on heaters.
12. Low water cut-off protection on humidifying tower.
GB/T10125-1997,GB/T10587-2006,GB/T1771-2007,GB10593.2-1990 ,QB/T 3826-1999
