Tungsten Unground Carbide Rods K20 14.4mm Diameter For Hardened Steel

Price Negotiable

Price: negotiable

MOQ: 10pc

Delivery Time: Standard products in one week

Brand: OUQI

Product Description

K20 Unground carbide rods with Nano Grain size for hardened steel

ISO	Grain size	Cobalt	Density	Hardness	T.R.S	k1C	Applications
Code	μm	%	g/cm3	HRA	N/mm2	Mpa.m1/2	Applications
K10-K20	0.2	9	14.45	94	4200	9.2	Nano grain size, with high wear resistance and toughness, suitable for finishing of hardened steel, high-precision and high-mirror processing of graphite, plastic, CFRP, stainless steel and aluminum alloy. Suitable for making 0.3-0.5mm drills.

Specification:

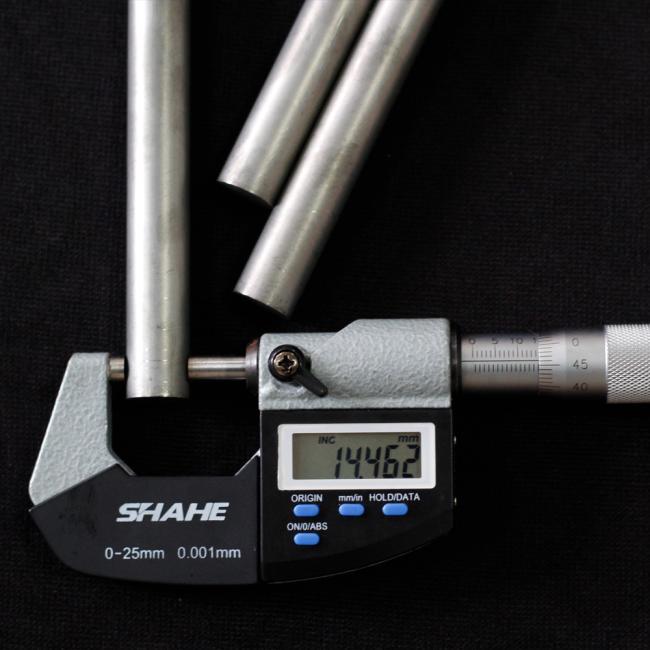

Unground Diameter: 14.3mm +0.5

Length 330mm +5mm or as per required

ISO grade K10/K20

Grain size: 0.2μm

Applications:

Nano grain size, with high wear resistance and toughness, suitable for finishing of hardened steel, high-precision and high-mirror processing of graphite, plastic, CFRP, stainless steel and aluminum alloy. Suitable for making 0.3-0.5mm drills.

General tolerance for the raw sintered solid carbide rods
Diameter	Tolerance	Length	Tolerance	Straightness	Tolerance
0,5- 3,5	+0,25/+0,35	＜100.0	+0.5/+1.0	0,6-4	0,10
4,0- 6,0	+0,25/+0,40	100.0-165.0	+1.0/+2.5	4,5-8	0,12
6,5-12,0	+0,30/+0,45	165.0-335.0	+1.0/+6.0	8,5-12,0	0,15
12,5-16,0	+0,35/+0,50			12,5 - 20	0,20
16,5- 22,0	+0,40/+0,55			≥20,5	0,24
22,5-45,0	+0,45/+0,60

Description:

100% virgin material, no recycled material
Spray drying tower and HIP sintering furnace
Constant excellent quality
Large stock for all sizes
100% inspected before delivery
Fast delivery time, regular products can be shipped in 3 days.
Excellent grinding quality, Straightless could be 0.05 or 0.02.

Diameter mm		Length mm		Diameter mm		Length mm
D	Tolerance	Length	Tol.	D	Tolerance	Length	Tol.
1.16	-0/+0.15	330	0/+0.5	16.20	-0/+0.45	330	0/+0.5
1.65		330	0/+0.5	17.20		330	0/+0.5
1.80		330	0/+0.5	18.20		330	0/+0.5
2.20	-0/+0.20	330	0/+0.5	19.20		330	0/+0.5
2.70		330	0/+0.5	20.20		330	0/+0.5
3.25		330	0/+0.5	21.20	-0/+0.55	330	0/+0.5
3.70		330	0/+0.5	22.20		330	0/+0.5
4.20		330	0/+0.5	23.20		330	0/+0.5
4.70		330	0/+0.5	24.2		330	0/+0.5
5.20	-0/+0.25	330	0/+0.5	25.2	-0/+0.65	330	0/+0.5
5.70		330	0/+0.5	26.2		330	0/+0.5
6.20		330	0/+0.5	28.2		330	0/+0.5
6.70		330	0/+0.5	30.2		330	0/+0.5
7.20	-0/+0.35	330	0/+0.5	32.2		330	0/+0.5
7.70		330	0/+0.5
8.20		330	0/+0.5
8.70		330	0/+0.5
9.20		330	0/+0.5
9.70		330	0/+0.5
10.20		330	0/+0.5
10.70		330	0/+0.5
11.20		330	0/+0.5
11.70		330	0/+0.5
12.20		330	0/+0.5
12.70		330	0/+0.5
13.20		330	0/+0.5
13.70		330	0/+0.5
14.20		330	0/+0.5
14.70		330	0/+0.5
15.20		330	0/+0.5
15.70		330	0/+0.5
