6% Cobalt K10 Tungsten Carbide Burr Blank BSC HRA 91 For Metal Brass
Price:
negotiable
MOQ:
10pc
Delivery Time:
Standard products in one week
Brand:
TGC
Product Description
K10 With 6% Cobalt For Brass BSC-2 Tungsten Carbide Burr Blank HRA 91
Dimension:
Diameter: 5/16"
Length: 3/4"
Carbide burrs type: BSC

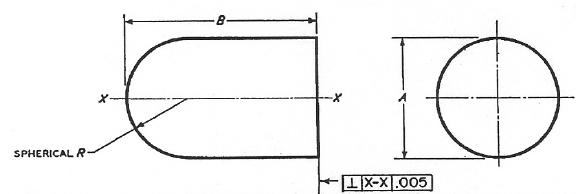

Regular sizes for BSC carbide burrs
| BLANK DESIGNATION | A | B | R | ||
| NOMINAL | ACTUAL | NOMINAL | ACTUAL | ||
| * BSC-53x 9/32 | 3/16 | 0.205 ±0.005 | 9/32 | 0.281±0.010 | 0.103 |
| BSC-51 | 1/4 | 0.265±0.005 | 1/2 | 0.500±0.010 | 0.133 |
| *BSC-51x1 | 1/4 | 0.265±0.005 | 1.000±0.010 | 0.133 | |
| BSC-2 | 5/16 | 0.327±0.005 | 3/4 | 0.750±0.010 | 0.164 |
| *BSC-2x1 | 5/1 6 | 0.327±0. 005 | 1 | 1 .000±0.010 | 0.164 |
| BSC-3 | 3/8 | 0.390±0.005 | 3/4 | 0.750±0.010 | 0.195 |
| BSC-3x1 | 3/8 | 0.390±0.005 | 1 | 1.000±0.010 | 0.195 |
| BSC-3x1-1/2 | 3/8 | 0.390±0.005 | 1-1/2 | .1. 500 7±0.010 | 0.1 95 |
| BSC-4 | 7/1 6 | 0.453±0.005 | 1 | 1.000±0.010 | 0.227 |
| BSC-5 | 1/2 | 0.515±0.005 | 1 | 1.000±0.010 | 0.258 |
| + BSCM-10 | 10mm | 10.1mm +0.3/-0.0 | 20mm | 20. 1mm +0.41-0.0 | 5mm |
| BSC-6 | 5/8 | 0.640±0.005 | 1 | 1.000±0.010 | 0.320 |
| + BSCM-12 | 12mm | 12. 1mm +0.3/-0.0 | 25mm | 25.1mm: +0.41-0.0 | 6mm |
| BSC-7 | 3/4 | 0.767 ±0.006 | 1 | 1.000±0.010 | 0.384 |
| * BSC-7x1-1/2 | 3/4 | 0.767±0.006 | 1-1/2 | 1.500±0.010 | 0.384 |
| BSC-8 | 7/8 | 0.892±0.006 | 1 | 1.000±0.010 | 0.446 |
| * BSC-9 | 1 | 1.019±0.007 | 1 | 1.000±0.010 | 0.510 |
General Carbide grades
Cobalt 6%
Hardness 90-91 HRA
Density 14.85-14.95 g/cm3
Grain size 1.2-3.0μm
Tungsten carbide burrs can be used with both electrically-powered and pneumatically-powered hand-held tools to cut the most diverse types of material, such as aluminum, brass, titanium alloys, cast iron, copper, zinc alloys, bronze, nickel, various plastics, alloy steels, etc. They can be used on a wide range of pneumatic, electric and flexible drive tools.
Description of our carbide burrs
- Effective freehand stock removal
- Weld preparation and removal (no contamination)
- Dressing and fettling
- Long lifetime
- High safety during working
