Mini SC Waterproof Fiber Optic Connector For Huawei Outdoor Patch Cord
Mini SC Waterproof Connectors for Huawei Outdoor Fiber patch cord
Description

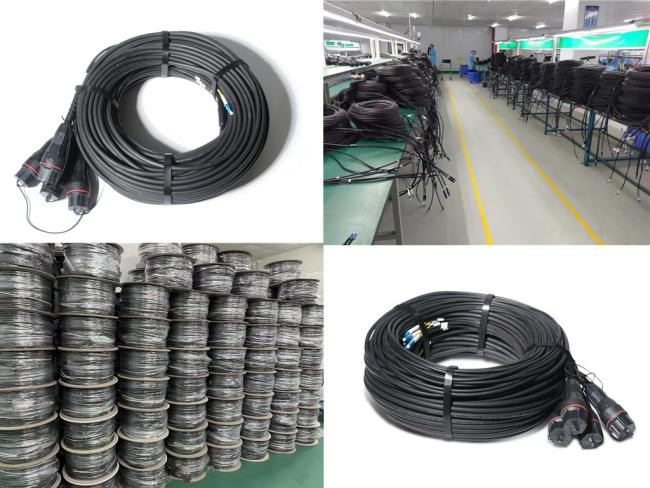

Outdoor patch cord assemblies provide an cost effective, easy, environmental seal and mechanical protection for 1 fibers simplex SC style connections. Inside cover can protect ferrule end face far away scratch when mating with receptacle; Special fool-proofing design equal to HUAWEI Mini SC connector has blind-mating function; One hand Bayonet-style mechanical latch. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch. It provides quick installation solutions and has good performance on mating receptacle / Adapter.
Cable can be armoured or non-amoured. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications.
Specification
| InsertionLoss(IL) | MM | SM Super PC | SM Ultra PC | SM Angle PC | SM Angle PC Premiun |
| 0.15dB type | 0.15dB type | 0.15dB type | 0.15dB type | 0.1dB max | |
| ReturnLoss(RL) | >30dB | >45dB | >50dB | >60dB* | |
| Operating temperature | −40℃ to +50℃ | ||||
| Durability | min 1000 cycles | ||||
| Assemblity | glue and polish | ||||
| Connection | physical contact | ||||
| Lock mechanism | coupling nut and snap−on | ||||
| Standards | Telcordla GR−3120 | ||||
| Ferrule material | full ceramic zirconia | ||||
Application
- Telecom networks 5G tower;
- CATV, LAN&WAN.
- Broadband;
- CPRI, FTTP, FTTA
More Question
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.
2. What is the lead time?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.
3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
4. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Paypal.
Could also support L/C,Credit terms.
5. What is your warranty time
We promise 3 years warranty for all products shipped from us.
6. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange.
7. Could i use our own logo and label?
Yes,we could provide a OEM service and make the products with your own label.
