CFP2 TO QSFP28 Adaptor 100G Module For FTTB
100G CFP2 TO QSFP28 Adaptor Module
Description
The CFP2-QSFP28 Adaptor Module converts a 100 Gigabit CFP2 port into a 100 Gigabit QSFP28 port. With the Adaptor Module, customers have the flexibility to use the 100 Gigabit CFP2 interface port of a switch with CFP2 modules or QSFP28 modules.
| Product Name: |
CFP2-QSFP28 Adaptor Module |
Model Name: |
CFP2-QSFP28 |
|---|---|---|---|
|
Product Type: |
Adaptor Module |
Data Rate: | 100Gbps |
|
Power consumption: |
Max: 0.25W (3.3V voltage,max current 0.08A) |
operating temperature: |
-40 to 85 °C |
|
QSFP28 port: |
I2C |
Dimensions: |
12.4mmHeight x 41.5Width x 108.2 Depth |
Features
- CAUI -4 Electrical Interface:4 Lanes @25.78Gbit/s for CFP2 port
- CAUI -4 Electrical Interface:4 Lanes @25.78Gbit/s for QSFP28 port
- Hot Pluggable
- MDIO, I2C Support
- Compliant to CFP2 MSA
- RoHS-6 compliant
- Case operating temperature: -40 to 85 °C

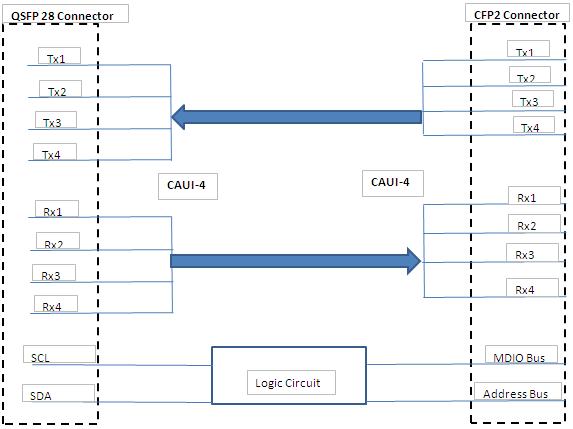

Block Diagram
CAUI-4 Interface (QSFP28 port&CFP2 port)
| CAUI Receiver Parameters | Symbol | Min. | Typ. | Max. | Unit | Note |
| Signal Rate Per Lane | 25.78 | Gb/s | ||||
| Differential data output swing per lane | Vout,pp |
CAUI-4 as defined by IEEE P802.3bm
|
mV | |||
| Data output rise time | tr | ps | ||||
| Data output fall time | tf | ps | ||||
| CAUI Transmitter Parameters | Symbol | Min. | Typ. | Max. | Unit | Note |
| Signal Rate Per Lane | 25.78 | Gb/s | ||||
| Frequency offset | -100 | 100 | ppm | 100G Ethernet | ||
| -20 | 20 | ppm | OTU4 | |||
| Input differential impedance | Rin |
CAUI-4 as defined by IEEE P802.3bm
|
Ω | |||
| Differential data input swing per lane | Vin,pp | mV | ||||
| Data input rise time tolerance | tr | ps | ||||
| Data input fall time tolerance | tf | ps | ||||
