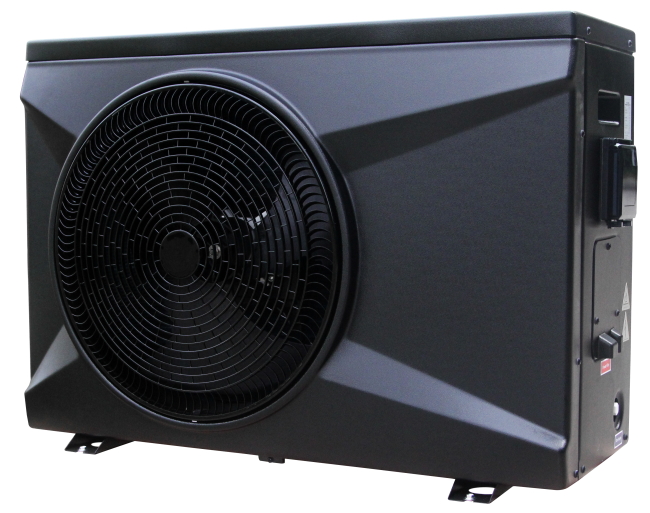

Electric Swimming Pool Air Source Heat Pump 30KW 35KW 380V R32 High Efficiency
30KW/35KW 380V R32 High efficiency electric Swimming Pool Air Source Heat Pump
Description
Sunareast Pool Heat pumps have a wide range of models for you to choose from, from 7KW to 35KW. You can choose the right power for your needs, and the new control panel with wired extensions in the 20-meter feature Eco Inverter and power inverter operating modes. Meanwhile, the pool heat pump has a built-in WiFi module that can be controlled remotely from your smartphone.
Features:
1.High-end Mitsubishi compressor.
2. Full Inverter with R32 refrigerant.
3. Built in WiFi function.
4.High efficiency COP up to 16.
5.DC Inverter fan motor.
Product Parameters
| Model No. | BYC-007TC1 | BYC-010TC1 | BYC-013TC1 | BYC-017TC1 | BYC-021TC1 | BYC-030TC1 | BYC-035TC1 | BYC-030TC3 | BYC-035TC3 |
| * Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | |||||||||
| Heating Capacity (kW) | 7.6~1.7 | 9.5~2.3 | 13~3.0 | 17~3.8 | 21~4.8 | 28~6.8 | 35~8.8 | 28~6.8 | 35~8.8 |
| Power Input (kW) | 1.12~0.11 | 1.40~0.15 | 1.91~0.19 | 2.5~0.24 | 3.09~0.30 | 4.12~0.43 | 5.15~0.56 | 3.97~0.43 | 5.15~0.56 |
| COP | 15.8~6.8 | 15.8~6.8 | 16~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 |
| * Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | |||||||||
| Heating Capacity (kW) | 6.1~1.4 | 7.6~1.9 | 9.8~2.3 | 13.5~3 | 16.5~3.8 | 23~5.5 | 25.5~6.4 | 23~5.5 | 25.5~6.4 |
| Power Input (kW) | 1.24~0.18 | 1.55~0.25 | 1.96~0.30 | 2.76~0.39 | 3.37~0.5 | 4.7~0.72 | 5.2~0.84 | 4.7~0.72 | 5.2~0.84 |
| COP | 7.6~4.9 | 7.6~4.9 | 7.6~5 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 |
| * Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | |||||||||
| Cooling Capacity (kW) | 4.2~1.0 | 5.3~1.3 | 7.2~1.7 | 9.4~2.1 | 11.6~2.7 | 14.9~3.8 | 19.3~4.9 | 14.9~3.8 | 19.3~4.9 |
| Power Input (kW) | 1.11~0.15 | 1.4~0.19 | 1.89~0.25 | 2.47~0.31 | 3.05~0.4 | 3.92~0.57 | 5.08~0.73 | 3.92~0.57 | 5.08~0.73 |
| EER | 6.6~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 |
| * General data | |||||||||
| Power supply | 220~240V/1/50 | 380~415V/3/50 | |||||||
| Max Power Input (kW) | 1.55 | 1.78 | 2.2 | 2.6 | 3.2 | 4.45 | 4.76 | 6.43 | 6.93 |
| Max Current (A) | 7.3 | 8.3 | 10.2 | 12 | 14.7 | 20.4 | 30 | 7.9 | 11.3 |
| Water Flow Volume (m3/h) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 9 | 12 | 9 | 12 |
| Refrigerant | R32 | ||||||||
| Heat Exchanger | Titanium | ||||||||
| Air Flow Direction | Horizontal | ||||||||
| Kind of defrost | by 4 way valve | ||||||||
| Working temp. range (℃) | -15~43 | ||||||||
| Casing Material | ABS | ||||||||
| Water Proof Level | IPX4 | ||||||||
| Noise level 1m dB(A) | 39~49 | 40~52 | 42~53 | 43~55 | 45~56 | 47~58 | 49~59 | 47~58 | 49~59 |
| Noise level 10m dB(A) | 20~29 | 20~32 | 22~33 | 23~35 | 25~36 | 27~38 | 29~39 | 27~38 | 29~39 |
| Net Weight (kg) | 42 | 43 | 53 | 54 | 58 | 88 | 98 | 88 | 98 |
| Gross Weight (kg) | 53 | 54 | 64 | 65 | 69 | 99 | 110 | 99 | 110 |
| Net Dimensions (mm) | 864*349*592 | 925*364*642 | 1084*399*737 | ||||||
| Package Dimensions (mm) | 930*400*640 | 990*435*760 | 1146*460*862 | ||||||
