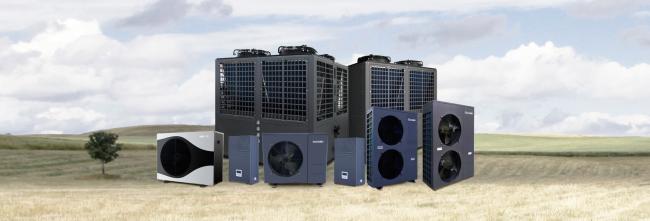

R410a Commercial Heat Pump Water Heater 38 KW Outdoor Heat Pump

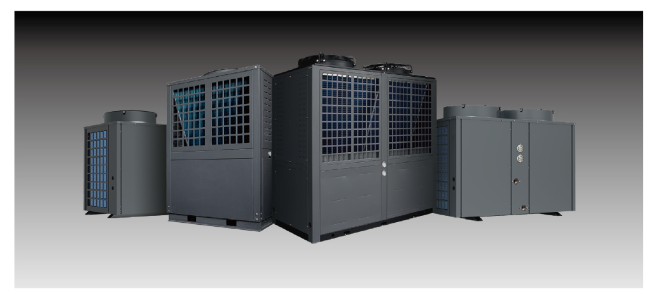

Product

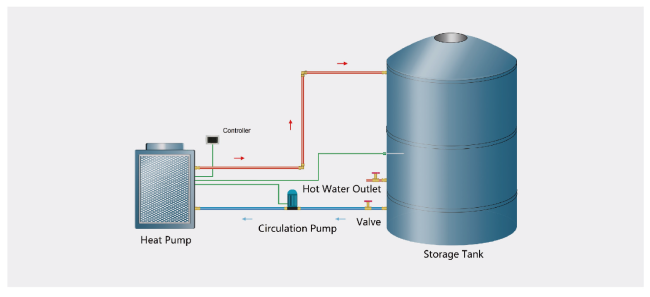

Application

We also provide hot water solutions or heating solutions for hotels,

schools,hospital,restaurants!

  Features

make the world cleaner

• Modus: The mainboard has RS 485 communication connection, can communicate via Modbus.
• Full-automatic: Adopt the smart controller, doesn't need manual operation.
• High Efficiency: Adequate heat transfer area ensures high COP and performance.
• Comfort: High water temperature up to 60°C, large hot water production.
• Multiple protections: The multiple protective designs ensures the system's long service life and
  stable operation, including high-pressure protection, low-pressure protection, high voltage/cur-
  rent protection, high-temperature protection, frosting protection, and anti-freeze protection.
• Environmentally friendly: Use the environmentally friendly refrigerant R410A.
• Wide Application: Operation ambient temperature -15°C~43°C, the system can be used for hotels,
  hospitals, schools, factories, and so on.

      Product Parameters

Model No. (Sunrain)	RS-019TA1	RS-022TA1	RS-032TA1	RS-038TA1
Power Supply	380~415V/3/50Hz 380~415V/3/50Hz 380~415V/3/50Hz 380~415V/3/50Hz 380~415V/3/51Hz 380~415V/3/51Hz 380~415V/3/50Hz 380~415V/3/50Hz
Heating Capacity (KW)	18.00	22.00	32.00	38.00
Rated Input Power (KW)	4.20	5.15	7.40	8.75
Rated Current (A)	7.51	9.21	13.51	15.64
COP requirement	4.29	4.27	4.32	4.34
Max Power Input(kW)	7.20	8.70	12.00	13.90
Max Current(A)	12.90	15.60	21.60	24.85
Water Temp. Range (℃)	Default 55, 28~60
Working temp. range(℃)	-15~43 -15~43 -15~43 -15~43 -15~43 -15~43 -15~43 -25~43
Anti-electric chock class	I
Water proof grade	IPX4
Water flow volume(L/h)	4000	4500	6900	8000
Water Pressure Drop(kPa)	50	50	60	60
Compressor brand and Type	Copeland/Scroll	Copeland/Scroll	Copeland/Scroll	Copeland/Scroll
Compressor qty.	1	1	2	2
Fan motor qty.	1	1	2	2
Color	Black, Matte surface
Air Flow Direction	Vertical
Safeties	LP & HP Cutout, Current & Voltage, Overheat, Temperature, Pressure Protection
Defrosting	Auto and By manual
Dimensions(L*W*H)(mm)	752*691*1000	752*691*1000	1410*748*1000	1410*748*1000
Noise(dB)	≤57	≤57	≤59	≤59
Net Weight(kg)	155	155	259	259
Water connection(mm)	male 25	male 25	female 32	female 32
Gross Weight(kg)	163	163	269	269
Packing Dimensions(L*W*H)(mm)	792*741*1151	792*741*1151	1460*798*1151	1460*798*1151





Sample Project













Why Choose Us

SUNRAIN is one of the biggest suppliers in CHINA. With more than 10 years' experience in world trade, we can provide the best prices, the highest quality, and superior service. We inspect our products before shipping them out and provide a 2-year warranty for all products. We promise to give you a full refund if the products are not as described.





FAQ

1. who are we?
We are based in Guangdong, China, start from 2012,sell to Domestic Market(85.00%),Western Europe(3.00%),Southeast Asia(3.00%),Southern Europe(3.00%),Northern Europe(2.00%),Africa(2.00%),North America(1.00%),South America(1.00%). There are total about 501-1000 people in our office.

2. how can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
heat pump water heater, air-source heat pump, swimming pool heat pump, inverter heat pump, EVI heat pump

4. why should you buy from us, not from other suppliers?
Sunrain is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 50 employees. Sunrain spent over 6 million RMB to build the most advanced labs.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Portuguese,German,French
