60 Degree High Cop Air Source Low Energy Heat Pump R32 6kw Floor Mounted 1100mm
60 Degree TUV High Cop Air Source Low Energy Heat Pump R32 6kw Floor Mounted 1100mm
Description of Low Energy Heat Pump:
A heat pump takes heat from the ground or air around a building and increases it to a temperature that keeps homes and businesses warm inside.
Using DC inverter technology, SolarEast products can precisely control the motor speed, ensuring that only the power required to fully match the actual load is used, which is more energy efficient and environmentally friendly than the motors traditionally used for heat pumps, and enables users to reduce energy expenditure.
The precise control of the compressor speed ensures that the water temperature is kept within a much smaller range of the set temperature, allowing the user to remain active in a comfortable environment.At the same time, since the inverter adjusts the rotation frequency of the motor according to the energy demand, a heat pump system with an inverter reaches a comfortable state faster than a heat pump system without an inverter, reducing startup time and reducing noise.
Features of Low Energy Heat Pump:
1. Energe class:A+++
2. Full DC inverter Panasonic compressor and fan motor
3. -30℃ inverter EVI
4. WIFI control
5. R32 refrigerant.
Advantage of Low Energy Heat Pump:
Heat pumps are more energy efficient than fossil-fuel-reliant furnaces and air conditioners because they run solely on electricity. And they don't actually generate heat — remember, they just move it from one location to another — so they use less energy than other electric-powered heating and cooling systems, too.
Specification of Low Energy Heat Pump:
| Model: | BLN-010TB3 | ||
| Power Supply | V/Ph/Hz | 380~415/3/50 | |
| Nominal Heating (Max) (A7/6℃,W30/35℃) | Heating Capacity | kW | 10.58 (4.20-12.20) |
| Power Input | kW | 2.29 | |
| COP | W/W | 4.62 | |
| Nominal Heating (Max) (A7/6℃,W47/55℃) | Heating Capacity | kW | 9.28 |
| Power Input | kW | 2.97 | |
| COP | W/W | 3.12 | |
| Nominal Cooling (Max) (A35/24℃,W12/7℃) | Cooling Capacity | kW | 8.54 |
| Power Input | kW | 2.98 | |
| EER | W/W | 3.00 | |
| ERP Level(Outlet water temp. at 35℃) | / | A+++ | |
| ERP Level(Outlet water temp. at 55℃) | / | A++ | |
| Rated input power | kW | 3.83 | |
| Rated input current | A | 6.5 | |
| Refrigerant / Weight | / | R32/1.8 | |
| Rated water flow | m3/h | 1.75 | |
| Fan quantity | / | 1 | |
| Fan motor type | / | DC inverter | |
| Compressor | / | Panasonic / DC inverter / Rotary / EVI | |
| Circulating pump | / | Inverter type / Built-in | |
| IP Class | / | IPX4 | |
| Sound pressure at 1m distance | dB(A) | 52 | |
| Max outlet water temperature | °C | 60 | |
| Water piping connections | / | G1 | |
| Pressure drop at rating water flow | kPa | 27 | |
| Operating temperature range (Heating mode) | °C | -25~45 | |
| Operating temperature range (Cooing mode) | °C | 16~45 | |
| Unpacked Dimensions ( L×D×H ) | mm | 1100×445×850 | |
| Packed Dimensions ( L×D×H ) | mm | 1160×530×1010 | |
| UnPacked Weight | kg | 107 | |
| Packed Weight | kg | 119 | |

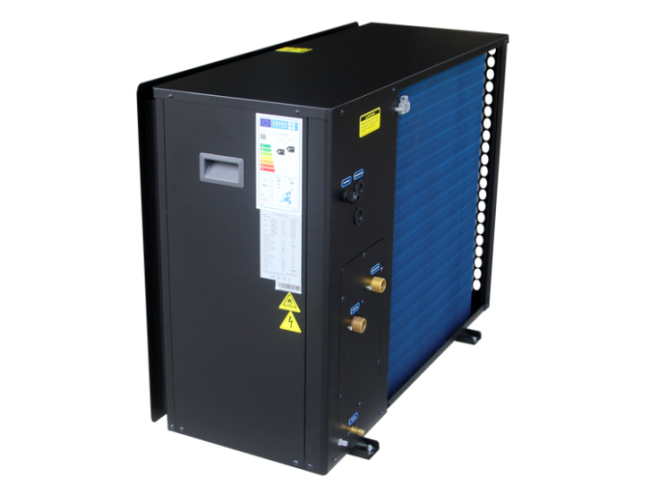

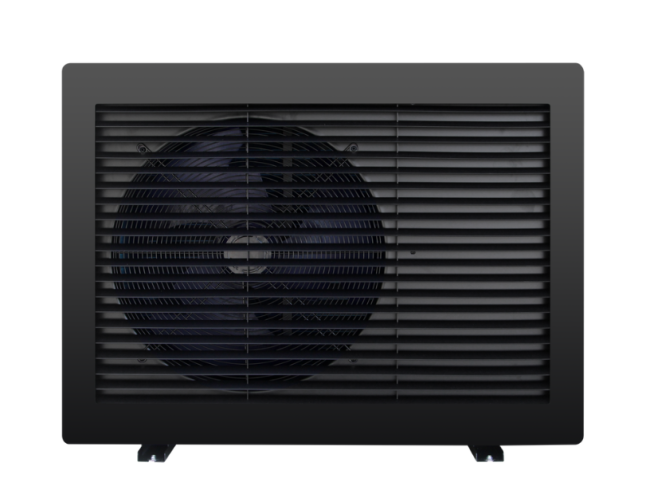

Finished product pictures:

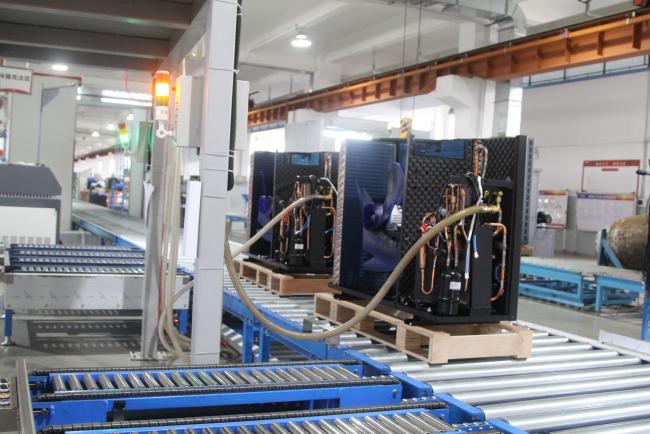

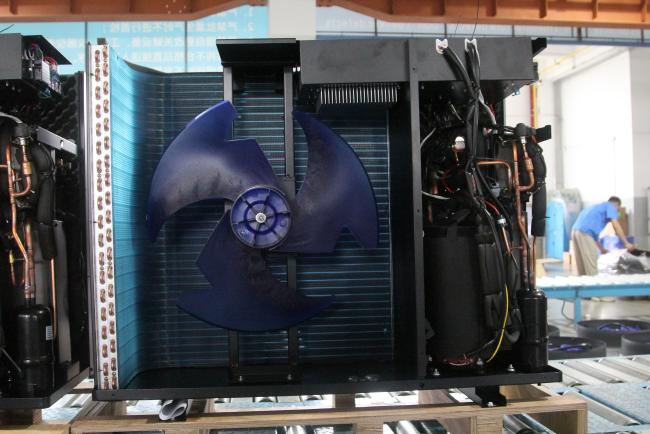

Product production pictures:
