9KW/12KW/15KW/18KW/26/KW/32KW Domestic R32 Air Source Heat Pumps In Multiple Power Options
Product Parameter
| Model | BLN-009TA1 | BLN-012TA1 | BLN-015TA1 | BLN-018TA1 | BLN-012TA3 | BLN-015TA3 | BLN-018TA3 | BLN-026TA3 | BLN-032TA3 | ||
| Power supply | V/Ph/Hz | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 380-415/3/50 | 380-415/3/50 | 380-415/3/50 | 380-415/3/50 | 380-415/3/50 | |
| Performance Condition: Outdoor air 7℃ / 6℃, Inlet / Outlet water 30℃ / 35℃ | |||||||||||
| Heating | Capacity | kW | 3.4 ~ 10.2 | 4.6 ~ 12.8 | 5.2 ~ 16.8 | 6.8 ~ 20.5 | 4.6 ~ 12.8 | 5.2 ~ 16.8 | 6.8 ~ 20.5 | 11.8 ~ 28.6 | 14.5 ~ 36.3 |
| (min-max) | |||||||||||
| Rated input | kW | 0.7 ~ 3.2 | 0.8 ~ 3.9 | 1.0 ~ 5.1 | 1.0 ~ 5.1 | 0.8 ~ 3.9 | 1.0 ~ 5.1 | 1.5 ~ 5.9 | 2.9 ~ 6.2 | 3.8 ~ 7.6 | |
| (min-max) | |||||||||||
| SCOP | 4.29 | 4.31 | 4.26 | 4.21 | 4.31 | 4.26 | 4.21 | 4.36 | 4.2 | ||
| Performance Condition: Outdoor air 7℃ / 6℃, Inlet / Outlet water 50℃ / 55℃ | |||||||||||
| Heating | Capacity | kW | 3.6 ~ 10.3 | 4.7 ~ 12.9 | 5.3 ~ 16.8 | 6.9 ~ 20.8 | 4.7 ~ 12.9 | 5.3 ~ 16.8 | 6.9 ~ 20.8 | 11.8 ~ 28.8 | 14.7 ~ 36.6 |
| Rated input | kW | 0.9 ~ 4.3 | 1.4 ~ 5.1 | 1.3 ~ 6.7 | 2.0 ~ 7.7 | 1.4 ~ 5.1 | 1.3 ~ 6.7 | 2.0 ~ 7.7 | 3.8 ~ 8.1 | 4.9 ~ 9.9 | |
| SCOP | 3.36 | 3.3 | 3.32 | 3.65 | 3.3 | 3.32 | 3.65 | 3.69 | 3.52 | ||
| Performance Condition: Outdoor air 35℃ / 24℃, Inlet / Outlet water 12℃ / 7℃ | |||||||||||
| Cooling | Capacity | kW | 2.1-8.2 | 2.6 ~ 9.1 | 3.6 ~ 11.5 | 4.2 ~ 16.8 | 2.6 ~ 9.1 | 3.6 ~ 11.5 | 4.2 ~ 16.8 | 5.2 ~ 19.5 | 6.2 ~24.5 |
| Rated input | kW | 1.4 ~ 4.5 | 1.9 ~ 4.7 | 2.0 ~ 7.8 | 2.8 ~8.9 | 1.9 ~ 4.7 | 2.0 ~ 7.8 | 2.8 ~8.9 | 4.8 ~ 9.3 | 5.1 ~ 11.4 | |
| EER | 2.82 | 2.77 | 2.86 | 2.98 | 2.77 | 2.86 | 2.98 | 2.83 | 2.96 | ||
| Energy class (SCOP) | Outlet water temp. at 35C | A++ | |||||||||
| Outlet water temp. at 55C | A++ | ||||||||||
| Refrigerant | Type | R32 | |||||||||
| Charged volume | kg | 1.5 | 1.6 | 3.2 | 3.2 | 1.6 | 3.2 | 3.2 | 5 | 6.8 | |
| Noise level | Heating | dB(A) | 45 | 45 | 48 | 48 | 45 | 48 | 48 | 50 | 50 |
| Cooling | dB(A) | 46 | 46 | 49 | 49 | 46 | 49 | 49 | 51 | 51 | |
R32 Refrigerant, Environmentally Friendly
The BLN series is equipped with R32 refrigerant, which has a lower global warming potential than traditional refrigerants. This environmentally friendly feature aligns with Solareast’s commitment to reducing its carbon footprint and environmental impact. R32 ensures optimal heating performance while contributing to a more sustainable, greener future for residential heating.
Stable Operation at -25°C
Solareast’s BLN series heat pumps are designed to provide reliable heating in extreme conditions, withstanding temperatures as low as -25°C. This stable operation ensures consistent, dependable heating performance even in the harshest winter climates, providing year-round warmth and comfort for homes located in cold regions or during severe weather conditions.
Renewable Energy
By utilizing renewable air-source energy, Solareast heat pumps offer an environmentally conscious solution for heating and cooling. The use of naturally replenishing air energy allows these units to provide high-efficiency heating, while reducing reliance on non-renewable resources, aligning with global sustainability efforts and supporting a greener environment.

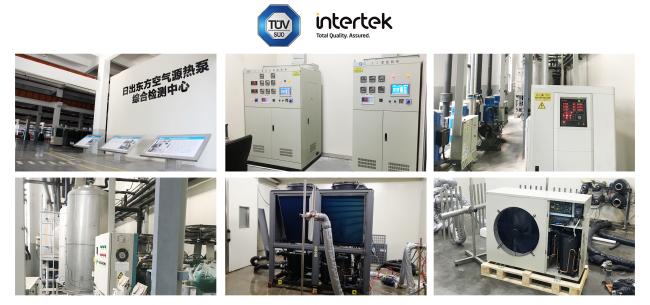

Advanced Laboratory
With an investment of $3 million, Solareast’s state-of-the-art laboratory is certified by TUV and Intertek, enabling comprehensive testing under extreme temperatures ranging from -30ºC to 52ºC. The facility ensures rigorous testing, including water drawdown and explosion-proof evaluations, guaranteeing that each heat pump meets the highest performance, safety, and reliability standards before reaching the market.

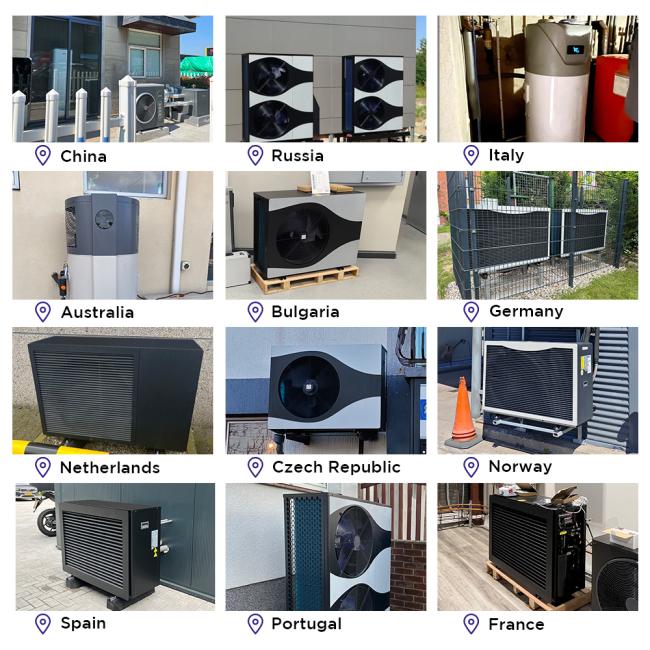

Solareast Projects All Over The World
With extensive project experience and strategic partnerships across the globe, Solareast has built a strong international presence. Its heat pumps are widely recognized for their reliability and efficiency in markets including Europe, the UK, Germany, France, Poland, the Netherlands, the Czech Republic, Australia, Italy, Russia, Spain, Portugal, and Norway.
More information:https://www.solareasthvac.com/
