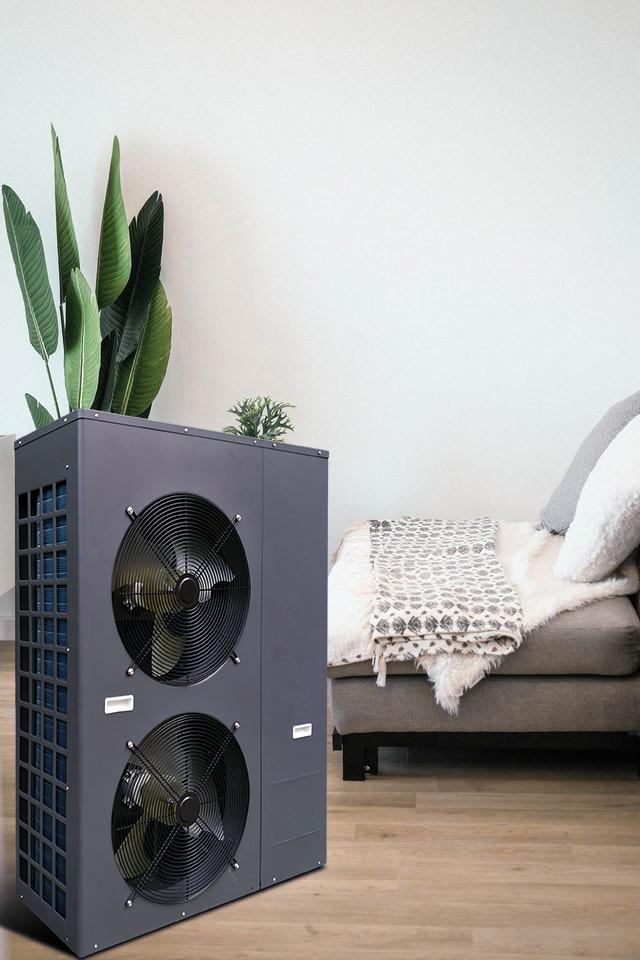

SUNRAIN Electric EVI Split Heat Pump Heating And Cooling System R410a
R410a Europe Standard Heat Pump With Split Heat And Cool TU
| Model | BLN-012TA3 |
| Outlet water temperature range | Space heating 25 to 55°C |
| Outlet water temperature range | Space cooling 7 to 25°C |
| Factory | Guangdong China |
SUNRAIN air-source heat pumps are more productive, safer, and healthier than gas boilers, helping families get more out of comfort with fewer energy sources.
SUNRAIN heat pumps make low CO2 systems such as heat pumps more affordable, so it makes more sense to install clean substitutes when boilers would naturally need to be replaceable.
Heat pumps generate about three times the quantity of energy they use by absorbing heat from the surroundings and can even do this at lower external temperatures. This makes them more efficient when compared to gas boilers.
Product Parameters-Hydronic Box
| Model | BLN-012TA3 | |||
| Power supply | V/Ph/Hz | 220-240/1/50 | ||
| Function | Heating and cooling | |||
| Outlet water temperature range | Space heating | °C | 25 to 55 | |
| Space cooling | °C | 7 to 25 | ||
| DHW | °C | 40 to 55 | ||
| Sound power level | dB(A) | 42 | ||
| Dimension (WxHxD) | mm | 465*245*750 | ||
| Packing (WxHxD) | mm | 515*320*880 | ||
| Net/gross weight | kg | 49/54 | ||
| Water circuit | Piping connections | mm | 1-1/4'' male | |
| Total water volume | L | 2.5 | ||
| Drainage pipe | mm | 9.0 | ||
| Expansion tank | Volume | L | 5 | |
| Max water pressure | MPa | 0.8 | ||
| Pressure relief valve | MPa | 0.6 | ||
| Water pump head | m | 6 | ||
| Refrigerant circuit | Liquid side | mm | φ9.52 | |
| Electric heater | Size | kW | 3.0 | |
| Location | Available in the buffer tank | |||
Sample Project
We are based in Guangdong, China, start from 2012,sell to Domestic Market(85.00%),Western Europe(3.00%),Southeast Asia(3.00%),Southern Europe(3.00%),Northern Europe(2.00%),Africa(2.00%),North America(1.00%),South America(1.00%). There are total about 501-1000 people in our office.
2. how can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
heat pump water heater, air-source heat pump, swimming pool heat pump, inverter heat pump, EVI heat pump
4. why should you buy from us, not from other suppliers?
Sunrain is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 50 employees. Sunrain spent over 6 million RMB to build the most advanced labs.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Portuguese,German,French
