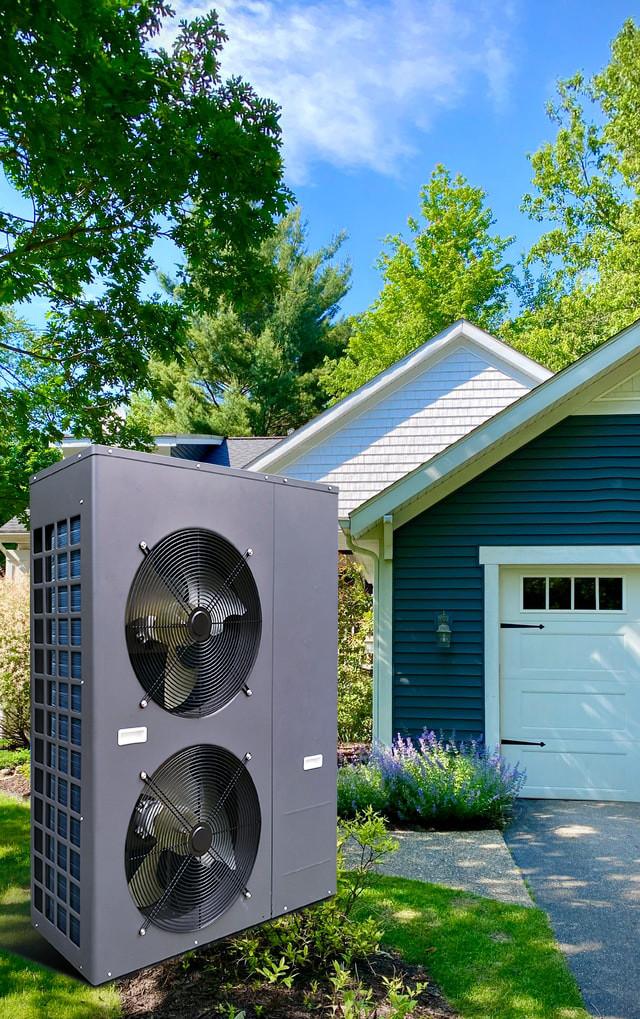

Free Standing 32KW Inverter Monoblock Heat Pump Boiler 380-415V With TUV
32KW Inverter Monoblock Heat Pump 380-415V Boiler Pump With TUV
| Model | BLN-032TA1 |
| Power supply V/Ph/Hz | 380-415/3/50 |
| Installation | Freestanding |
| Factory | Guangdong China |
A heat pump is one such product that will allow you to conserve energy and thus reduce your electricity bill effectively. It uses just electricity to transfer heat from one place to another instead of producing it directly.
SUNRAIN's heat pump water heaters have a COP (Coefficient of Performance) of 4.36, which means that 4.36 times as much energy is produced in the form of hot water as is consumed, which means you can save about 70% of your energy. This is made possible by several features that this water heater has. It is fitted with an efficient compressor that ensures faster heat transfer and more hot water, resulting in increased savings.
Water heaters with new energy-efficient heat pump technology are an efficient way to heat water, reducing energy use and saving you money on energy bills.
Product Parameters
| Model | BLN-032TA1 | ||
| Power supply | V/Ph/Hz | 380-415/3/50 | |
| Performance Condition: Outdoor air 7℃ / 6℃, Inlet / Outlet water 30℃ / 35℃ | |||
| Heating | Capacity (min-max) | kW | 14.5 ~ 36.3 |
| Rated input(min-max) | kW | 3.8 ~ 7.6 | |
| SCOP | 4.20 | ||
| Performance Condition: Outdoor air 7℃ / 6℃, Inlet / Outlet water 50℃ / 55℃ | |||
| Heating | Capacity | kW | 14.7 ~ 36.6 |
| Rated input | kW | 4.9 ~ 9.9 | |
| SCOP | 3.52 | ||
| Performance Condition: Outdoor air 35℃ / 24℃, Inlet / Outlet water 12℃ / 7℃ | |||
| Cooling | Capacity | kW | 6.2 ~24.5 |
| Rated input | kW | 5.1 ~ 11.4 | |
| EER | 2.96 | ||
| Energy class (SCOP) | Outlet water temp. at 35C | A++ | |
| Outlet water temp. at 55C | A++ | ||
| Max input current | A | 26.0 | |
| Max input power | KW | 12.8 | |
| Compressor | Type - Quantity/System | Twin Rotary - 1 | |
| Refrigerant | Type | R32 | |
| Charged volume | kg | 7.5 | |
| Fan | Quantity | 2 | |
| Airflow | m3/h | 7000 | |
| Rated power | W | 200 | |
| Noise level | Heating | dB(A) | 50 |
| Cooling | dB(A) | 51 | |
| Water flow volume | m3/h | 5.0 | |
| Water piping connections | mm | DN40 Male | |
| Operating temperature range | Cooling | C | -5 - 48 |
| Heating | C | -30 - 48 | |
| DHW | C | -30 - 48 | |
| Outlet water temperature range | Cooling | C | 5 - 25 |
| Heating | C | 25 - 55 | |
| DHW | C | 40 - 55 | |
| Net dimensions (WxDxH) | mm | 1127×427×1560 | |
| Packed dimensions (WxDxH) | mm | 1150X500X1720 | |
| Net/Gross weight | kg | 200/218 | |
Sample Project
We are based in Guangdong, China, start from 2012,sell to Domestic Market(85.00%),Western Europe(3.00%),Southeast Asia(3.00%),Southern Europe(3.00%),Northern Europe(2.00%),Africa(2.00%),North America(1.00%),South America(1.00%). There are total about 501-1000 people in our office.
2. how can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
heat pump water heater, air-source heat pump, swimming pool heat pump, inverter heat pump, EVI heat pump
4. why should you buy from us, not from other suppliers?
Sunrain is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 50 employees. Sunrain spent over 6 million RMB to build the most advanced labs.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Portuguese,German,French
