IRISS 50Hz 24K Mini Split Air Conditioner 16 seer ac unit 1985W
16 Seer Inverter Systems IRISS 50Hz 24K Trading Advanced Friendly Mini Split Air Conditioner
16 Seer Mini Split Inverter Systems IRISS 50Hz 24K
The Product Name includes the following features:
INDOOR UNIT 24K ( 220-240/1/50 ) :

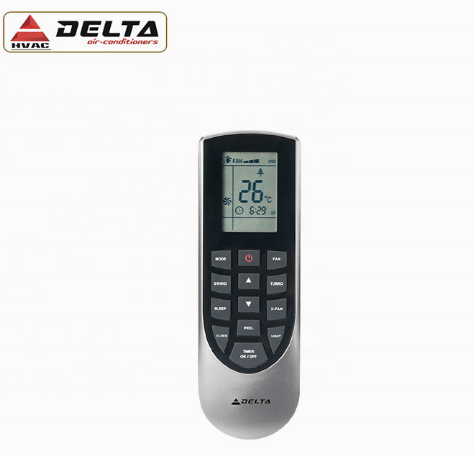

1. Wireless LCD Remote Control.
2. Auto Fan Settings.
3. Auto Restart.
4. Timer.
5. Sleep Mode.
6. Heat / Cool / Auto Modes.
7. Auto Swing (Vertical).
8. Turbo Cooling Function.
9. LED Display.
10. Cleanable Cartridge Filters.
11. Easy Indoor-to-Outdoor Unit Connections.
OUTDOOR UNIT 24K ( 220-240/1/50 ) :
1.Rotary Compressor.
2. Superquiet Operation.
3. 16.0 Seer in Cooling Mode.
4. High Efficiency Cooling.
5. Durable cabinet with protective coating.
Gold Fin( Optional ) :
It can improve the heating efficiency by accelerating the defrosting process,and also
be resistant to the salty air, rain, and other corrosive elements.
| INDOOR UNIT | ||
| INDOOR UNIT MODEL NO. | 26WG024I74-070DWG | |
| Cooling Capacity ((Btuh (kW)) | 24000 (6.45) | |
| Effciency EER (W/W) | 3.25 | |
| Refrigerant Control | Capillary tube@Outdoor unit | |
| Fan | Power Consumption (W) | 1985 |
| Type | Cross-flow | |
| Speed | 4 | |
| Air Flow (CFM)(m³/hr) | 590(1000) | |
| Sound Level (H/M/L) (dB(A)) | 62/46 | |
| Motor Output Power (W) | 35 | |
| Coil Type | Aluminum Fin-copper Tube | |
| Air Filter | Cleanable Cartridge Type | |
| Electrical | Power Supply (V/ph/Hz) | 220-240/1/50 |
| Full Load Amps FLA (A) | 0.24 | |
| Control Type | LCD Wireless Remote Control | |
| Refrigerant Connection | Refrigerant Connection | Flare |
| Liquid Line Dia. (in (mm)) | 1/4"(6.35) | |
| Suction Line Dia. (in (mm)) | 5/8"(15.88) | |
| Drain Line Dia. (in (mm)) | 3/4 (19) | |
| Dimensions | Height in (mm) | 315 |
| Width in (mm) | 4007 | |
| Depth in (mm) | 219 | |
| Net Weight (lb (kg)) | 28.7 (13) | |
| OUTDOOR UNIT | ||
| OUTDOOR UNIT MODEL NO. | 35HG024I74-070DMG(3C) | |
| Compressor Type | Rotary | |
| Number of Fans | 1 | |
| Sound Level (dB(A)) | 64 | |
| Coil Type: | Aluminum Fin-copper Tube | |
| Refrigerant Connections | Refrigerant Type | Flare |
| Liquid Line Dia. (in (mm)) | 1/4" | |
| Suction Line Dia. (in (mm)) | 3/8" | |
| Electrical | Power Supply (V/ph/Hz) | 220-240/1/50 |
| Compressor RLA (A) | 8.4 | |
| Compressor LRA (A) | 27 | |
| Minimum Circuit Amps (MCA) | 15 | |
| Max.Fuse Amp (MFA-MOCP) | 25 | |
| Refrigerant | Type | R410A |
| Quantity (oz (kg)) | 56.4 (1.60) | |
| Dimensions | Height (in (mm)) | 37.59 (955) |
| Width (in (mm)) | 27.55 (700) | |
| Depth (in (mm)) | 15.59 (316) | |
| Net Weight (lb (kg)) | 108 (49) | |
