Economical Residential Split Air Conditioner 1P With High Energy Class 3/8"
Price:
negotiate
MOQ:
50 sets
Delivery Time:
20-25days
Brand:
DELTA
Product Description
Economical 1 by 2 air conditioner with high energy class
Product Description
| Model No. | R32 12K | ||
| FOB USD | US$217.80 | ||
| Type | heating pump | ||

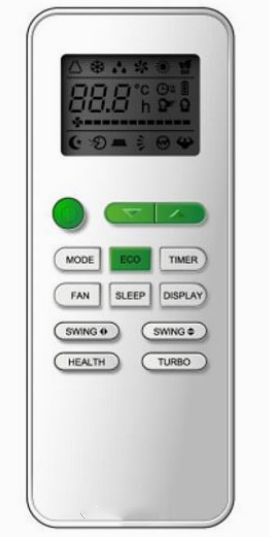

| Control type | remote controller | ||
| Declared cooling capacity | W | 3530(1080~3970) | |
| Declared heating capacity | W | 3680(1010~4280) | |
| Pdesignc | W | 3500 | |
| Pdesignh | W | 3000 | |
| SEER declared | W/W | 6.2 | |
| Energy Class | A++ | ||
| SCOP Average declared | W/W | 4.0 | |
| Energy Class | A+ | ||
| Annual energy consumption | Cooling | kwh/a | 198 |
| Heating | kwh/a | 1050 | |
| Moisture removal | Liters/h | 1.1 | |
| Indoor sound power(H/M/L/Mute) | dB(A) | 50/44/36/29 | |
| Outdoor sound power | dB(A) | 60 | |
| Indoor sound pressure(H/M/L/Mute) | dB(A) | 40/34/26/19 | |
| Outdoor sound pressure | dB(A) | 50 | |
| Electrical Data | |||
| Power supply | 220-240V~/50Hz/1P | ||
| Voltage Range | V | 165~265 | |
| Operating current | Cooling | A | 5.1(1.5~6.9) |
| Heating | A | 5.2(1.5~7.2) | |
| Power consumption | Cooling | W | 1094(290~1350) |
| Heating | W | 1025(290~1430) | |
| Refrigerating System | |||
| Refrigerant type/Charge/GWP/CO2 equivalent | R32/0.60kg/675/0.405tonnes | ||
| Compressor | Type | Rotary | |
| Model | 39W23MYJ&FJMD | ||
| MFG | RECHI | ||
| Indoor air circulation Cooling/heating | m3/h | 550/550 | |
| Indoor fan type | Cross Flow | ||
| Indoor fan model | 1170030067G | ||
| Indoor fan speed H/M/L/Mute | Cooling | rpm | 1150/950/850/700 |
| Heating | rpm | 1150/1000/900/800 | |
| Dry | rpm | 850 | |
| Sleep | rpm | 850/900 | |
| Indoor fan motor output | W | 20 | |
| Outdoor fan type | Propeller fan | ||
| Outdoor brand / fan model | GZSDJ-30(DC) | ||
| Outdoor fan speed | rpm | 840/760/660 | |
| Outdoor fan motor output | W | 33 | |
| Connections | |||
| Evaporator (dimensions/Øpipe/rows) | |||
| Condensor (dimensions/Øpipe/rows) | |||
| Connecting Wiring | Core x Size | 4×1.0mm² | |
| Expension device | Capillary | ||
| Connecting Pipe | Gas | Inches | 3/8" |
| Liquid | Inches | 1/4" | |
| Others | |||
| Application area | m² | 15~23 | |
| Max. refrigerant pipe length | m | 25 | |
| Max. difference in level | m | 10 | |
| Operation temperature range | ℃ | 16-31 | |
| Ambient temperature range | Outdoor | ℃ | Cooling:0-53/Heating:-15-30 |
| Indoor | ℃ | Cooling:17-32/Heating:0-30 | |
| Net dimensions | Indoor | mm | 777×250×205 |
| (W x H x D) | Outdoor | mm | 700×552×256 |
| Net weight | Indoor | kg | 8.5 |
| Outdoor | kg | 26 | |
| Packing dimensions | Indoor | mm | 848×315×275 |
| (W x H x D) w/o pipe | Outdoor | mm | 803×585×325 |
| w/i pipe | Outdoor | mm | 798x585x356 |
| Gross weight | Indoor | kg | 10.5 |
| Outdoor | kg | 29(w/o pipe) 30(w/i pipe) |
|
| Loading Capacity w/o pipe | 20'/40'GQ/40'HQ | 294 |
|
FAQ
1. Can I buy sample at first?
Yes.
2. Do you offer CKD/SKD?
Yes.
3. What is your MOQ?
1*40HQ usually, can be negotiated.
4.What is your payment term?
30% T/T in advance, balance before shipment.
L/C, other payment term can be negotiated.
5.Can you do OEM?
Yes.
