LUAN 60Hz Split 12k Btu Air Conditioner Cool Pump Inverter Seer 19
19 Seer Inverter Systems LUAN 60Hz Cool Pump 12K High quality Air Condition Mini Split Air Conditioners Air Conditioners Home
19 Seer Mini Split Inverter Systems LUAN 60Hz Cool Pump 12K
The Product Name includes the following features:
INDOOR UNIT 12K ( 208-230/1/60) :

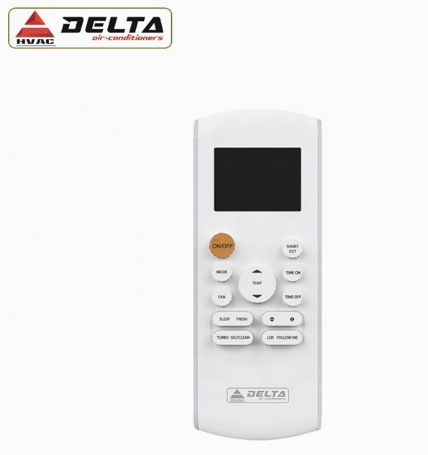

1. Wireless LCD Remote Control.
2. Auto Fan Settings.
3. Auto Restart.
4. Timer.
5. Sleep Mode.
6. Cooling / Heating / Auto Mode.
7. Cooling And Heat Pump.
8. Auto Swing (Vertical).
9. Turbo Cooling Function.
10. LED Display.
11. Cleanable Cartridge Filters.
12. Easy Indoor-to-Outdoor Unit Connections
OUTDOOR UNIT 12K ( 208-230/1/60 ) :
1.Rotary Compressor.
2. Superquiet Operation.
3. 19.0 Seer in Cooling Mode.
4. High Efficiency Cooling & Heating.
5. Durable cabinet with protective coating
Gold Fin( Optional ) :
It can improve the heating efficiency by accelerating the defrosting process,and also
be resistant to the salty air, rain, and other corrosive elements.
|
INDOOR UNIT
|
||
|
INDOOR UNIT MODEL NO.
|
27WL012J24 | |
|
Cooling capacity (range)(Btu/h)
|
12000(3700~13000) | |
|
Cooling input (W)
|
1065 | |
|
Cooling rated current (A)
|
4.5 | |
|
Cooling EER (Btu/w)
|
11.3 | |
| Heating |
Capacity (range)(Btu/h)
|
12000(3500~13500) |
|
Input (W)
|
1025 | |
|
Rated current (A)
|
4.3 | |
|
COP (W/W)
|
3.45 | |
|
HSPF4
|
10 | |
|
HSPF5
|
8 | |
|
Minimun ciruit ampacity (A)
|
3 | |
|
Max.fuse (A)
|
15 | |
|
Cooling SEER (Btu/w)
|
19.5 | |
|
Compressor brand
|
GMCC | |
|
Power supply (V/Ph/Hz)
|
208/230V,1Ph,60Hz | |
|
Indoor fan motor mode
|
ZKFP-20-8-6-7 | |
|
Indoor fan motor input (W)
|
50 | |
|
Indoor fan motor RLA (A)
|
0.25 | |
|
Indoor fan motor speed (Hi/Mi/Lo) (r/min)
|
1100/900/750 | |
|
Indoor air flow (Hi/Mi/Lo)(m3/h)
|
550/480/360 | |
|
Indoor air flow (Hi/Mi/Lo)(CFM)
|
323.53/282.35/211.76 | |
|
Indoor noise level (Hi/Mi/Lo)(dB(A))
|
38/32/24 | |
| Dimension |
WxDxH (mm)
|
802x189x297 |
|
WxDxH (inch)
|
31.57x7.44x11.69 | |
|
Packing (WxDxH)(mm)
|
875x285x380 | |
|
Net/Gross weight (Kg)
|
8.6/11.3 | |
|
OUTDOOR UNIT
|
||
|
OUTDOOR UNIT MODEL NO.
|
37HL012J24(3C) | |
|
Outdoor fan motor speed (Hi/Mi/Lo) (r/min)
|
800/750/650 | |
|
Design pressure (PSIG)
|
550/340 | |
|
Qty’per 20’ /40’ /40'HQ
|
84/178/214 | |
| Refrigerant piping |
Liquid side/ Gas side (mm/inch)
|
6.35mm(1/4in)/12.7mm(1/2in) |
|
Max. refrigerant pipe length (m)
|
25 | |
|
Max. refrigerant pipe length (ft)
|
82.02 | |
|
Max. difference in level (m)
|
10 | |
|
Max. difference in level (ft)
|
32.81 | |
| Connection wiring | 16AWG*4 Stranded, unshielded | |
|
Thermostat type
|
Remote Control | |
|
Outdoor noise level (dB(A))
|
55 | |
|
Room temperature outdoor(cooling/heating) (℃)
|
-15~43/-25~30 | |
|
Room temperature outdoor(cooling/heating) (℉)
|
5~109.4/-13~86 | |
|
Refrigerant type (oz)
|
R410A/0.84 | |
| Dimension |
WxDxH (mm)
|
800x333x554 |
|
WxDxH (inch)
|
31.50x13.11x21.81 | |
|
Packing (WxDxH)(mm)
|
920x390x615 | |
|
Net/Gross weight (Kg)
|
30.4/33 | |
