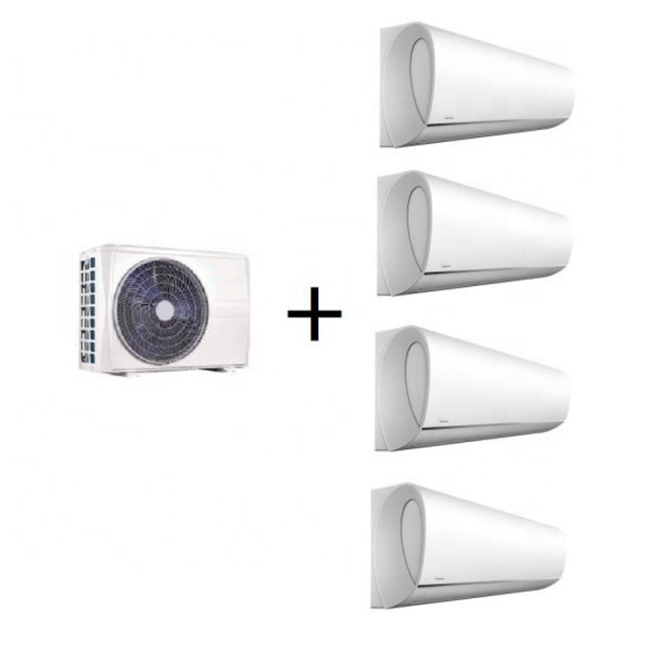

Centralized Controller 1000 m Multi Split Air Conditioner 12HP
Price:
Negotiate
MOQ:
50 sets
Delivery Time:
15-20dys
Brand:
DELTA
Product Description

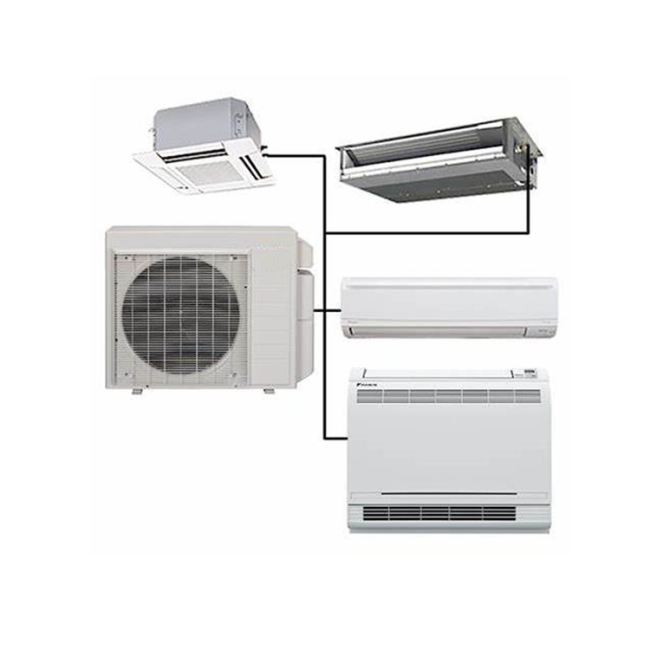

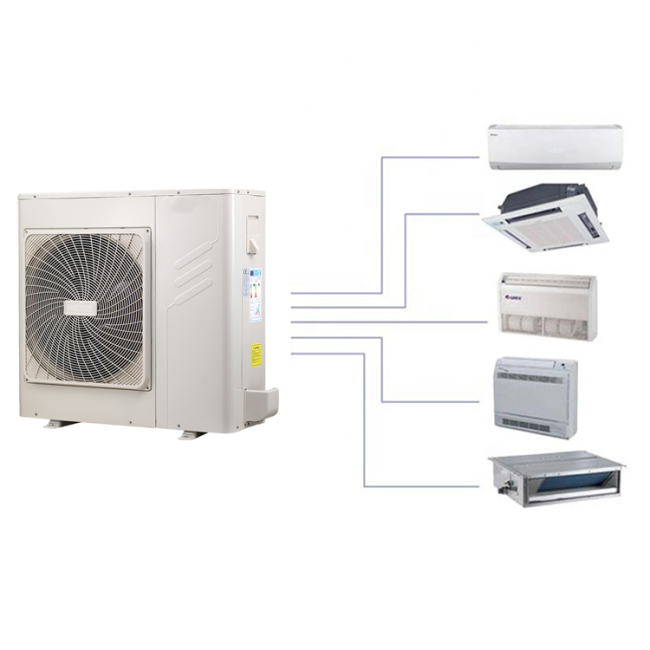

Multi Split Air Conditioner With Details Parameter
Our Advantages
LONG PIPE & HEIGHT DIFFERENCE
1.The total pipe length: 1000 m.
2.The longest pipe length: 200 /240m.
3.Height deference:Outdoor unit. Above<90m<90m.
![]()
![]()
![]()
2.The longest pipe length: 200 /240m.
3.Height deference:Outdoor unit. Above<90m<90m.
4.Outdoor unit below<110m.
5.Height difference between indoor units: 30m.
6.Length from first indoor distributor to last indoor unit 90 m.
7.Communication wire length can be upto 1000m.
5.Height difference between indoor units: 30m.
6.Length from first indoor distributor to last indoor unit 90 m.
7.Communication wire length can be upto 1000m.
Specification
|
Type
|
Mini VRF
|
Large VRF
|
||
|
Capacity
|
HP
|
3HP-12HP
|
8HP-22HP
|
|
|
Power supply
|
V/Ph/Hz
|
220-240V/1PH/50Hz
208-230V/1PH/60Hz 380-415V/3PH/50Hz & 60Hz |
208-230V/3PH/60Hz
380-415V/3PH/50Hz & 60Hz |
|
|
Cooling
|
Capacity
|
kW
|
8KW~33.5KW
|
25.2KW-61.5KW
|
|
kBtu/h
|
27.3-60kBtu/h
|
86-209.8kBtu/h
|
||
|
Power input
|
kW
|
5.78-14.4KW
|
17-27.65KW
|
|
|
EER
|
kW/kW
|
3.32-3.69
|
3.02-4.72
|
|
|
Heating
|
Capacity
|
kW
|
9KW-37.5KW
|
27.4KW-69KW
|
|
kBtu/h
|
92-191kBtu/h
|
215-341kBtu/h
|
||
|
Power input
|
kW
|
5.41-14KW
|
15.8-26.08KW
|
|
|
COP
|
kW/kW
|
3.56-4.27
|
4.11-5.5
|
|
|
Comperssors
|
Type
|
-
|
DC inverter
|
|
|
Fan motors
|
Type
|
-
|
DC inverter
|
|
|
Max.ESP
|
Pa
|
85
|
85
|
|
|
Refrigerant
|
Type
|
R410A
|
||
|
Aiflrow rate
|
m³/h
|
3300-8000
|
15000-17000
|
|
|
dB(A)
|
45-60
|
58-63
|
||
|
Ambient temp
|
Cooling
|
℃
|
-5-50℃
|
-5-55℃
|
|
Heating
|
℃
|
-20-30℃
|
-30-30℃
|
|
CONTROLLERS AND SOFTWARE
SIMPLIFY CENTRALIZED CONTROLLER
Easy to install.Controller connects to outdoor units only.
1 Controller can control max. 100 indoor units.
Operation mode restriction
Error or protection code display
Can control single unit or all units together
1 Controller can control max. 100 indoor units.
Operation mode restriction
Error or protection code display
Can control single unit or all units together
