Central Dc Inverter Vrf Air Conditioning System For Hotel Office Department
Price:
Negotiate
MOQ:
50 sets
Delivery Time:
20-25days
Brand:
DELTA
Product Description
Central Air Conditioning System Dc Vrf Inverter Air Conditioner For Hotel Office Department
Specification:
The Series full DC Inverter VRF system from 8HP to 28HP
| TMV-Vd...W/N1S-C | 252 | 280 | 335 | 400 | 450 | 504 | 560 | ||
| Cooling capacity | (kW) | 25.2 | 28 | 33.5 | 40 | 45 | 50.4 | 56 | |
| Heating capacity | (kW) | 27 | 31.5 | 37.5 | 45 | 50 | 56 | 63 | |
| Cooling consumed power | (kW) | 5.4 | 6.9 | 8.7 | 10.7 | 12.85 | 14.15 | 16.2 | |
| Heating consumed power | (kW) | 5.8 | 7 | 8.75 | 10.8 | 12.25 | 14.3 | 15.7 | |
| IPLV | (W/W) | 9.5 | 9.3 | 9.1 | 8.9 | 8.75 | 8.60 | 8.55 | |
| APF | W.h/(W.h) | 5.1 | 5 | 4.9 | 4.8 | 4.7 | 4.6 | 4.5 | |
| Compressor type | - | DC Inverter Scrooll Compressor | |||||||
| Dimension(W*H*D) | (mm) | 930*1740*780 | 1310*1740*780 | ||||||
| Fan | Type | Propeller fan | |||||||
| Air Volume | m³/h | 11000 | 11000 | 11500 | 13500 | 14000 | 15500 | 19000 | |
| Levels | Stepless speed regulation | ||||||||
| Pipe | Gas side | (mm) | 25.4(Welding) | 28.6(Welding) | |||||
| Liquid side | (mm) | 12.7(Welding) | 15.88(Welding) | ||||||
| Net Weight | Kg | 225 | 225 | 235 | 270 | 270 | 330 | 350 | |
| Refrigerant | Type | R410A | |||||||
| Control method | Electronic expansion valve | ||||||||
| Quantity(kg) | 9 | 9 | 10 | 13 | 13 | 14 | 14 | ||
| Running noise | dB(A) | 58 | 58 | 58 | 60 | 61 | 61 | 63 | |
Product Description

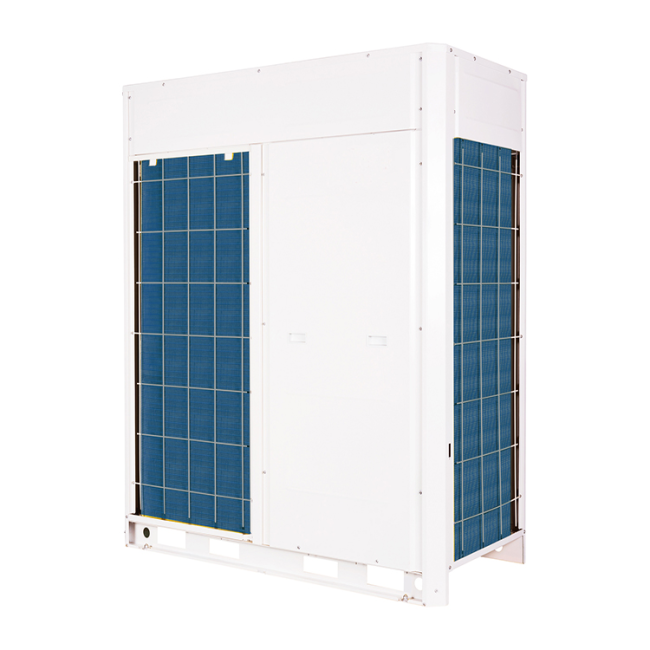

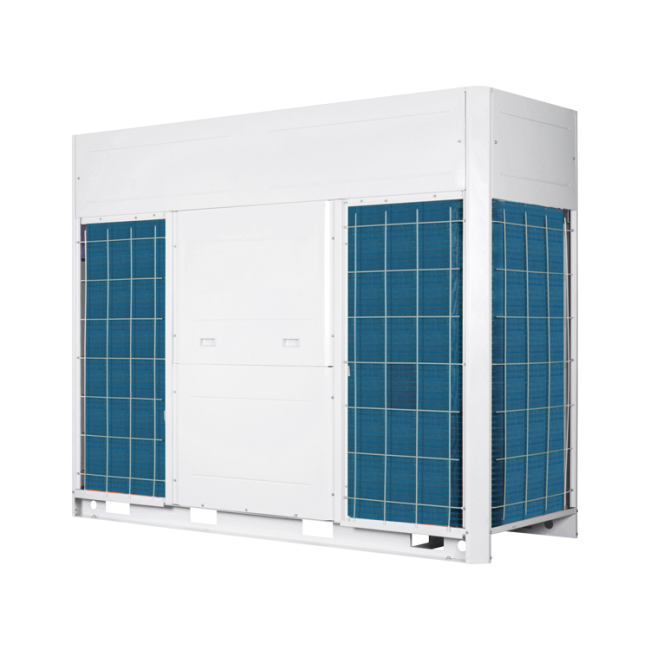

Condensing Unit Modular Type
-DC inverter, R410a gas
-Power supply: 380~415V/3Ph/50Hz
-Modular outdoor units design:
6 basic modules: 8HP, 10HP, 12HP 14HP, 16HP and 18HP.
Free combination of outdoor units
Max capacity of combination up to 72HP(200kw)
-Wide operation temperature range:-20C~50C
-Stable cooling or heating performance
-Low noise operation
-Anti snow function, intelligent defrosting.
-Intelligent defrosting
-Longest pipe 200 meters, Max height difference: 70 meters.
-DC inverter, R410a gas
-Power supply: 380~415V/3Ph/50Hz
-Modular outdoor units design:
6 basic modules: 8HP, 10HP, 12HP 14HP, 16HP and 18HP.
Free combination of outdoor units
Max capacity of combination up to 72HP(200kw)
-Wide operation temperature range:-20C~50C
-Stable cooling or heating performance
-Low noise operation
-Anti snow function, intelligent defrosting.
-Intelligent defrosting
-Longest pipe 200 meters, Max height difference: 70 meters.
All DC Inverter
New generation DC inverter compressor, high efficiency, large capacity and wide operation range.
DC fan motor, optimized designed fan blade and wind scooper, enhance the air flow volume and reduce the noise.
High Efficiency
Plate Heat Exchanger (PHE) Subcooling
High Efficiency G-Type Heat Exchanger
Super big size fan
Indoor units:can work with cassette type,duct type,wall mounted type,ceiling&floor type,for you choose.
